PGT window channel balances

Start a new Discussion

Quick Learner from Palmetto, FL

Dec 19, 2020 12:09 pm

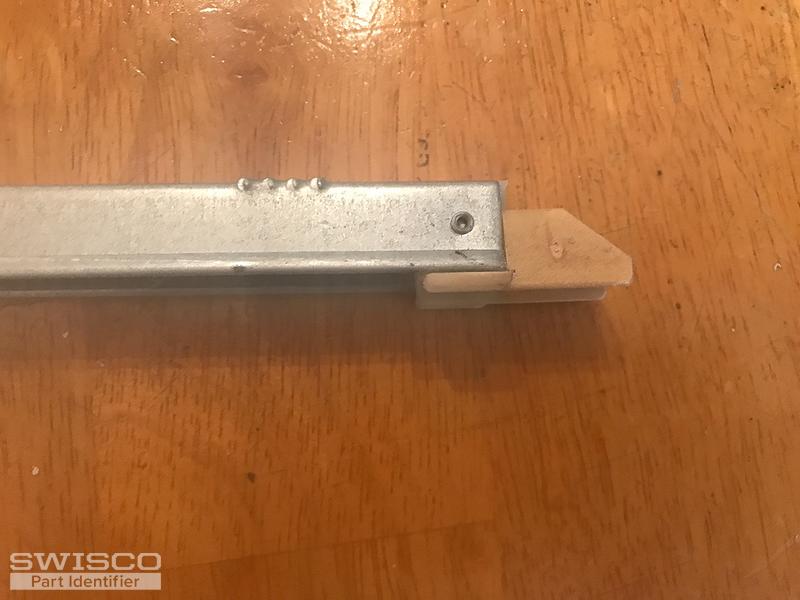

Single sash weighs 22 pounds. marks on balancer 29 4 FX CMC 7 at channel length of 30 in

4 user uploaded images

4 Replies

Tom from SWISCO

Dec 21, 2020 1:07 pm

This balance looks like a match for our S395-30, which comes with a 19-005 top and 15-001 bottom nylon fitting. As long as those fittings match up then you should be good to go.

Quick Learner from Palmetto, FL

Dec 22, 2020 2:59 pm

When ordering this part on your site it is asking me for a required option. I am not sure what option to check. Thanks

Tom from SWISCO

Dec 23, 2020 8:27 am

The option is based on your stamp, which is 29 4 in your case. A 29 4 stamp corresponds to our 2940.

Let me know if you had any other questions.
