PLASTIC SPRING RETAINER AT BOTTOM OF TRACK ON DOUBLE SASH TILT WINDOWS

A quick learner from MICHIGAN says:
September 27, 2017
RETAINER HOLDING SPRING IN PLACE BY SINGLE SCREW IS CRACKED AND NEEDS REPLACEMENT. CRACKED AT THREADED HOLE FOR SCREW. NOW SCREW WONT STAY IN.

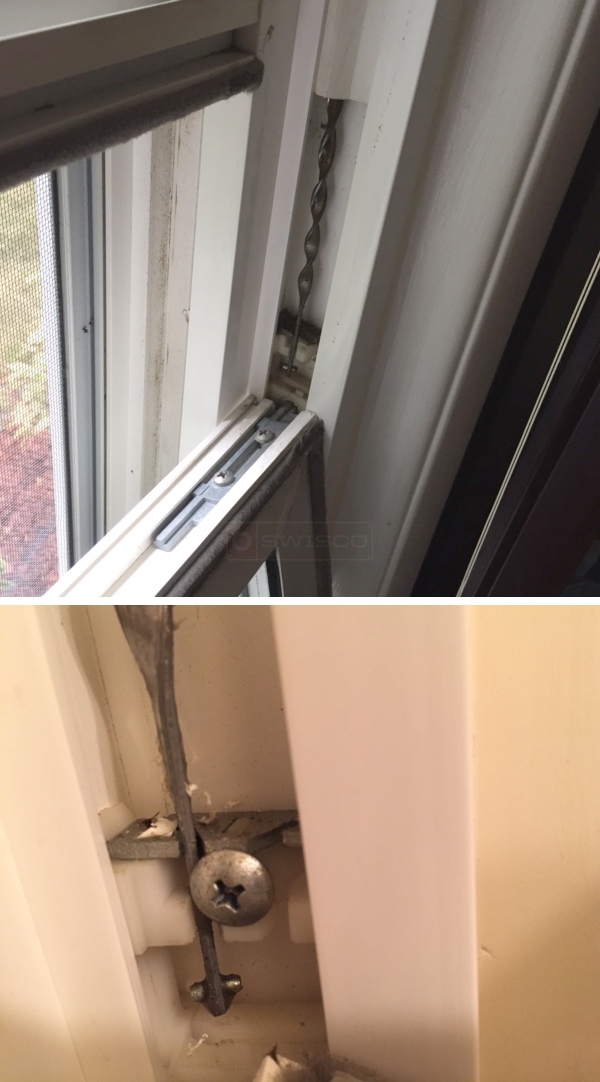

User submitted photos of window hardware.
A quick learner from MICHIGAN says:
September 27, 2017
I THINK THIS PART IS CALLED A Bottom Sash Spiral Balance Clip. IT RETAINS THE SPIRAL SPRING

Profile picture of Paul
Paul from SWISCO responded:
October 2, 2017
The screw in your window pivot shoe is an additional security method to secure the spiral from the Series 600 tilt balance from coming out. Your balance and pivot shoe will work without it. Many vinyl window companies don't include a screw with the pivot shoe. If your window is operating with no problem, I would leave it alone right now.
A quick learner from Howell Mi. says:
October 2, 2017
Great, thank you so much. The window works fine. I was concerned when the screw fell out but again, the window operates just fine so I'll leave it alone!
