PLYGEM CASEMENT HARDWARE; Folding Handle & Cover

Start a new Discussion

Contractor from MD

May 19, 2022 1:28 pm

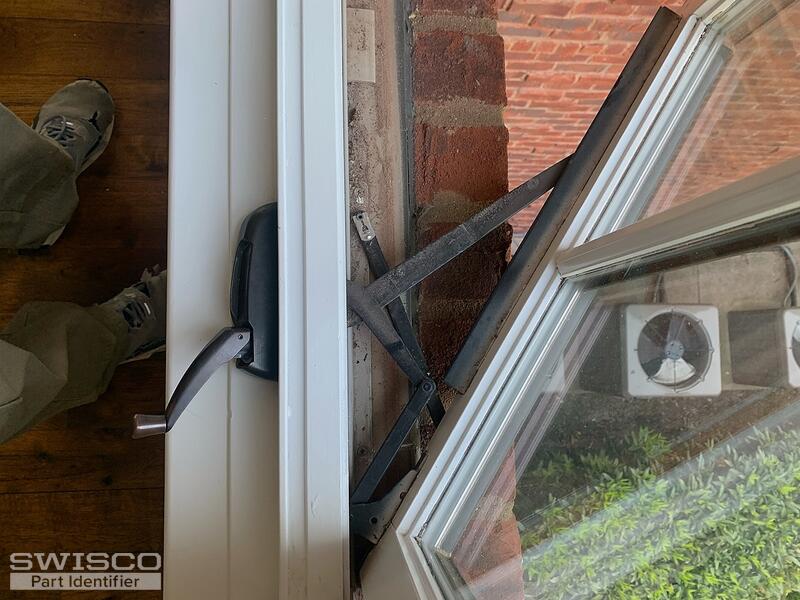

Does 39-375 fit PLYGEM MIRA casement window (manufactured 3/21)?
Likewise 39-376 for opposite hand window.

2 user uploaded images

8 Replies

Tom from SWISCO

May 23, 2022 11:28 am

Your operator looks like a Truth Encore brand part, but it's tough to say without seeing the whole thing. As long as it is a Truth brand operator then the 39-375 and 39-376 should work just fine.

Quick Learner from Nashville tn

May 24, 2022 7:56 am

This is Truth. Is it Encore?

2 user uploaded images

Tom from SWISCO

May 24, 2022 12:03 pm

Thanks for these new photos! Yes, I believe this is a Truth Encore operator.

Contractor from MD

Jun 14, 2022 1:56 pm

I have the PLYGEM windows (first post on this thread) and purchased the 39-375 & -376 items. The escutcheon seems to fit well but the handle spline/hole is too small to install on the operator splined nub. Do you have a similar component handle with a larger splie/hole?

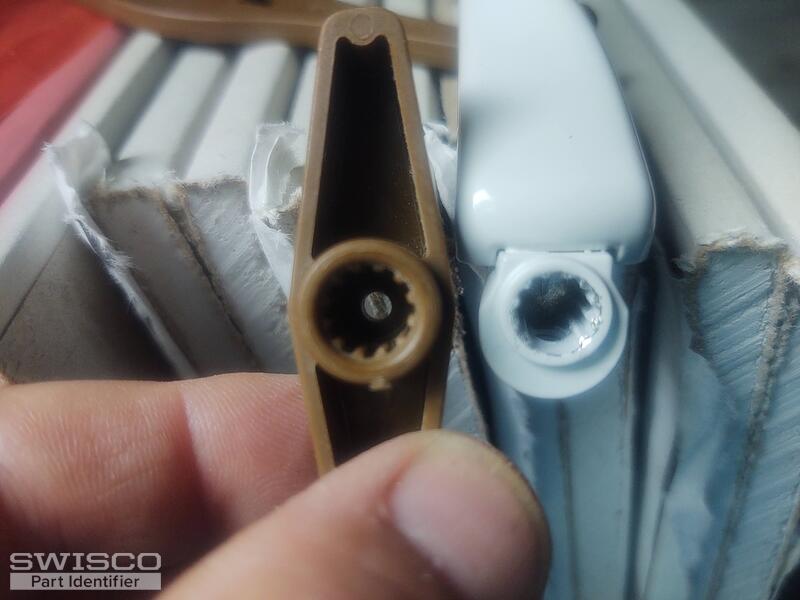

The brown, plastic construction handle (larger spline) is on the left. The 39-376 (smaller spline) is on the right.

1 user uploaded image

Tom from SWISCO

Jun 16, 2022 8:36 am

I'm afraid that we don't have a version of the 39-375 and 39-376 with a smaller spindle size. Are you sure your operator matches the first post in this thread? I've never actually seen a handle in your style before, so you may have something entirely different, even if it may look similar at first.

Before we go any further, can you give me the exact diameter of your current spindle, compared to our 11/32"? Can you also show me a photo of your operator?

Contractor from MD

Jun 16, 2022 3:49 pm

My operator spindle is LARGER than the 39-375/376 so the SWISCO part will not go on.
I am the first post in teh thread as well as the one you are questioning.
I will get more pics tomorrow.

Tom from SWISCO

Jun 17, 2022 8:12 am

Ah, I see. I'm sorry for misunderstanding.

At this point I'm not sure if more pictures would help. Your photos above show me what kind of operator you have perfectly well. However, according to our database these operators all take an 11/32" spline, which is exactly what our 39-375 and 39-376 have. Truth never made any other size. They only do 11/32", without exception. I'm not really sure why these aren't fitting for you.

I think the most important thing to get right now is the exact diameter of the hole of your original handle.
