Pacesetter door handle

Home Owner from California

Jul 14, 2015 4:27 pm

I have a Pacesetter sliding glass door with a broken handle. I am trying to find a replacement. I hope the measurements make sense. The lock is in the center of the plate.

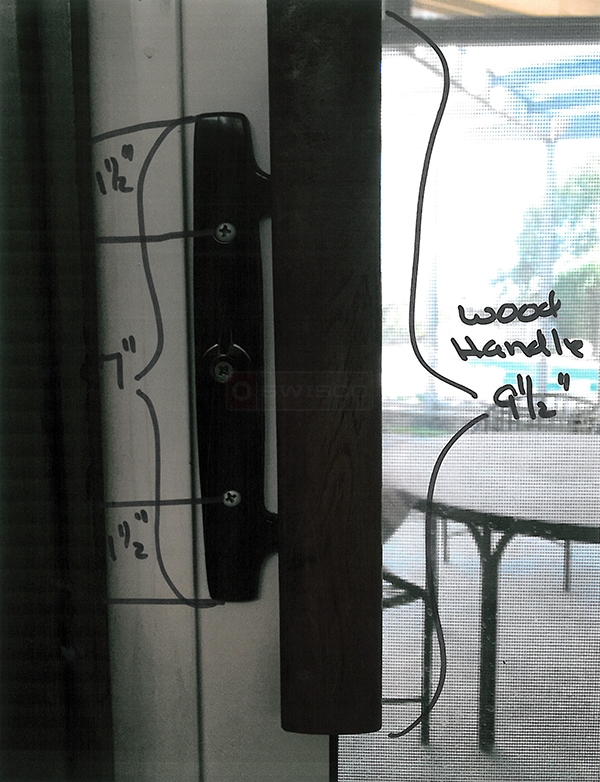

User submitted a photo of a patio door handle.

5 Replies

Tom from SWISCO

Jul 15, 2015 1:43 pm

Thanks for posting. You gave great dimensions, but the most important one is the distance between the hole centers. Can you confirm that this is 3-15/16"? Could I also see how the door handle locks? I'm not sure if it uses a mortise lock or a hook built into the handle.

Home Owner from California

Aug 11, 2015 1:50 pm

Yes, it is 3-15/16". It looks like your product code 82-003 and has the same type of lock. The door itself is 1-1/2" thick but the opening for the lock is 1".

Tom from SWISCO

Aug 11, 2015 3:23 pm

Thank you! Yes, our 82-003 may be a good match. That's a thick, door though. You may need to re-use your old locking latch.

Home Owner from California

Aug 11, 2015 4:37 pm

Thank you.
