Paella window balance springs

Home Owner from 21742
Hello,

I hope you're having a nice day.

I'm looking to replace the balance springs on the Pella windows, but I don't know where to go to find them.

The contractor told me these were good quality windows, but the spring broke on the first time I tried to open any of the windows.

I didn't bother calling the contractor back because clearly they were either installed incorrectly or were really low quality in the first place, or both.

If you have something that would work, I would be willing to try it out. If it fails again, the windows are going to be replaced.

I'm interested in a couple of sets of higher quality replacement springs, if you can provide some.

If you don't have anything, my only choice might be to replace the entire window and sash.

Thanks for your help, have a wonderful day!

Steve.
3 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there, Steve.

Thanks for reaching out to us. You shouldn't have to replace the window if the balances are all that's broken. In order to help, I will need to see a photo of the pivot shoe removed from the window track. That will allow me to identify the compatible balance hardware. If there aren't any cutouts in the window already then you will need to make one as shown in the video below. Could you also weigh the window sash and tell us the precise weight?

Home Owner from 21742

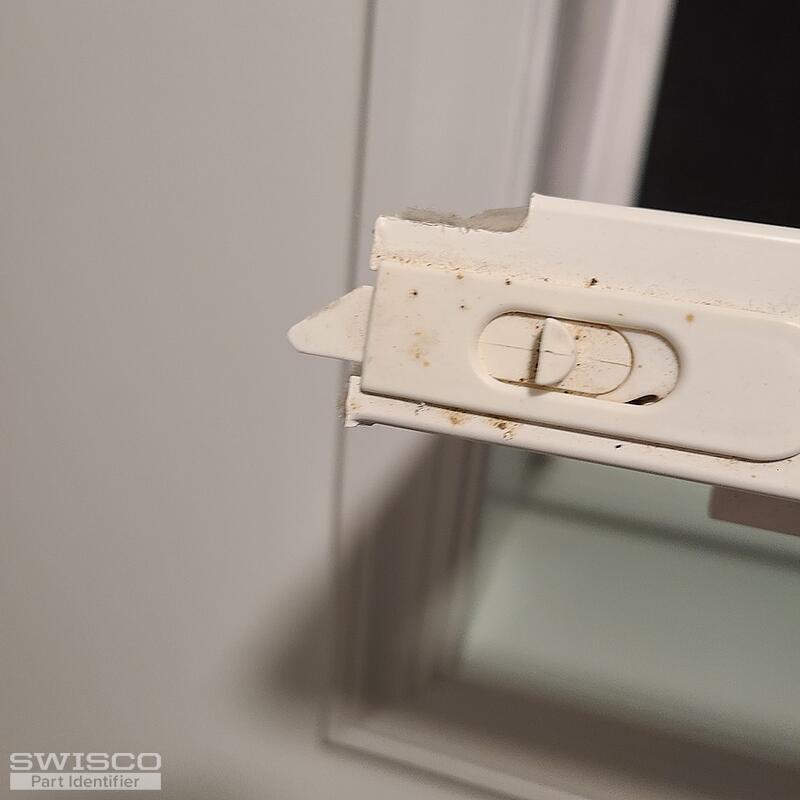

Thanks for your help! When I put the window and out it weighs 7 lb 3.75 Oz. It looks like I also need a latching mechanism for latching the sash into the frame. Thanks again for your help, have a wonderful day!

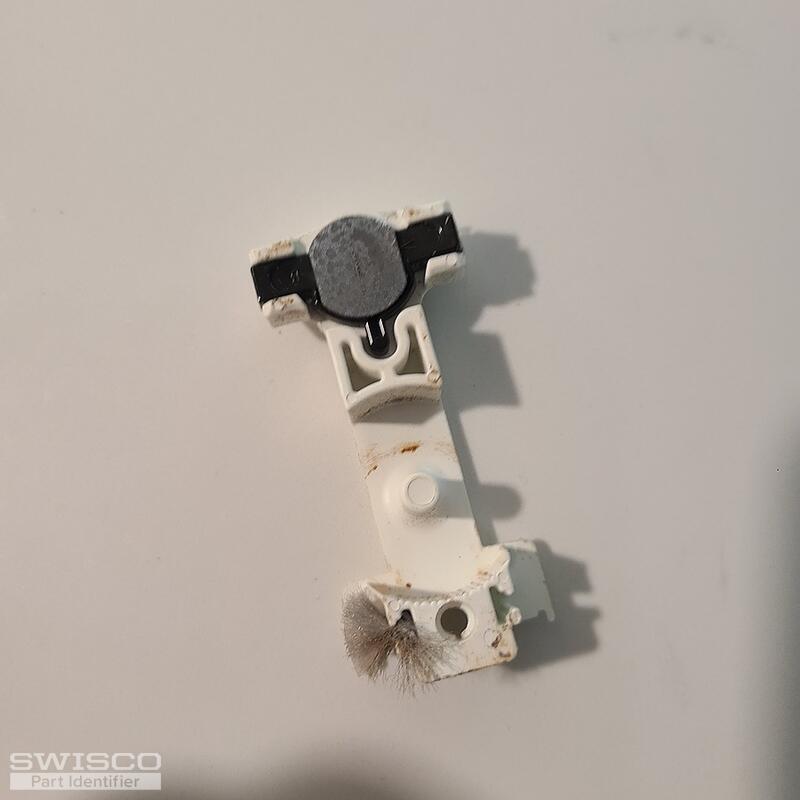

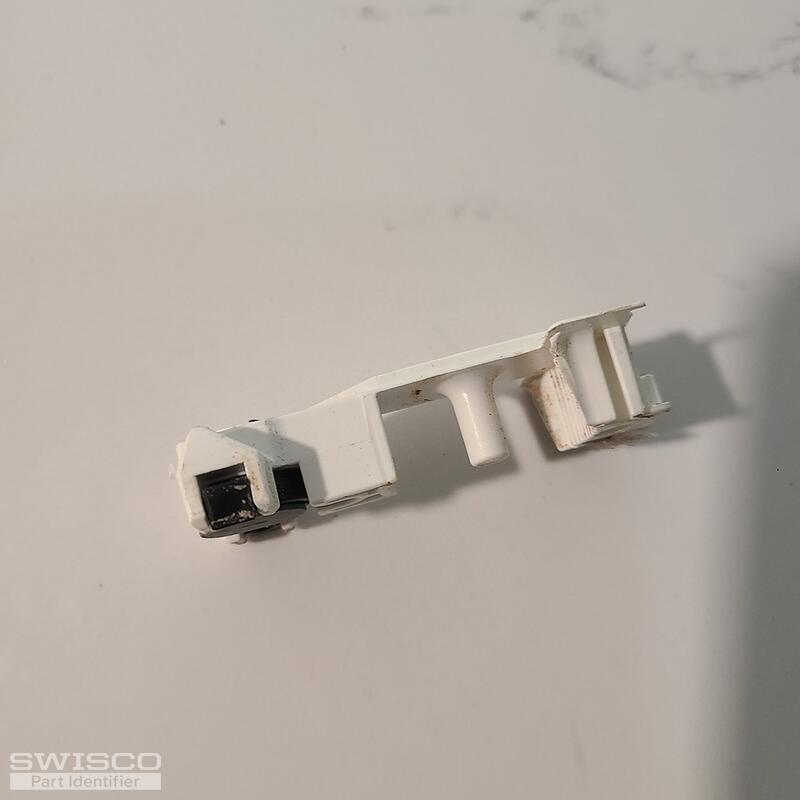

5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

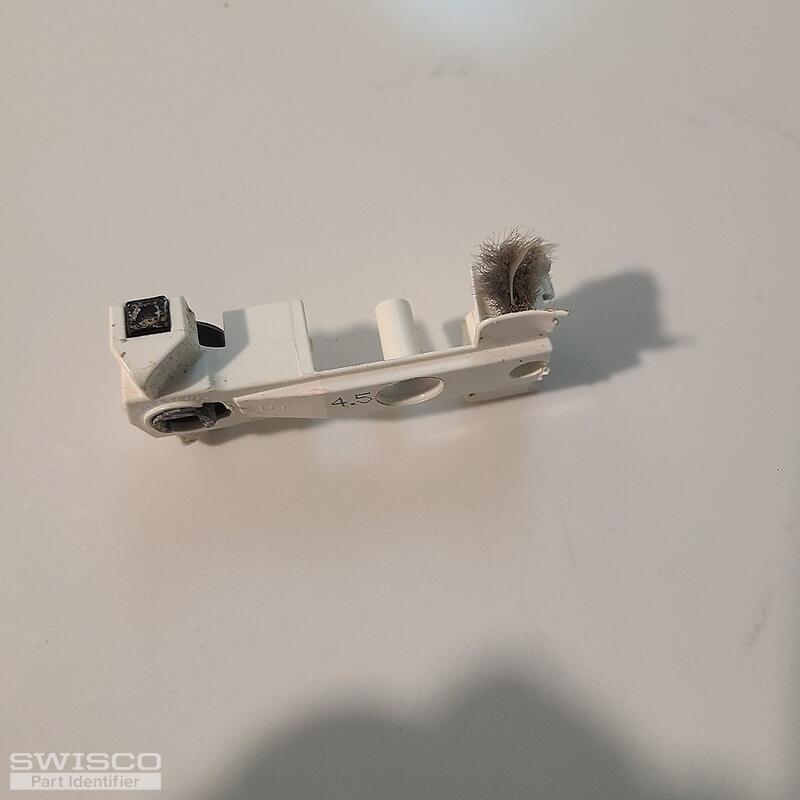

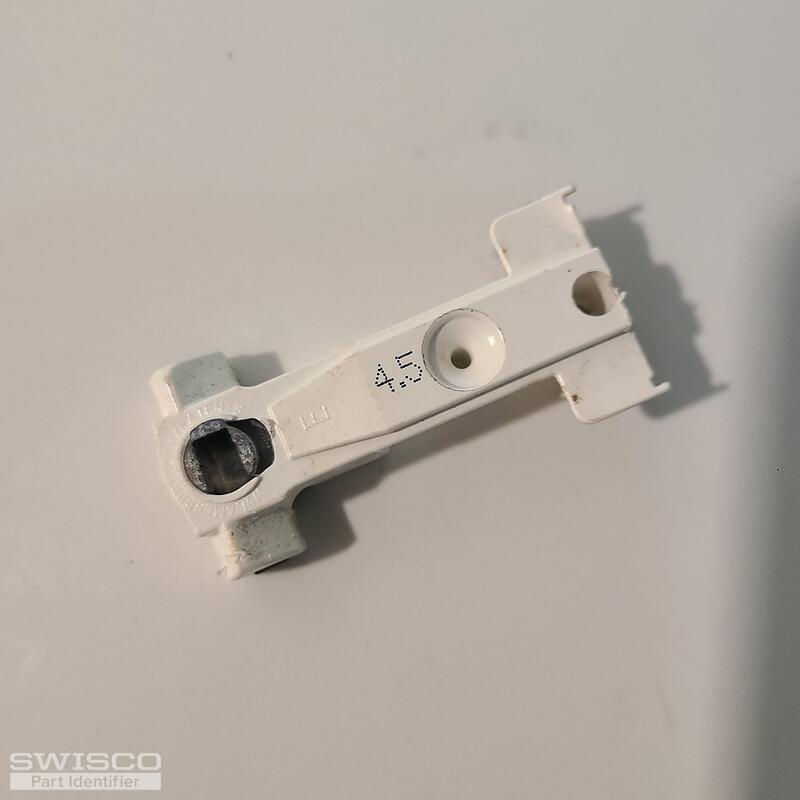

This reminds me of our 15-251 that uses the Series 160 coil springs. Note that it looks like your balance is stamped 4.5 which indicates the spring weight. One 4.5-pound spring on each side of the window is meant to support a sash weighing 9 pounds which would be too strong for the sash weight you've given. You could always double-check the sash weight if you wanted to be safe. However, with a 7-pound sash, you can use one S160-3 3.5-pound coil spring on each side of the window. This will total 7 pounds of overall support.

As for the tilt latch, start by taking a look at the 26-464. Review the specifications and see how they compare with yours.
