Could someone tell me what the product number is for a 3-in pivot bar? I need the replacements for about four of my paradigm windows.
Length is 3"
Width is 1/4"
Depth is 1/8"
And there is 1" between holes
Paradigm window pivot bar
Quick Learner from Maine
Sep 19, 2023 3:54 pm
2 user uploaded images
10 Replies
Emily from SWISCO
Sep 20, 2023 3:48 pm
Hello there!
Thank you for reaching out to us. I'm sorry to say that I don't recognize this pivot bar. Would it be possible to see a photo of the pivot shoe it interacts with? That may help with our search.
Quick Learner from Maine
Sep 21, 2023 11:59 am

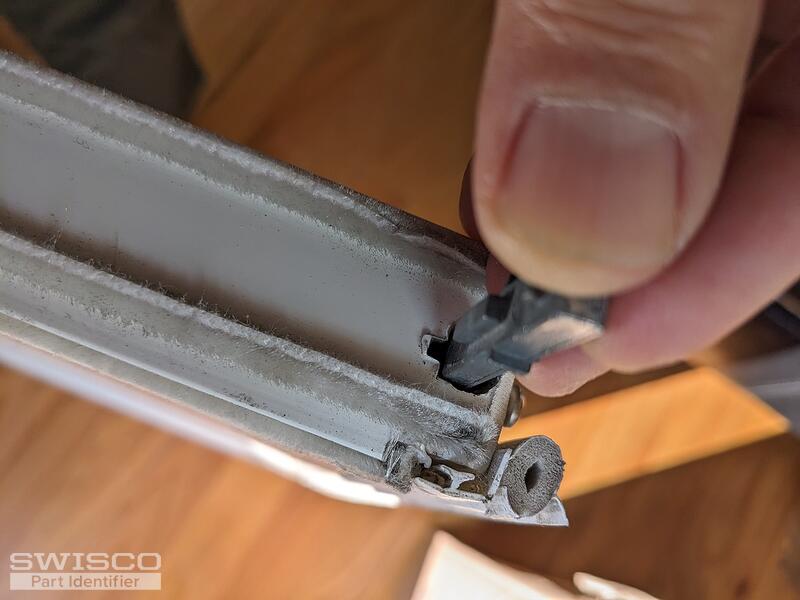

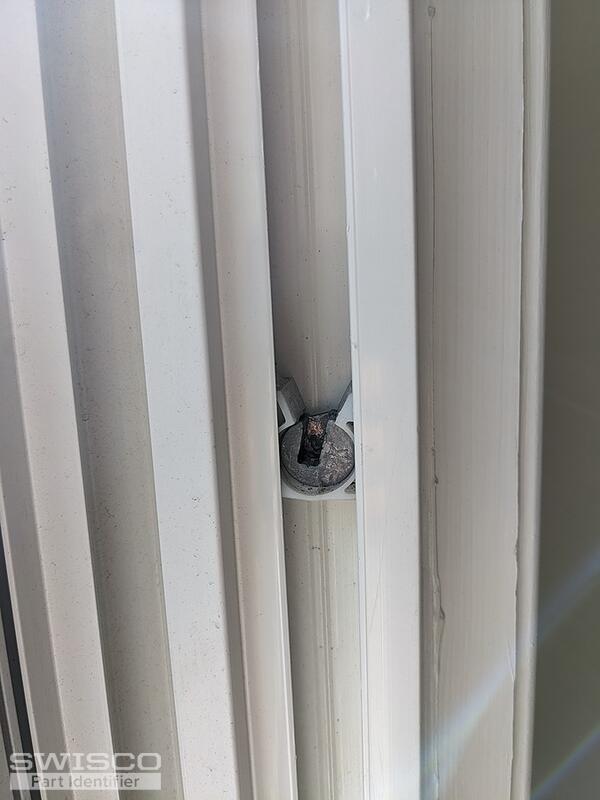

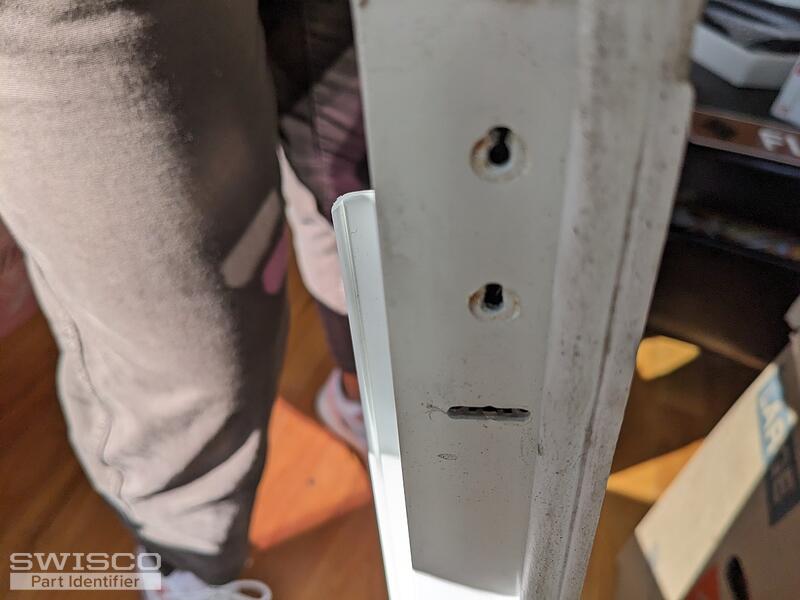

4 user uploaded images
Emily from SWISCO
Sep 22, 2023 8:49 am
Thanks for the additional photos. I'm going to consult one of our senior experts and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.
Paul from SWISCO
Sep 22, 2023 9:07 am
I believe our 26-415 should work for you. Take a look at the specifications and see how they compare with yours.
Alternate image for 26-415
Quick Learner from Maine
Sep 22, 2023 9:22 am
I think those measurements would work; my concern is that I do not see that little rectangular piece at juts out. Isn't that key to fitting/locking it into the pivot boot?
Paul from SWISCO
Sep 22, 2023 10:54 am
Yes, but I don't feel it is critical in the operation of the pivot bar with the pivot shoe.
Quick Learner from Maine
Sep 22, 2023 11:26 am
Ok. Thank you very much!
Handy Person from Rindge, NH
Nov 9, 2023 10:47 am
Would this pivot bar fit my Paradgim windows? I have two broken pivot bars.
Tom from SWISCO
Nov 10, 2023 11:31 am
I'm sorry to say I don't have any records of what pivot bars Paradigm windows used, specifically. I won't be able to verify that information based on name alone.
My recommendation would be to compare the dimensions and design for the pivot bar we show above to your original piece. If they differ in any way, I'll need photos and measurements of your part so that we can find you a better match.
