Channel Balance Identification

A home owner from Fallbrook, CA says:
September 29, 2021

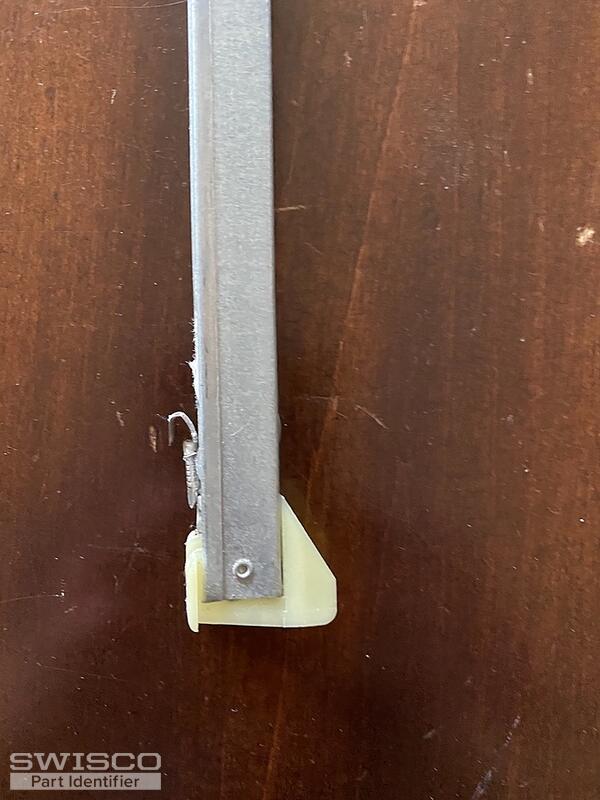

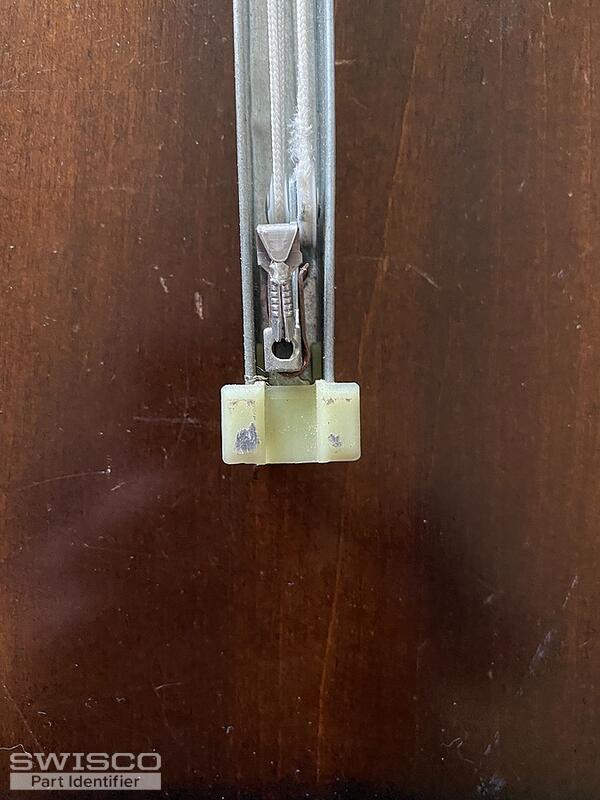

26-5 JH5 CMC 50
Thumbnail of the uploaded file named EF62777D-D23F-4872-A0E3-860609FAAAB5.jpeg
Thumbnail of the uploaded file named 0D5B2A94-18C4-4616-A3F7-B27B1D20D8A8.jpeg
Thumbnail of the uploaded file named 9F956BAF-34AC-4AF5-8694-9BBCFAF588F2.jpeg
Thumbnail of the uploaded file named B424C724-F8D8-4300-98DE-1677D31FEAD1.jpeg
Thumbnail of the uploaded file named 582A6A3A-9793-47CA-800C-F3CCAEEF39FB.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
October 4, 2021

Hello, thank you for posting!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Please confirm that the length of your channel is 27" and based on your stamp number, option 2650 will be needed.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
