Part #1060-1540 with this lock

A quick learner says:
February 8, 2021
Part #1060-1540
I need the entire handle with this lock.
I ordered the suggested handle and it does not work because this lock is too wide I am going to have to return the handle because it does not work
Thumbnail of the uploaded file named 20210208_075447.jpg
Thumbnail of the uploaded file named 20210208_075505.jpg
A quick learner from Tennessee says:
February 8, 2021
Here's more photos of the locking mechanism.
I need help with a new one.
This part number is 1060-1540 from Sash Controls in Detroit, MI
Thumbnail of the uploaded file named 20210208_080017.jpg

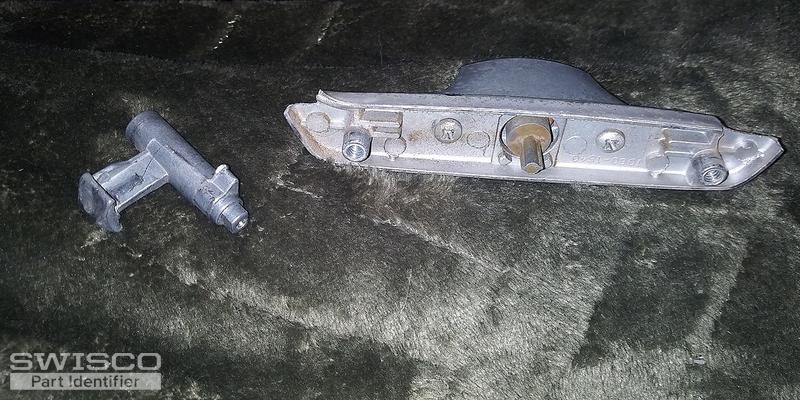

Thumbnail of the uploaded file named 20210208_075958.jpg

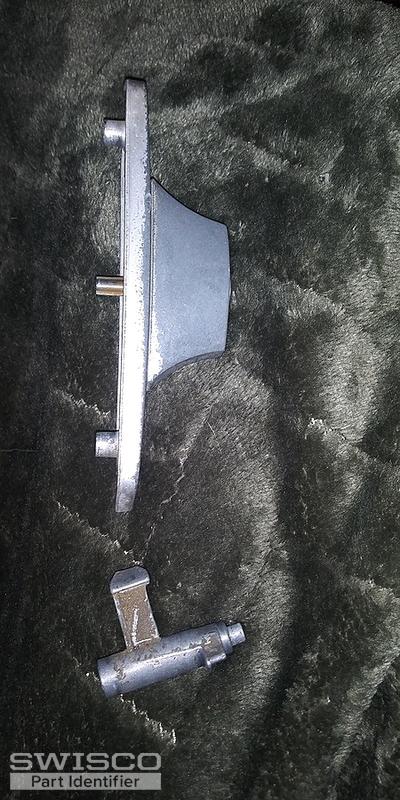

Thumbnail of the uploaded file named 20210208_075931.jpg
Profile picture of Paul
Paul from SWISCO responded:
February 11, 2021

Hello,

For Acorn patio doors, we carry the 82-055K handle set, which comes with a key lock. The screw holes are 3-1/2" apart. The inside locking mechanism you show in the first sets of photos is 1-5/8" long. Take a look and let us know fi you have any other questions!
A quick learner from Ocala FL 34481 says:
January 19, 2024
Handle holes are 3 15/16 Center to Center
Machine screws are 10-24 by 1 1/4
handle has a lever lock
original handle made in about 2006
SASH Controls INC 1540
home built by Del Web in 2007








'
door has lever lock

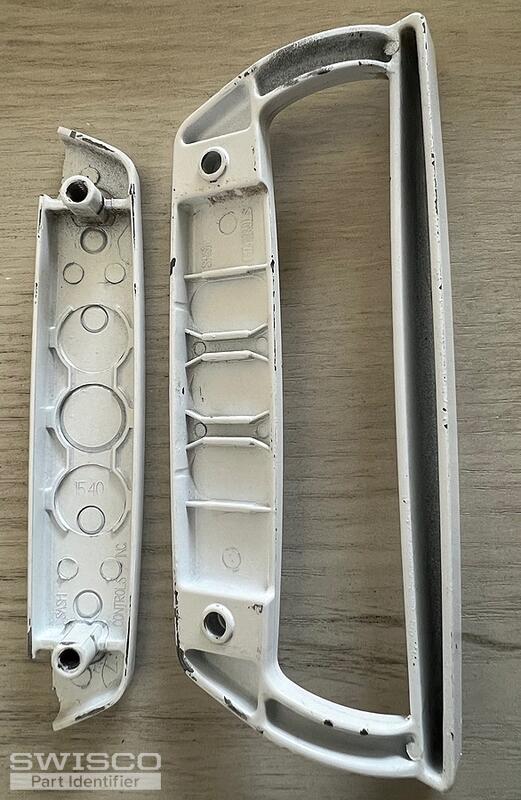

Thumbnail of the uploaded file named IMG_1669.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 19, 2024

Thanks for posting. How our 82-030 has the same hole spacing. Take a look and let me know if you think this is what you need.

Hole center dimensions for 82-030
Hole center dimensions for 82-030
Dimensions for 82-030
Dimensions for 82-030
Keyed Handle Set, Acorn
Keyed Handle Set, Acorn
82-055K
$27.55
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
