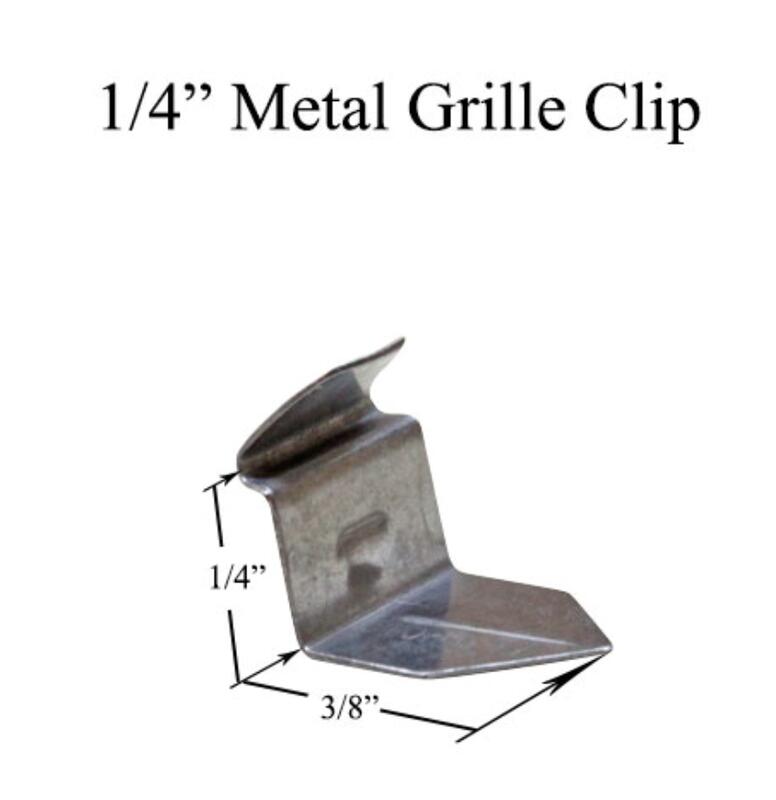

Weathershield New Style Metal Grille Clip with tab for double hung tilt windows.
Used with several brands - Weathershield and others
Material: Stamped Steel
Measurements:
Height (from base to apex of the folded tab): 1/4 inch
Width: (projection of pointed tip): 3/8 inch

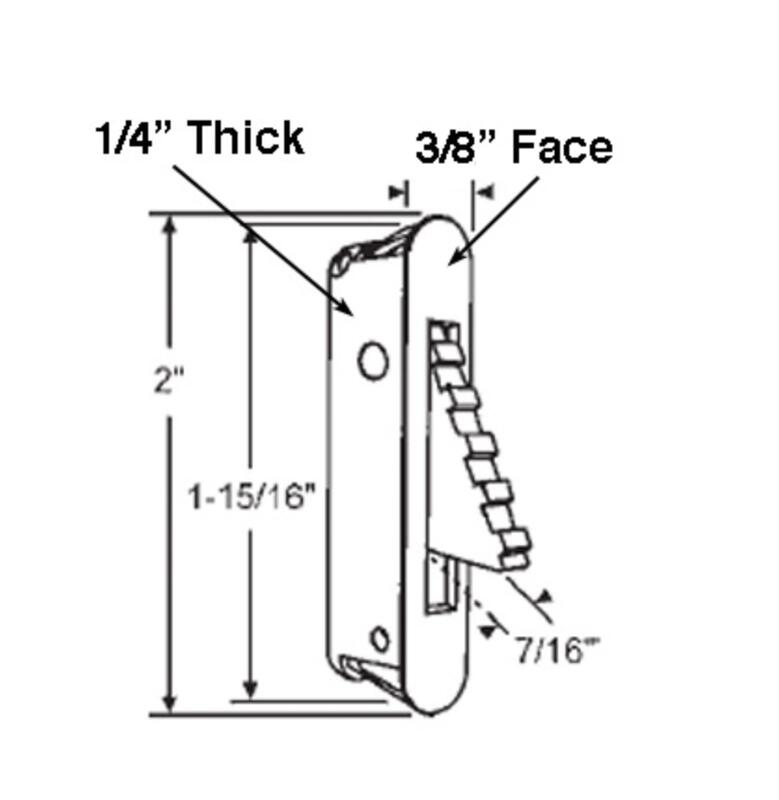

Combination Vent Lock / Security Night Latch for Vinyl windows
Patent #: 4.823.230 or 5.248.174
Dimensions:
Face Length: 2 inch
Body Length: 1-15/16
Face Width: 3/8 inch
Body Thickness: 5/16 Inch
Latch Projection: 7/16 Inch
Colors: White, Brown, Beige, Coppertone
Sold: Each
HI,
Do you have this part available?
WINDOW SCREEN PLUNGER PIN, NYLON, 1-1/2" LONG , SET OF 4
1-1/2 inch long nylon plunger pin.
Fits 7/16 inch x 1 inch screen frame.
Diameter: 7/32-inch
Finish: Raw
Material: Aluminum
Note: After these are assembled the back side of pin needs to be flared out to hold cap in place.
Includes 4 pins.
Window screen plunger latch priced and sold as a package
|
Casey from SWISCO responded:
October 21, 2022
Hello, Unfortunately, we do not carry exact replacements for the parts shown in your diagrams but we do offer some parts that are close. For your grid clip, take a look and compare the specifications of the 55-176 Andersen clip to see if it may work for your repair. Your vent latch reminds me of the 26-122 but your dimensions are a bit larger than ours, so I'm not sure if it will fit into your window cutout. As for your plunger pins, you can find our small selection of replacement options here to determine if one of them might work for you. We can't guarantee that anything we carry would work but review the related items and see what you think. Thank you. |
