Part Identification

Question

Hello

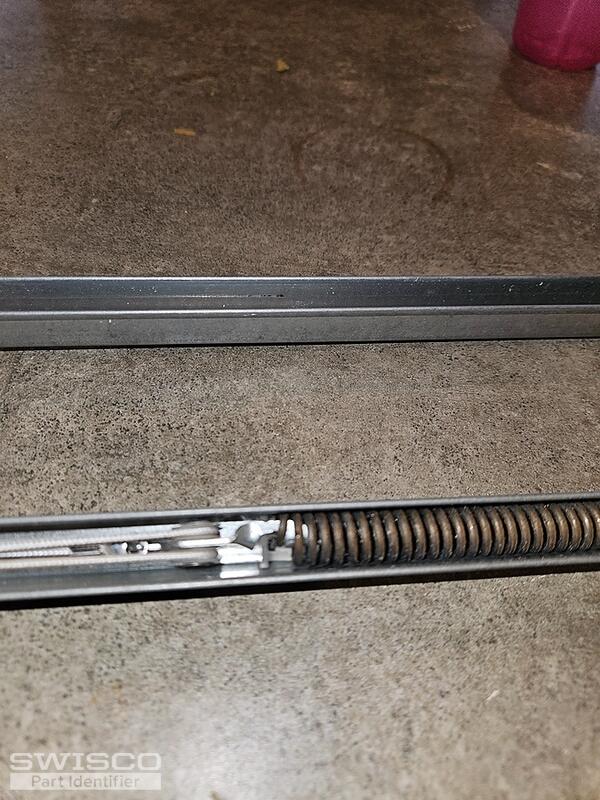

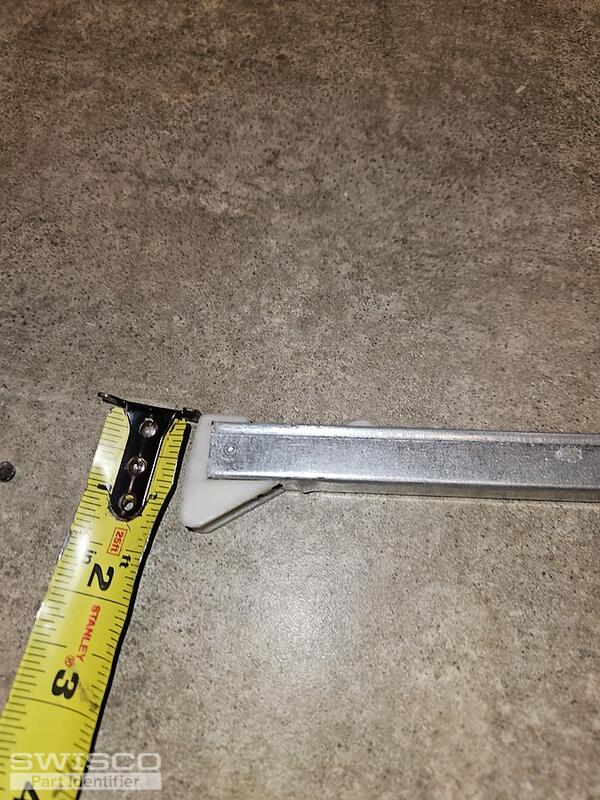

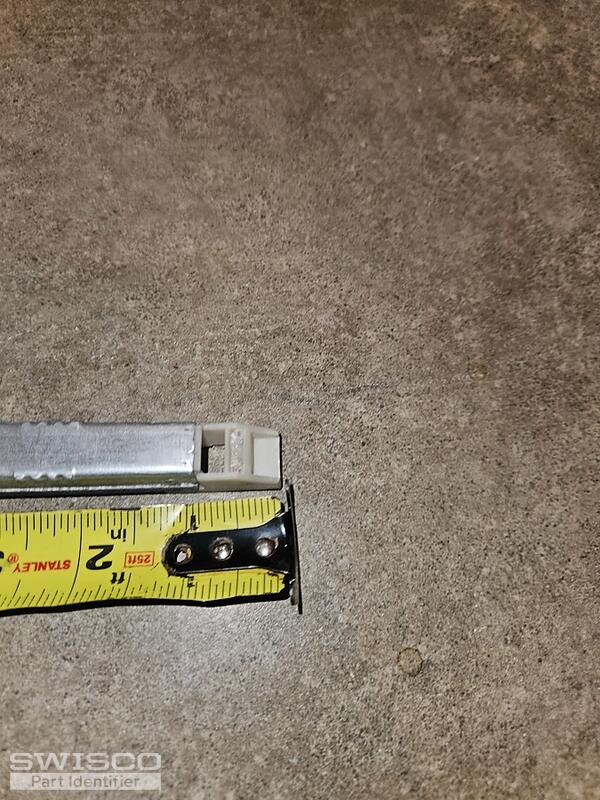

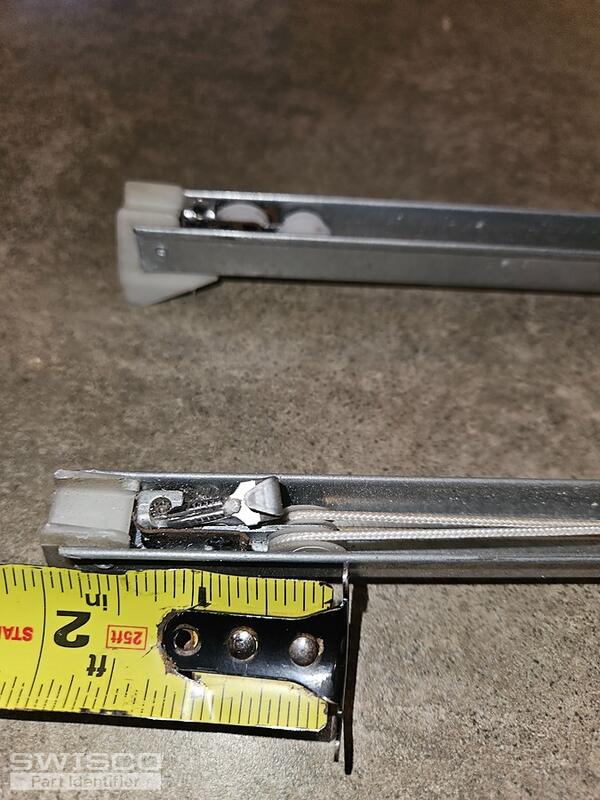

Looking to replace 6 non tilting channel balances. Here are the dimension

1/2 Width
33 inch long

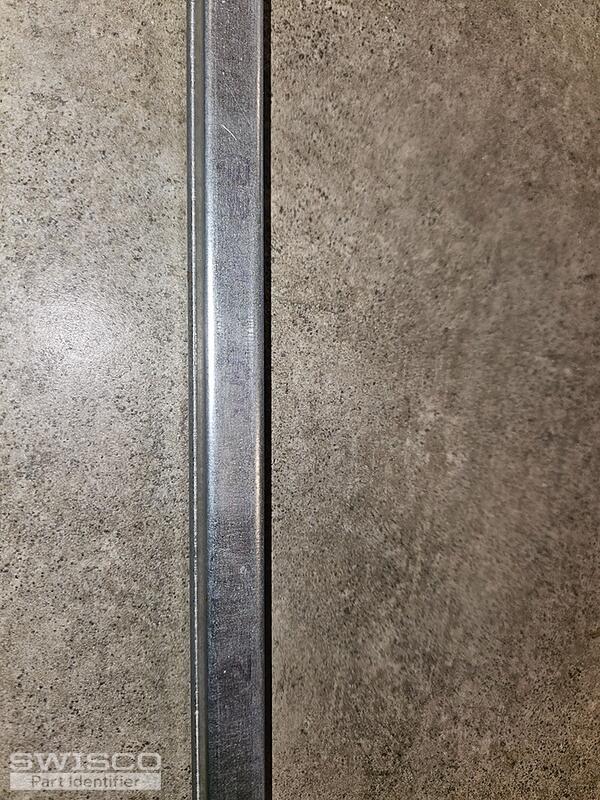

Stamp ID # 32 4 AX CMC 7

Thanks!!!

Lauren · Accepted Answer

Hello, thank you for posting,

It appears you have either our Series 351, with a 15-002 bottom attachment, or Series 390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You will need a 33" balance with a 3240 stamp option. Please review and let us know if you have any additional questions.

Comparison of the S351 and S390 balance shoes.
