Part Identification Help: Replacement Balance for Milgard Series 5220

Question

Hi there,

I need some help identifying the correct replacement channel balances for my bathroom window.

The broken cable came out of a Milgard Series 5220 single-hung window (MFR Code: MG-2). Here are the exact specifications and markings from the hardware:

Metal Channel Length: 15 inches

Metal Channel Width: 1/2 inch

Stamped Markings on the Balance: "24 2 HN CALDWELL"

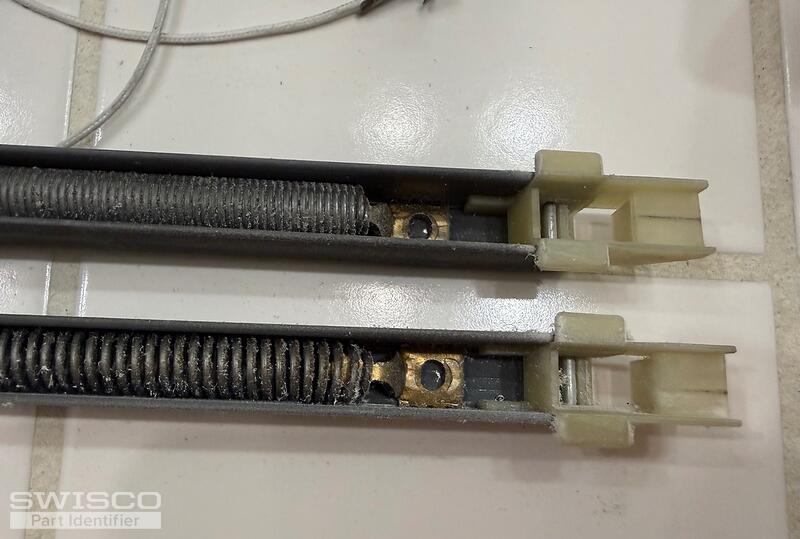

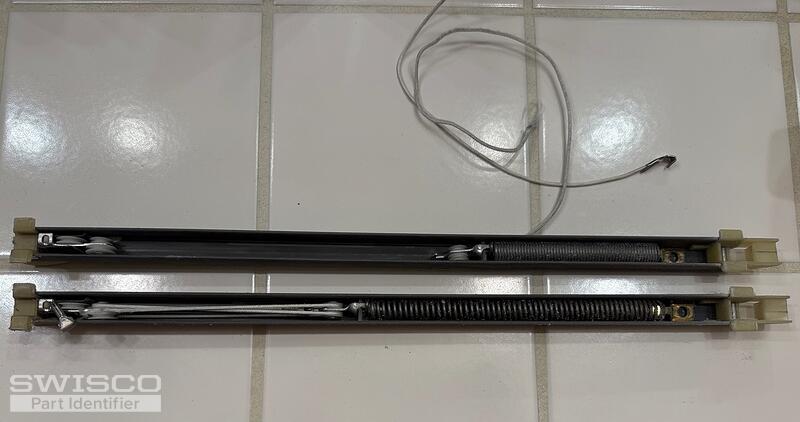

I have attached photos for reference.

Could you please let me know which series and option I need to order to replace this?

Thank you!

Denise

Tom · Accepted Answer

Thanks for your photos. Based on what I see here, you have either our S380-25, S385-25, or S378-25 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

In either case, you need the 2420 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
