Part Identification - request #2

Home Owner from Minnesota
Looking for non tilting channel balances.

Width 1/2 inch

Length 33

Stamp ID # 5 LW CMC 11



3 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S351-33 or S390-33, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

You should also note that your stamp is not common for this configuration at all. There should be two digits before the 5. If the length of the metal channel is 33", then those digits should be "32."

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Home Owner from Minnesota

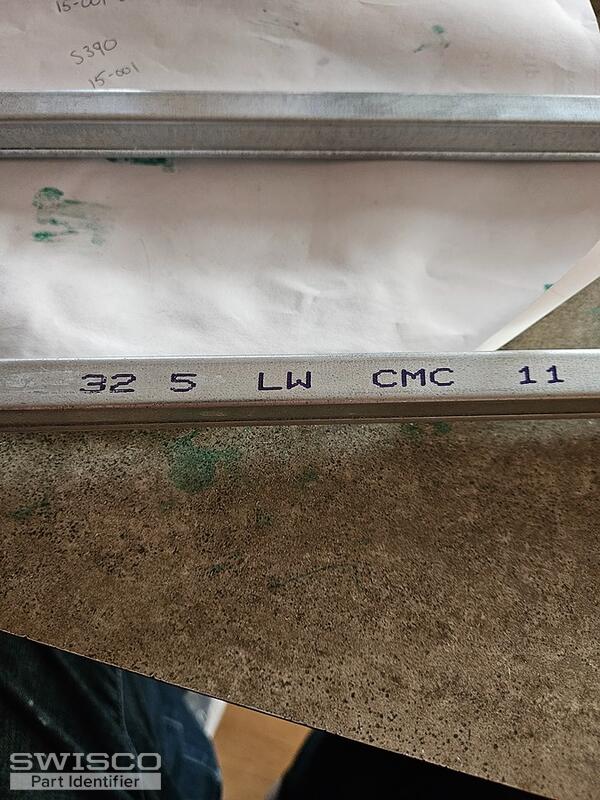

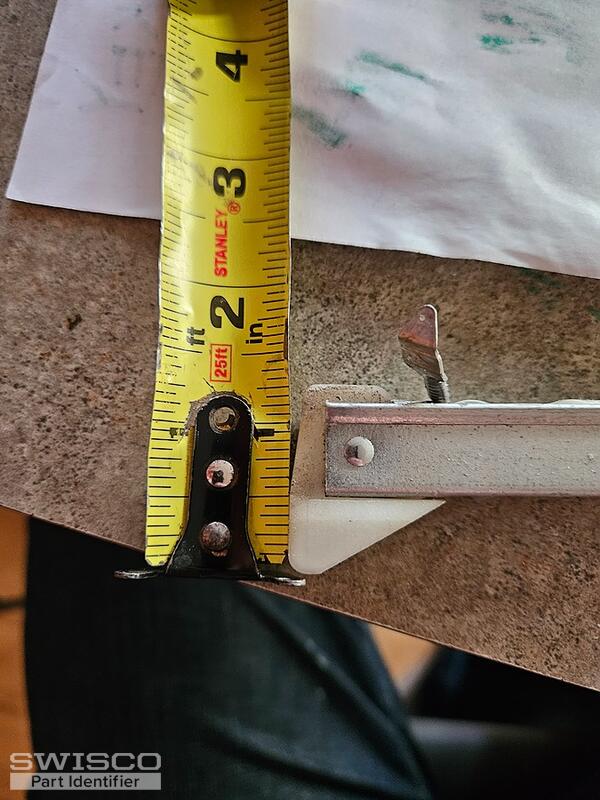

Thank you! I took a picture of the stamp. Also took a picture of the bottom shoe width. Based on this it looks like S390 option. When I go to order it asks for an option number. Any idea what I'd select?

Thanks again!!
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Actually, I'm a little uncertain now. The depth of your shoe looks much larger than 1-1/8", looking to be almost 1-1/4". Can you verify? That's far larger than anything we sell.

We do sell the 15-003 shoe, which is 1-3/16" deep, but it's not available on any stock balance and must be a special order. But even that isn't quite as deep as yours appears to be. I would definitely triple check that measurement as precisely as you are able before you buy anything.

Alternate view of 15-003
Alternate view of 15-003
