Part for Certainteed awning windows

A quick learner from Marmora NJ says:
May 20, 2020

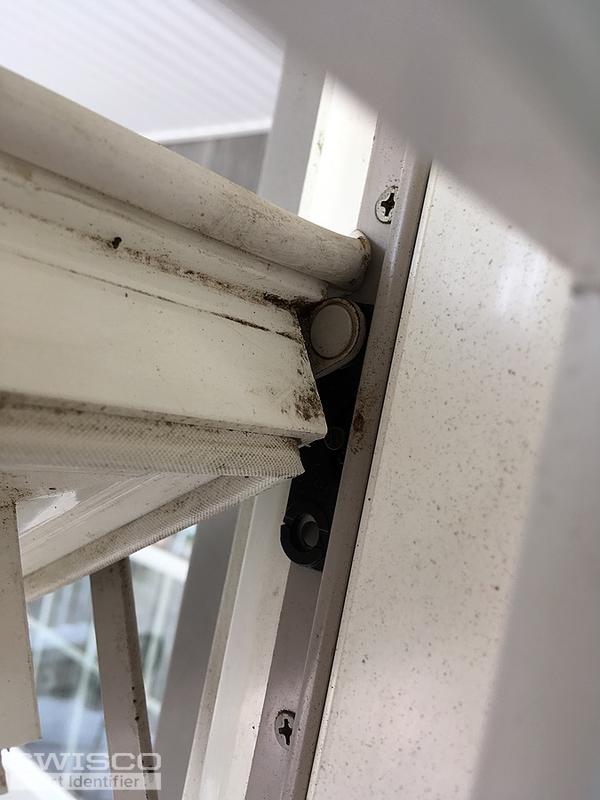

Looking for the black piece in the pictures. It is for Certainteed awning windows. It slides up and down in a track when you open and close the windows.
Thumbnail of the uploaded file named 2D525ED9-A976-4144-8202-AB23CCDC1F6C.jpeg
Thumbnail of the uploaded file named 37274335-E5A3-4088-85A2-805D876A5318.jpeg
Thumbnail of the uploaded file named 4886CEF5-C4C5-4A9E-A928-4A0C36901143.jpeg
Thumbnail of the uploaded file named 7B37AB7C-EFB5-47DC-A12D-14AE69477665.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

This piece is unfortunately not available by itself. You will need an all new hinge.

I recommend the 36-048. This should work well for you as long as you replace the top and bottom at the same time. The video below goes into more detail.
A quick learner from Marmora NJ says:
May 22, 2020
My window is an awning window. You recommended the 36-048 but the video is showing a casement window. Is this the same part for awning windows?
Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

I've known some window installers who put the 36-048 (and casement hinges in general) on awning windows. They're not technically supposed to work that way, but window companies still do it and it usually works fine.
A quick learner from Marmora NJ says:
May 27, 2020
What is the difference between part number 36-048 and part number 36-004-10?
Profile picture of Tom
Tom from SWISCO responded:
May 28, 2020

They more or less do the same job, but the 36-004-10 is stainless steel. The 36-048 has a powder-coated finish that resists corrosion, but that's its only protection.

If you'd prefer stainless steel then the 36-004-10 would work just fine. I didn't see any particular issue with corrosion on your old hinge so I didn't think to recommend it.
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
10" Stainless Steel 2 Bar Hinge Set
10" Stainless Steel 2 Bar Hinge Set
36-004-10
$19.93
