Part help

Home Owner from Florida

Jan 5, 2026 2:56 pm

Hi, I was hoping you could help me identify the part # for these (CALDWELL) parts for PGT window there are 2 different ones. I have bought replacement parts from Swisco in the past and they work great!

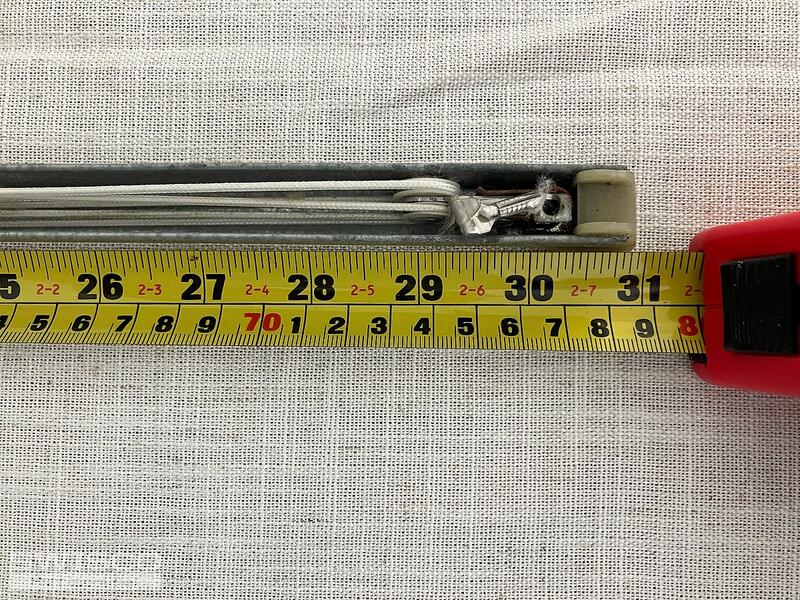

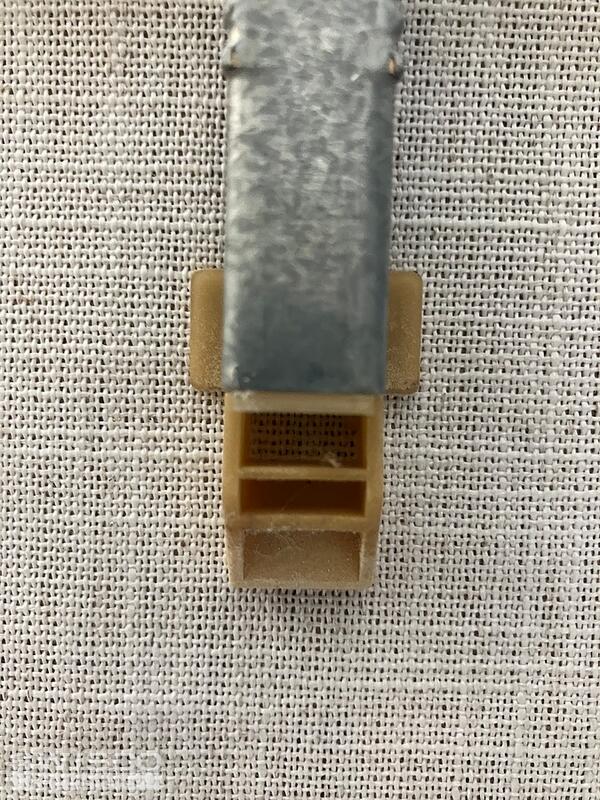

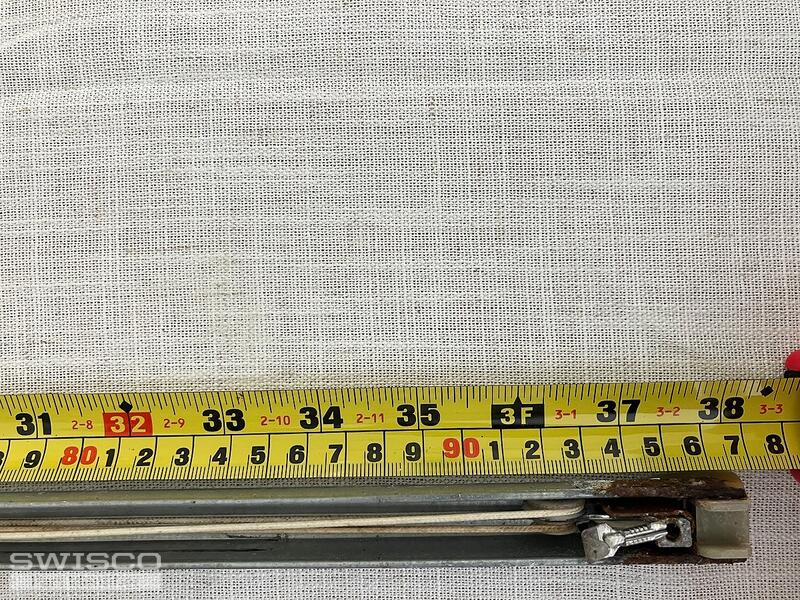

5 user uploaded images

6 Replies

Jasmine from SWISCO

Jan 6, 2026 3:19 pm

Thanks for reaching out! I'm confident we can supply a replacement for your window balance. Although, I'll need to see a photo of the piece connecting the spring and the string, in the middle of the balance.

Please let me know if you have any questions.

Home Owner from Florida

Jan 6, 2026 4:02 pm

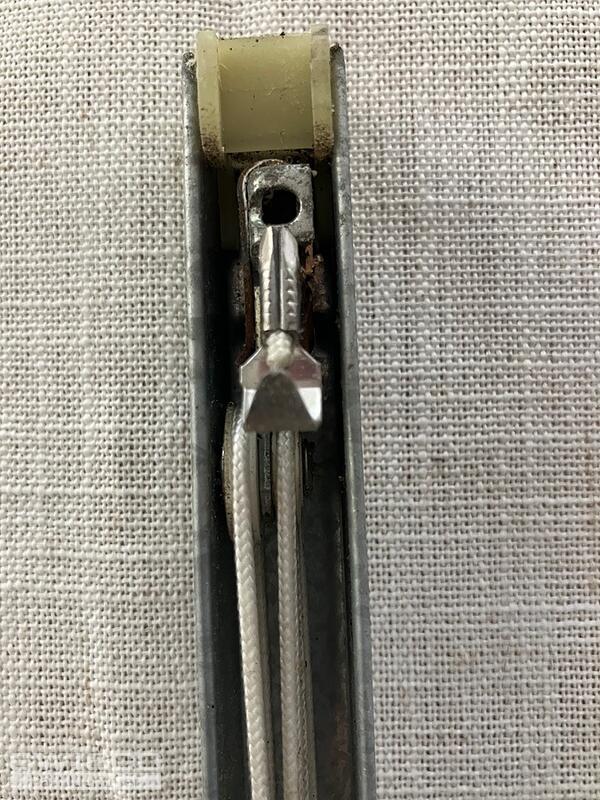

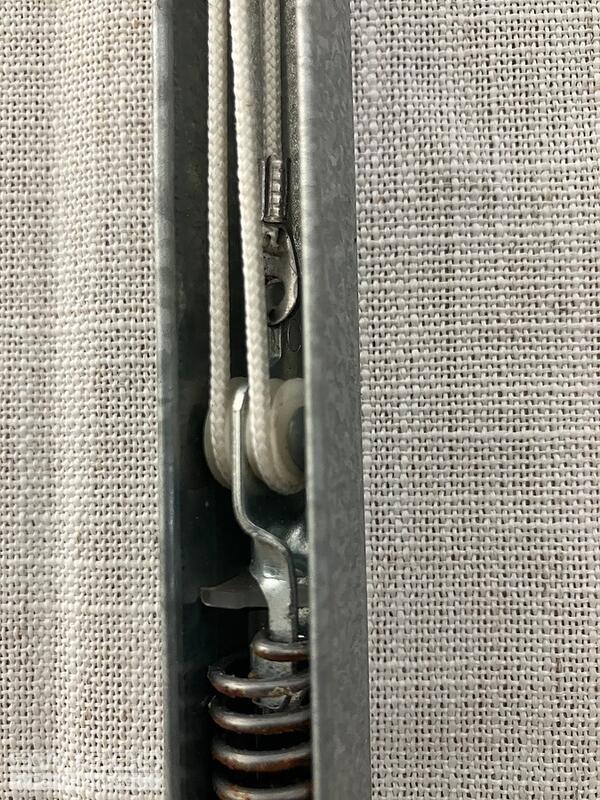

Please see attached closer photos.
Thanks!

3 user uploaded images

Jasmine from SWISCO

Jan 7, 2026 9:21 am

Thanks for the additional photos. Your balances can be replaced with the S395-30. You'll need to select the 2910 stamp option. It will support a sash weighing 7 to 12lbs.

Home Owner from Florida

Jan 7, 2026 10:43 am

One sash is a pretty big window is there an option for a larger weight than the 12lb? That was the one that was slightly longer.Thanks

Jasmine from SWISCO

Jan 7, 2026 11:14 am

Apologies, I missed the other balance. For the one marked 36 4 you'll need the S395-37. Our 3940 stamp will support a sash weighing 23 to 30lbs.
