Part identification
Quick Learner from Ohio
Aug 11, 2025 10:54 am

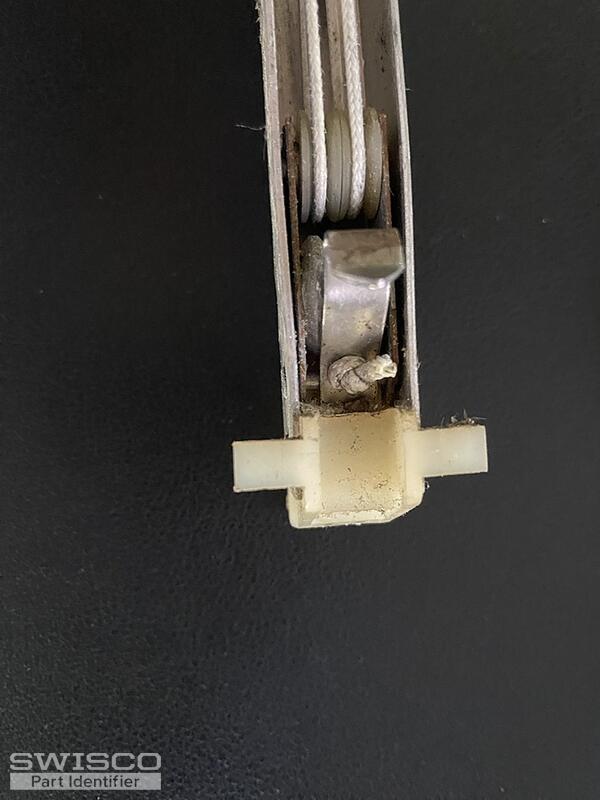

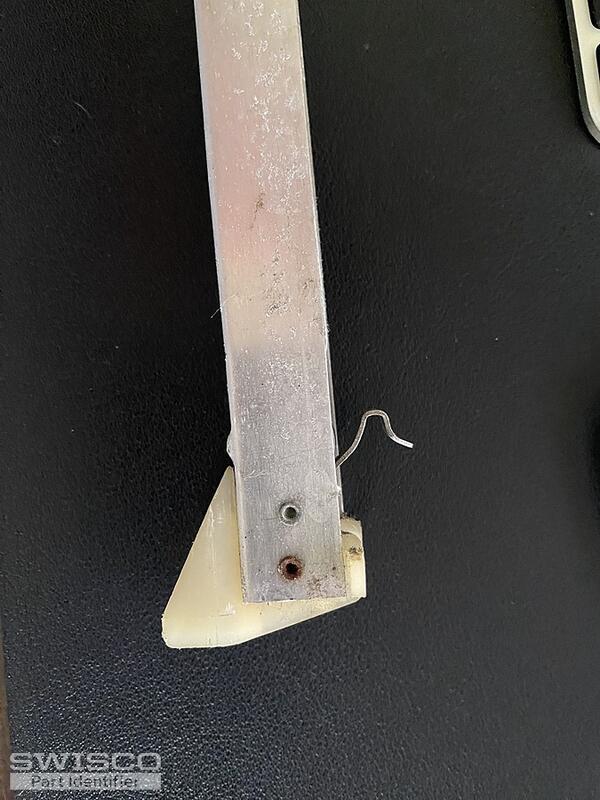

I need help identifing a part. It's stamped with 2840 and looks most similar ro your 350 series but the bottom plastic piece is 1 1/4 wide, not 1 3/32. Photo's attached.
5 user uploaded images
2 Replies
Casey from SWISCO
Aug 15, 2025 9:40 am
Hello,
I agree that your assembly resembles the S350-29 (2840) channel balance. Note that the depth of the bottom fitting shown below would be the key dimension to confirm. Look it over and see what you think. Thanks for posting!
How to measure the length of the Series 350 channel balance.
Close up view of the S350 balance shoe.
