Part identifier for window : SWISCO.com

Quick Learner from Huntington Beach California

Aug 13, 2025 11:48 am

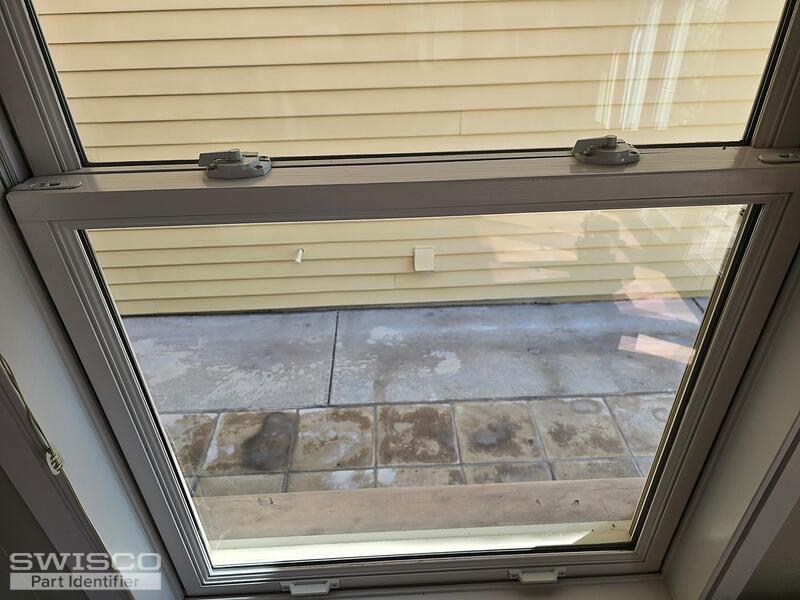

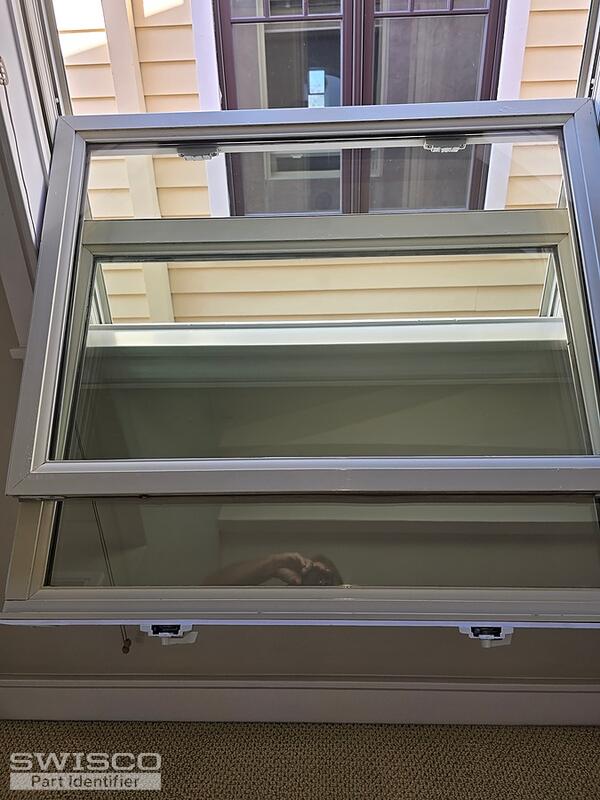

I'm trying to identify my window type so I can replace the broken metal piece that goes into the channel balance. The broken metal pieces the L-shaped part in the photo.

5 user uploaded images

4 Replies

Paul from SWISCO

Aug 19, 2025 1:03 pm

Thank you for reaching out to us. Your pivot shoe looks like the 15-135. This is compatible with the 26-310 pivot bar pair, which is similar to your old part. Review the specifications and see what you think.

Alternate image for 15-135

Detail of 26-310

Quick Learner from Huntington Beach California

Aug 20, 2025 9:01 pm

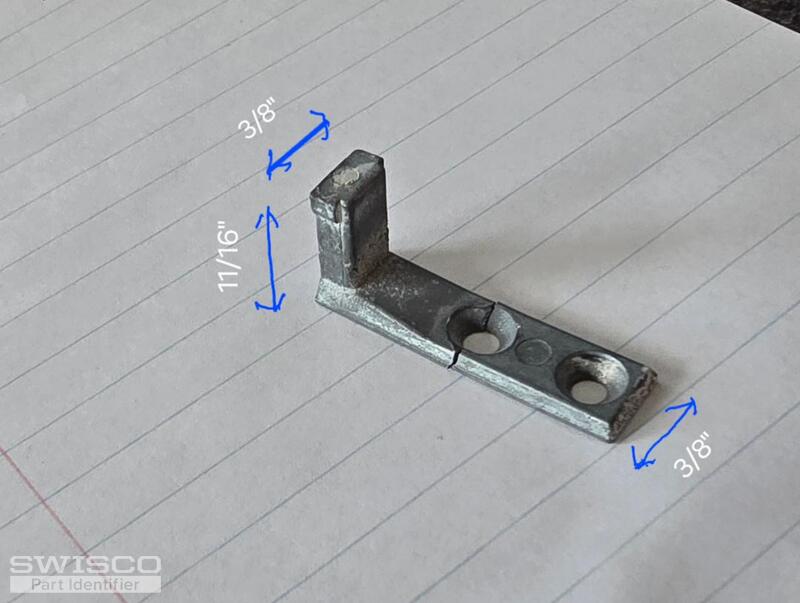

This is getting closer but I'm looking for a piece that is shaped like the new photo I posted with the demensions I will need taged on the photo. Any ideas?

1 user uploaded image

Paul from SWISCO

Aug 21, 2025 8:57 am

The leg of the 26-310 that fits into the pivot shoe cam measures 1/2 inch. Unfortunately, I couldn't find anything closer for you. However, since it's a die-cast fitting, you can easily shorten the pivot bar or flip it over to use the flat extension that is 3/8 inch long.
