Part identifying help

Home Owner from USA

Good Morning,

My name is Kenya. I need to replace a operator for my awning window but I am unsure as to which part to order. I'm asking for your assistance in identifying the model that I need.

Measurements:

Base (screw to screw) = 6"

Depth (starting at base) = 2 1/4" approx.

Width = 3/4"

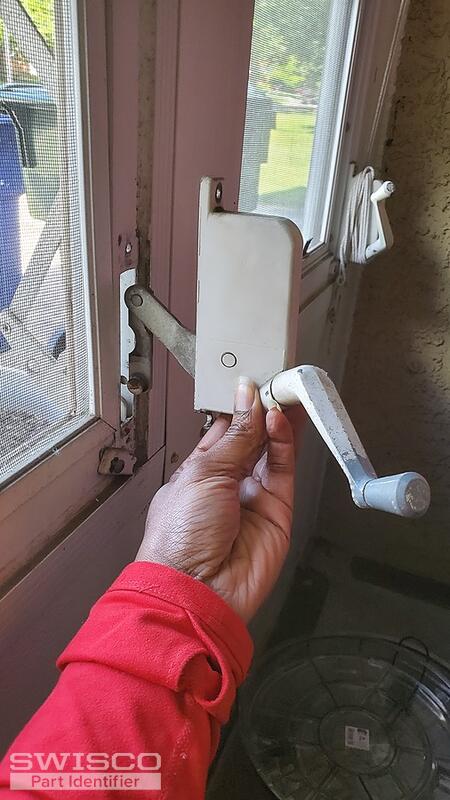

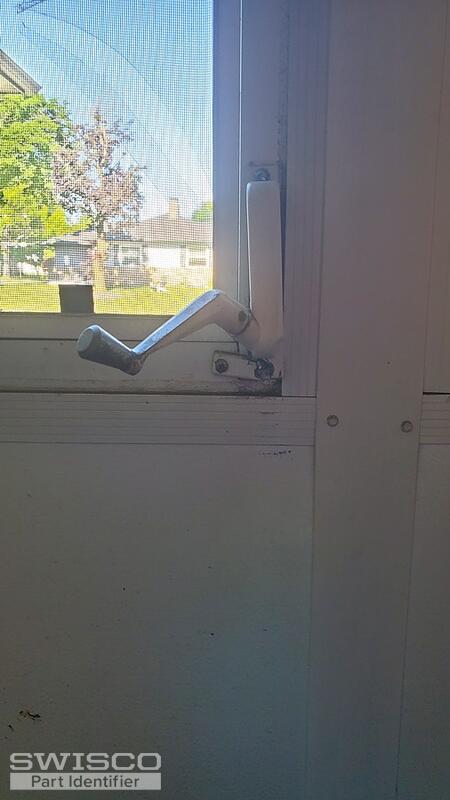

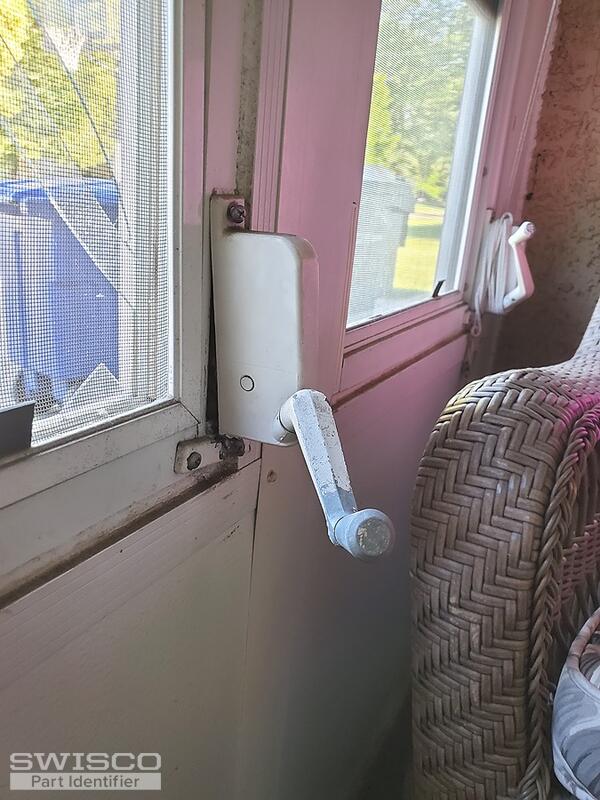

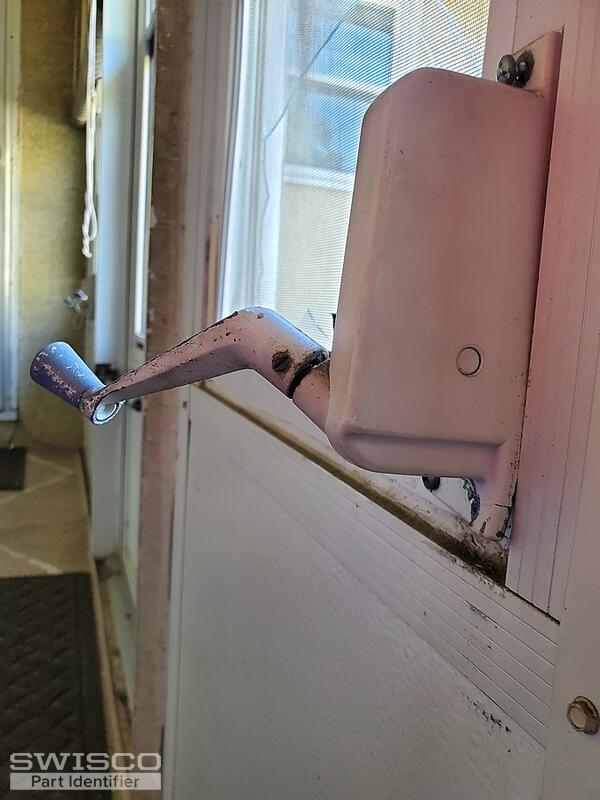

I have attached pictures.

Any help that you can provide will be greatly appreciated.

Thank you,

Kenya

4 user uploaded images
3 Replies
Home Owner from USA
Good Morning,

My name is Kenya. I need to replace a operator for my awning window but I am unsure as to which part to order. I'm asking for your assistance in identifying the model that I need.

Measurements:

Base (screw to screw) = 6"

Depth (starting at base) = 2 1/4" approx.

Width = 3/4"

I have attached pictures.

Any help that you can provide will be greatly appreciated.

Thank you,

Kenya
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

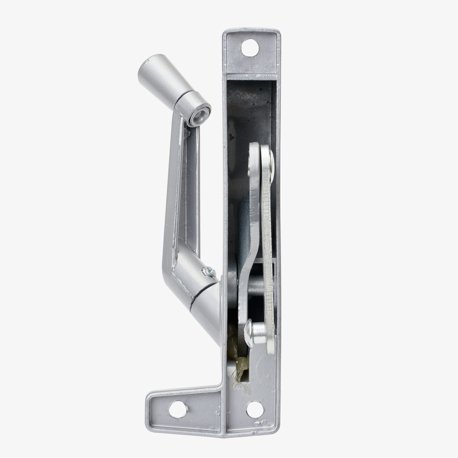

Thanks for reaching out to us, Kenya. Start by having a look at the 39-025 and 39-026 awning operators. Yours looks similar to this type of operator assembly. I recommend you review the specifications and compare them with yours to confirm everything matches up.

Dimensions for 39-025
Dimensions for 39-025

View of the offset of 39-025
View of the offset of 39-025

Dimensions for 39-026
Dimensions for 39-026

View of the offset of 39-026
View of the offset of 39-026
