Part inside window frame that helps window stay shut

Quick Learner from Redmond,WA

Oct 1, 2025 2:02 pm

I need help

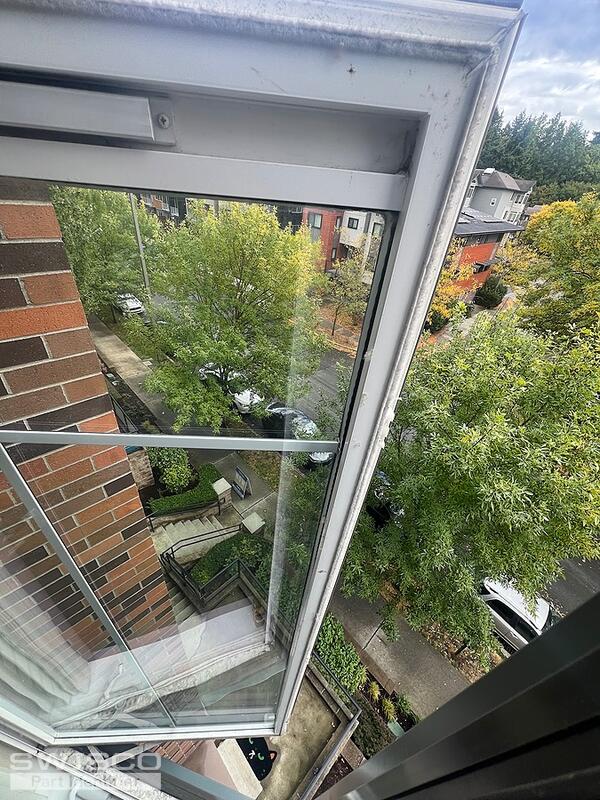

finding this 58 3/4 long piece that locks window in place once it's shut also need plastic pices that hold it in place for both frame and window side.

5 user uploaded images

5 Replies

Jasmine from SWISCO

Oct 7, 2025 12:50 pm

Hello,

I do believe we can supply the replacement for the tie bar but to confirm I'll need to know the number of rollers on it.

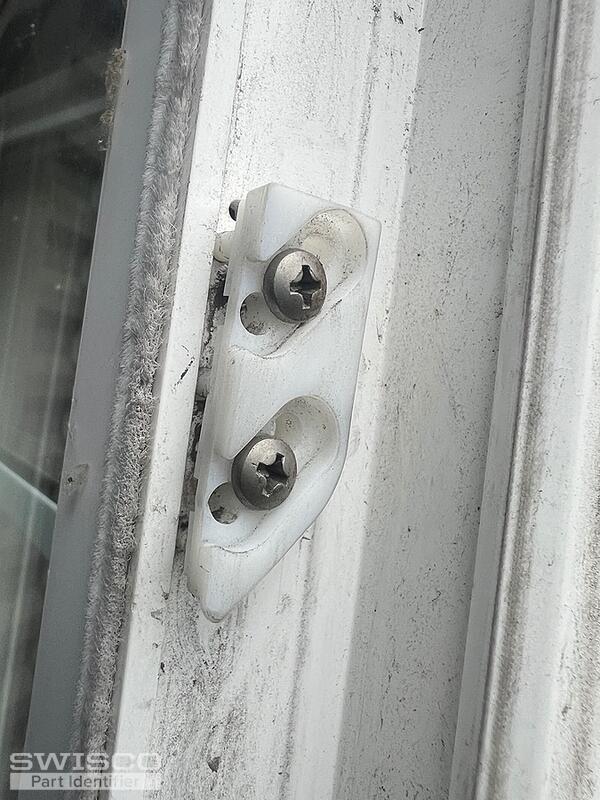

The plastic piece that secures the bars to the window frame, and that guides it when locking/unlocking the window, is the tie bar guide. Yours reminds me of the 39-448.

The keeper on the side of the window reminds me of the 38-131 Truth Maxim Adjustable Keeper. The opposite handed version is the 38-130.

The dimensions for the recommended parts can be viewed directly on the website.

Please let me know if you have any additional questions in the meantime.

Quick Learner from Redmond,WA

Oct 7, 2025 3:06 pm

I believe it has 4 rollers.

Jasmine from SWISCO

Oct 15, 2025 11:42 am

Thanks for your patience! We have located this part and are still working on bringing it in. Once it is available, I'll be sure to reach out to confirm.

The lead time is at least 6 weeks at the moment.

Please let me know if you have any additional questions!

Jasmine from SWISCO

Nov 6, 2025 10:49 am

Hey there,

Thanks so much for your patience! We've finally received the new tie bars. They are now available on the website as part 38-978 58.9" Tie Bar. Please use the link below this thread to review the product details and dimensions.

Also, be sure to look over the other parts recommended above. Please don't hesitate to reach out with any other questions you might have!
