Part needed (at least 4)

Home Owner from Bakersfield, California United States
Hi,

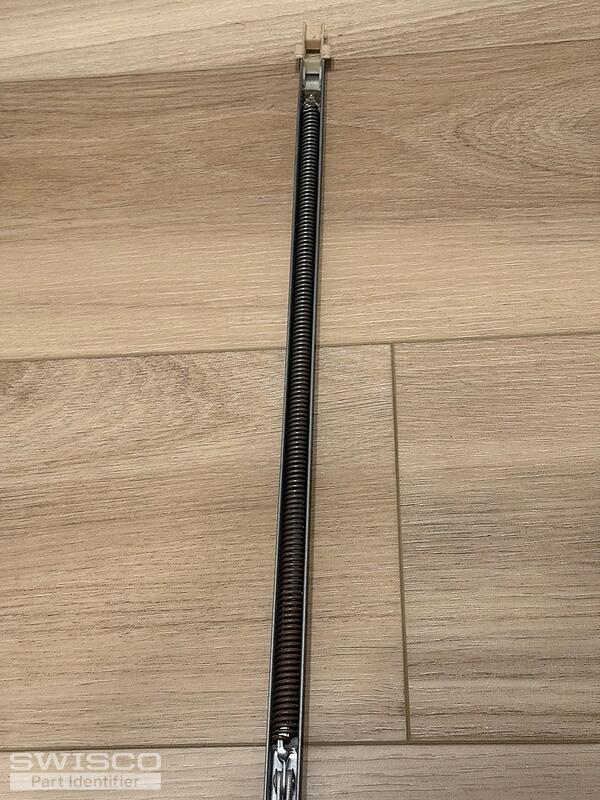

The aliminium part is 27". I can send more photo if needed.
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. We're happy to look into this. Can you tell us the depth of the bottom shoe by measuring as shown below?

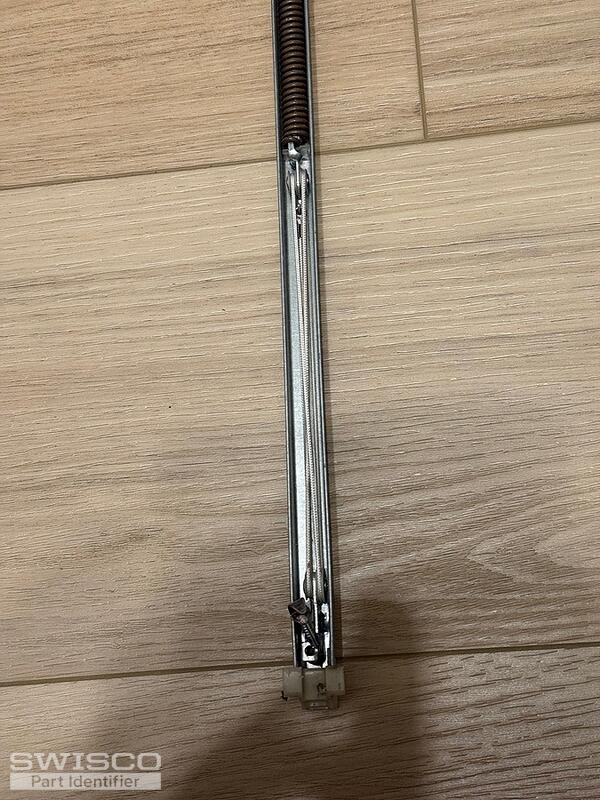

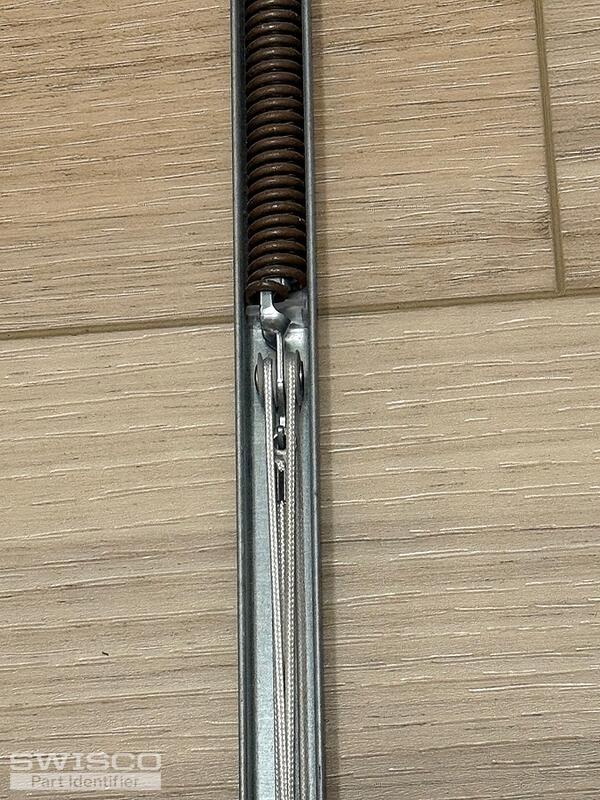

Can you also show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Home Owner from Bakersfield, California United States

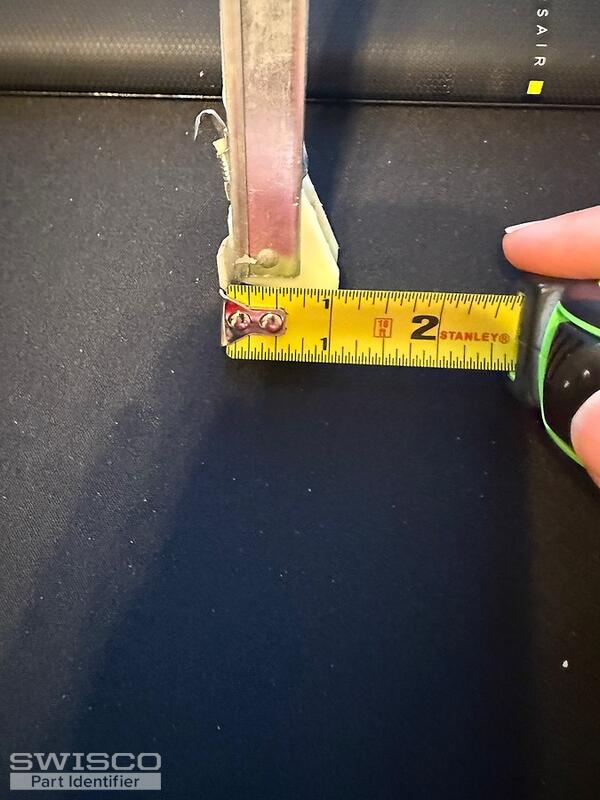

Depth is ~ 1"1/8

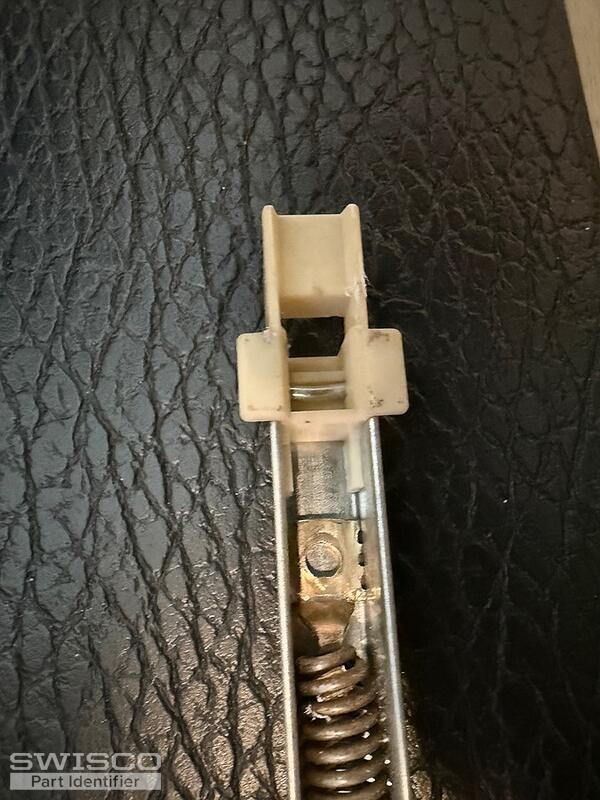

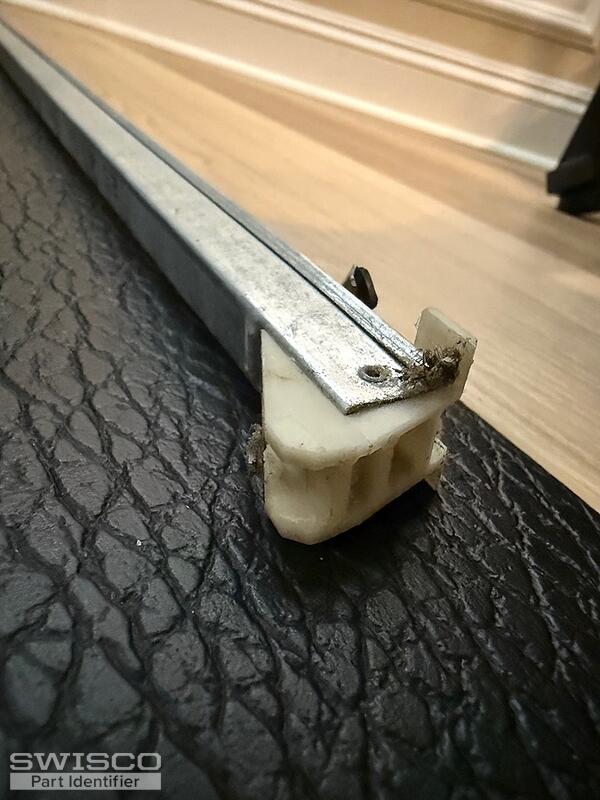

Attached few more pictures.... The house was built around 2005 ... I don't think anyone has changed these ...

4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for the additional photos! The S380-27 and S385-27 with the 2640 stamp option look like a match for what you show here. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. We don't sell a winged 1-1/8" deep shoe so it couldn't hurt to double-check just to be safe.

Please let us know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
