Part number identification

Home Owner
Hi,

My window balance has a stamp number of:

26 3 GV CMC 7

What is your corresponding part number? The length is 27" and 1/2" wide.

Thank you.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting. Unfortunately, that stamp does not help us identify what balance you need. The stamp is merely indicative of the balance's strength, and it is not a serial number of any kind.

To help us identify the correct replacement hardware for your application, please remove the balances from your window and take a few pictures of them, and then reply back to this thread with the images attached.

Please make sure you take a picture of the attachments on both ends of your balance. Also, be sure to include the length of the channel portion of your balance in inches. Do not include attachments in your measurement.
Home Owner
Hi Tom,

I took some pictures and have provided them attached. The length without the plastic ends is 27". I took a stab at a part number, and the base number I would say is S380-27, based on my measurements of the shoe attachment (1"). The option part is what I don't know.

Thanks.

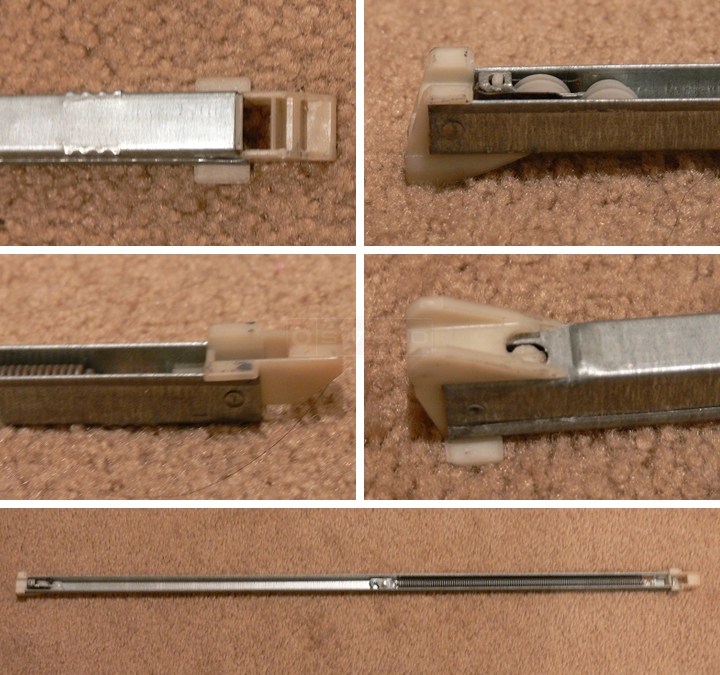

User submitted photos of a window balance.
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting! I completely agree. Based on the size of your bottom shoe, then I think that our S380-27 is a good guess. The top attachment is easy enough to identify, and it matches the 19-005. I'd also recommend the 2630 option. Make sure to compare that weight rating to your own sash weight to make sure it will work!
