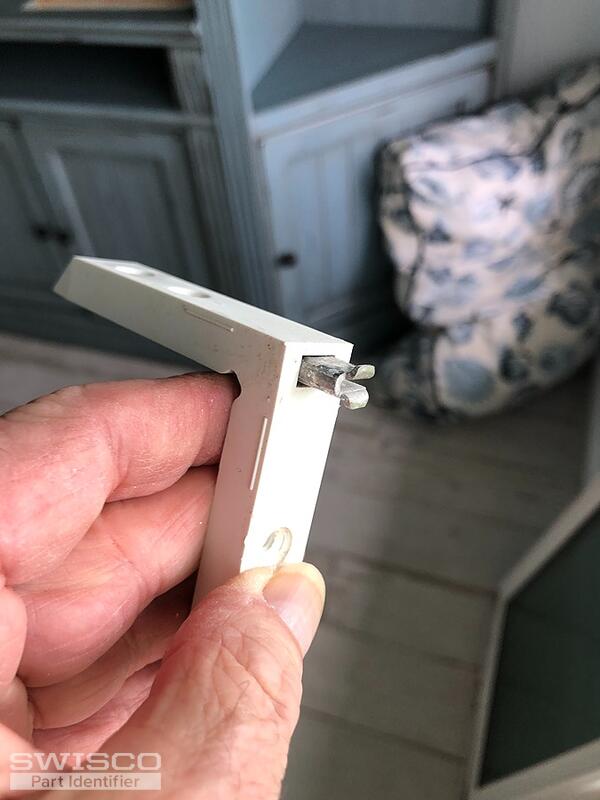

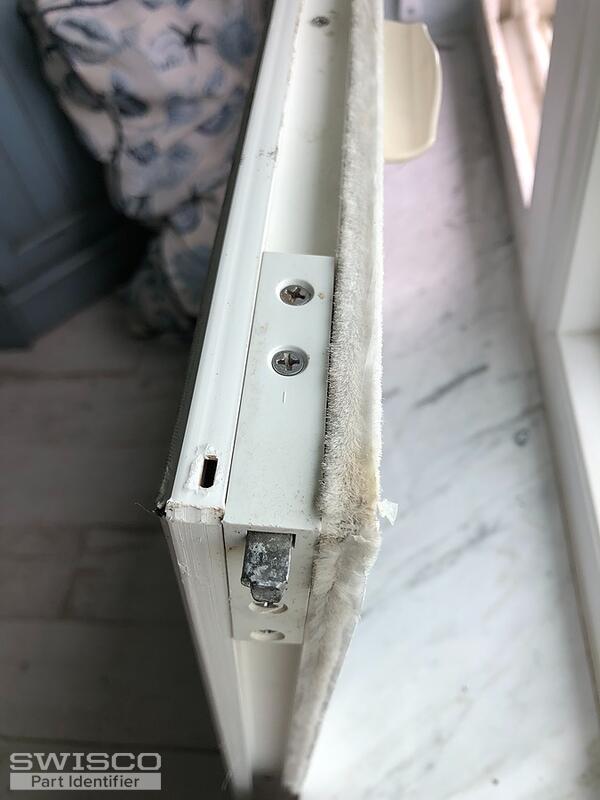

I can't find the pivot pin on your website
I believe the bracket is a 16-030
I need to know all 3 part numbers since I need to order multiples of each part
Are there any special tools needed to help with the install?
Thanks
Steven
hello,

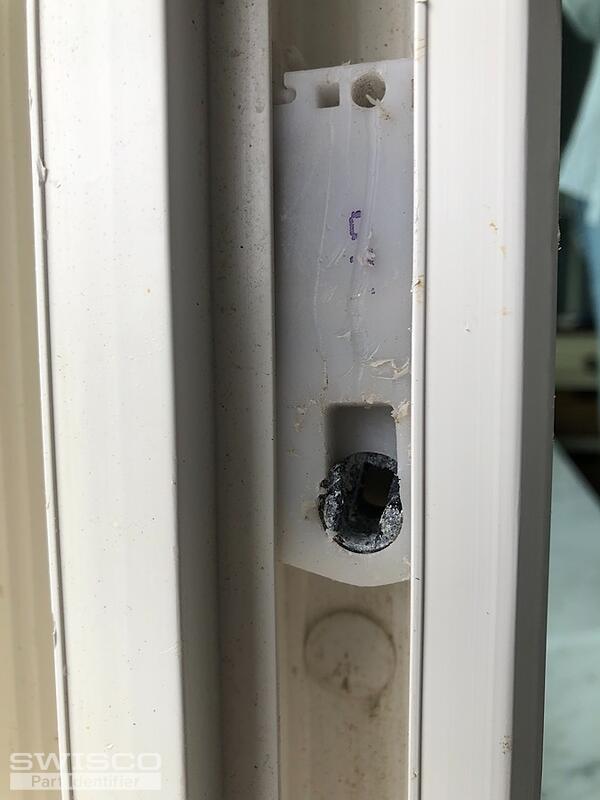

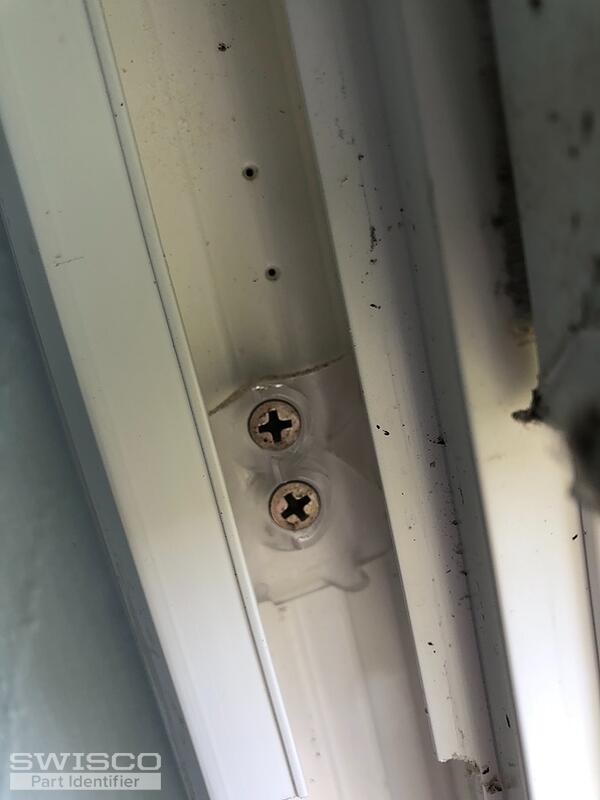

We'd be happy to look into this for you but we would need to see a photo of the front of your housing pivot that the pivot bar engages with. I don't recognize your pivot bar at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. Seeing more detailed photos of the coil assembly may also help us narrow down which pivot bars would be compatible. Thank you!

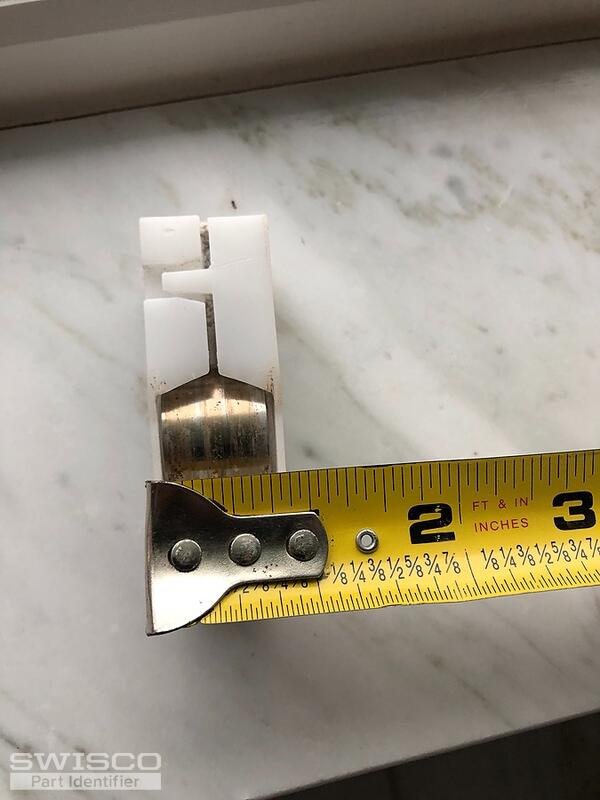

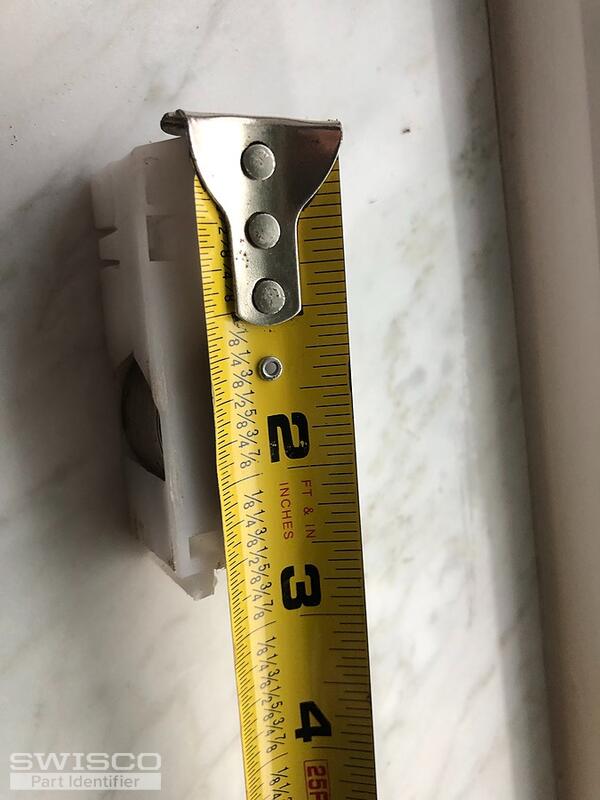

As Casey mentioned, we can't be sure without seeing photos of your coil assembly from additional angles but I can tell you that the 26-405 pivot bar fits into the S210-10 Roller-Tilt shoe. No special tools are needed to install this balance system. With that being said, you'll need to carefully review the dimensions below to ensure that the backset of the pivot shoe installation holes, as well as the width and thickness of the coil balance housing, match your original hardware. Take a look and let us know if you have any other questions.
Your coil balance assembly indeed looks like the Series 210 that we recommended earlier. You should be good to go as long as the specifications match up.
It depends on the specifications of the original. The 26-405 is a place to start but you have to review the dimensions to see how they align with yours.
