Part numbers and prices please

A handy person from Vernon, CT says:

Hi, I'm looking for part numbers and prices for:

  1. The smaller of the two Pivot Bars shown, Measurements: The overall length is 2 3/16". The distance from the pointed end to the center of the hole is 1 3/16".
  2. The Coil Balance Support (anchors the coil to the window frame), measurements are attached (with the pictures).

These parts are for AlSide Centurion Windows.There were no numbers on either of the parts.

Thanks,

Larry

Thumbnail of the uploaded file named Pins.JPG
Thumbnail of the uploaded file named Balance Support.JPG
Thumbnail of the uploaded file named Ballance Support 3.JPG

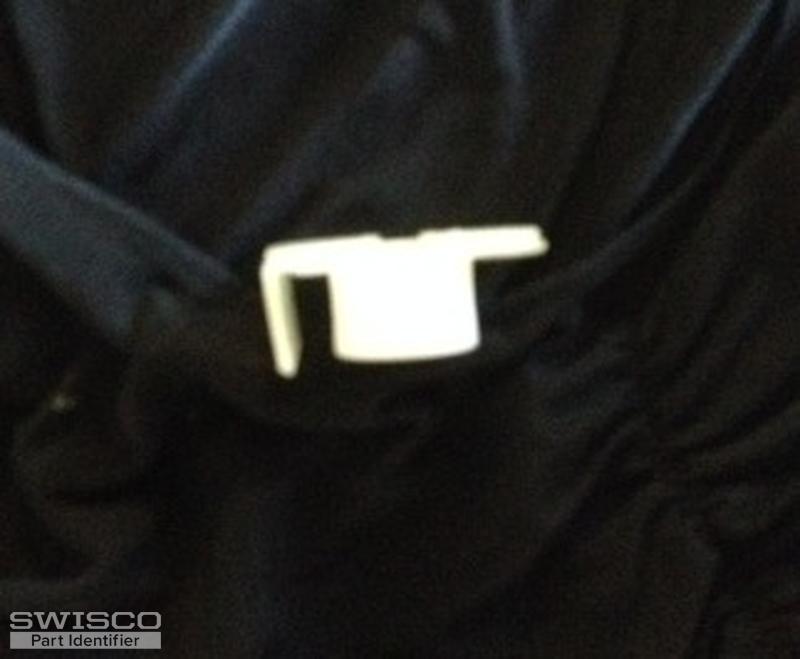

Thumbnail of the uploaded file named Balance Support4.JPG

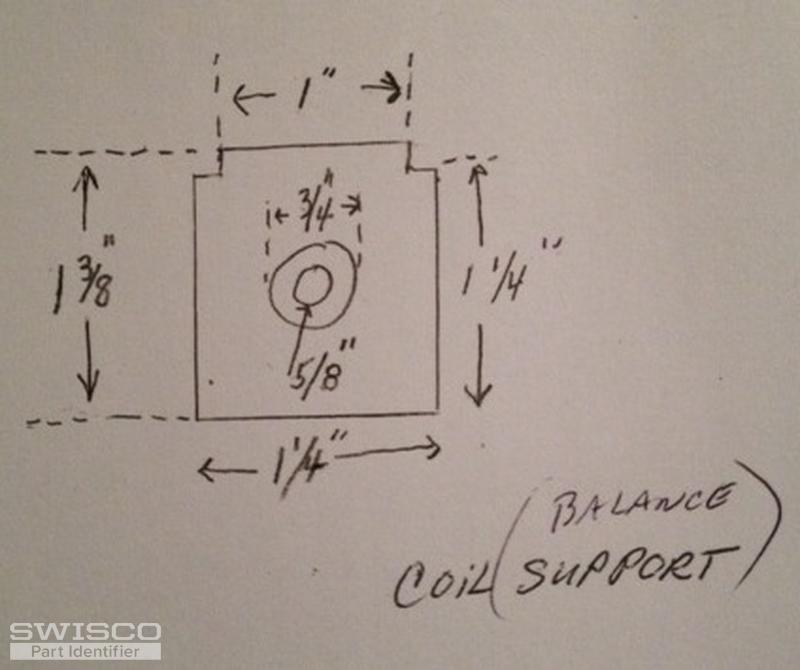

Thumbnail of the uploaded file named Balance Support measurements.JPG
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. I'm afraid that we couldn't find a pivot bar that matches your specifications. The closest we have is our 26-352, whose front hole center is 1-5/16" from the tip. Can you confirm that dimension?

Another possibility is the 26-030. This has elongated holes, so you may have some extra wiggle room.

As for the coil balance support, I'm not sure if they make this exact kind anymore. Can you tell me the thickness of the spring it houses? That will allow us to find a good working replacement.
