Part to identify

Home Owner from USA

Apr 16, 2021 9:06 am

Hi. Guys pls help me to select the right part. Thank you. This is completely different one that i have now and different size. I sent u pictures. Mine is like 15-134 or 15-212. Can pls try to match it. Here is the pictures.

4 user uploaded images

11 Replies

Emily from SWISCO

Apr 21, 2021 12:55 pm

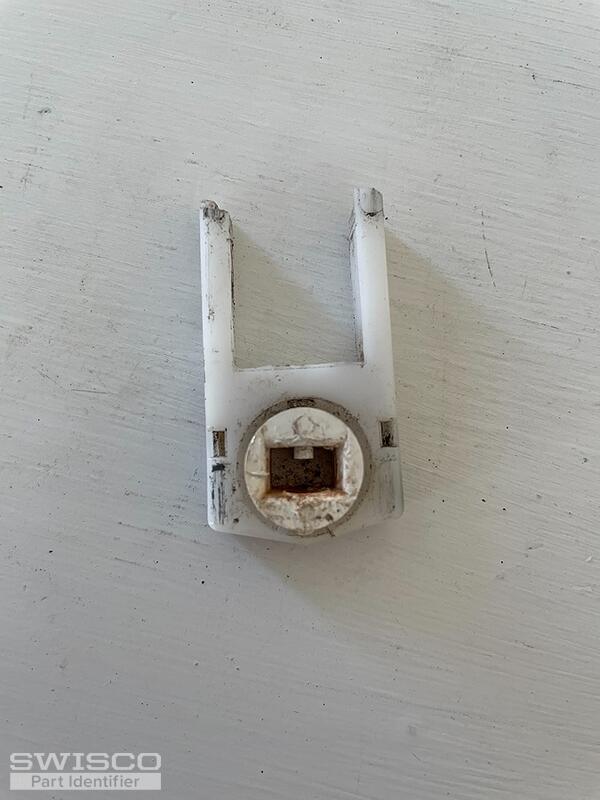

Hi there! It's hard to say since the top of your pivot shoe seems to be broken off. Could you show us an undamaged version, along with dimensions, to compare to our inventory?

Home Owner from USA

Apr 21, 2021 1:24 pm

hi. thats the thing i sent you guys undamaged pics too.

Emily from SWISCO

Apr 22, 2021 11:10 am

It looks like your tape measure might be in the way. We'll need to see a clear photo of your undamaged pivot shoe so we can see it in it's entirety.

We'll also need you to write out the exact width and thickness of your pivot shoe.

Thank you!

Home Owner from USA

Apr 26, 2021 7:08 pm

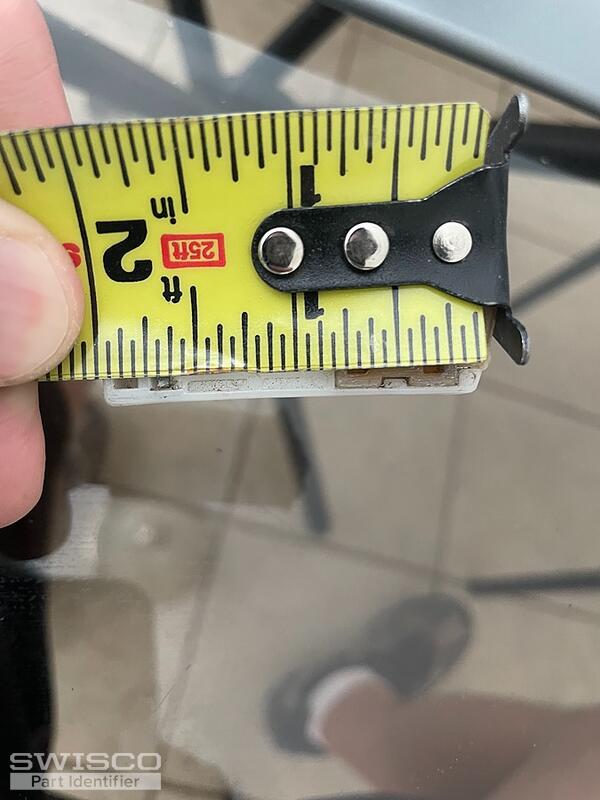

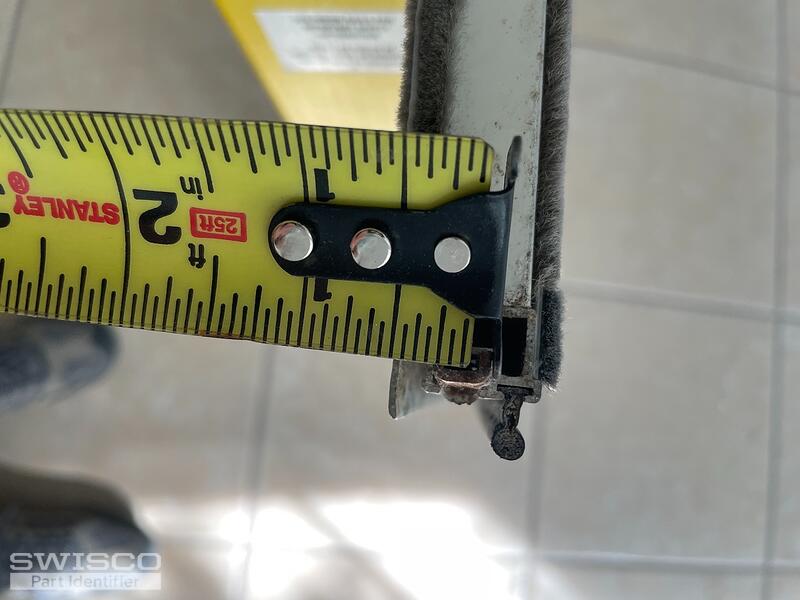

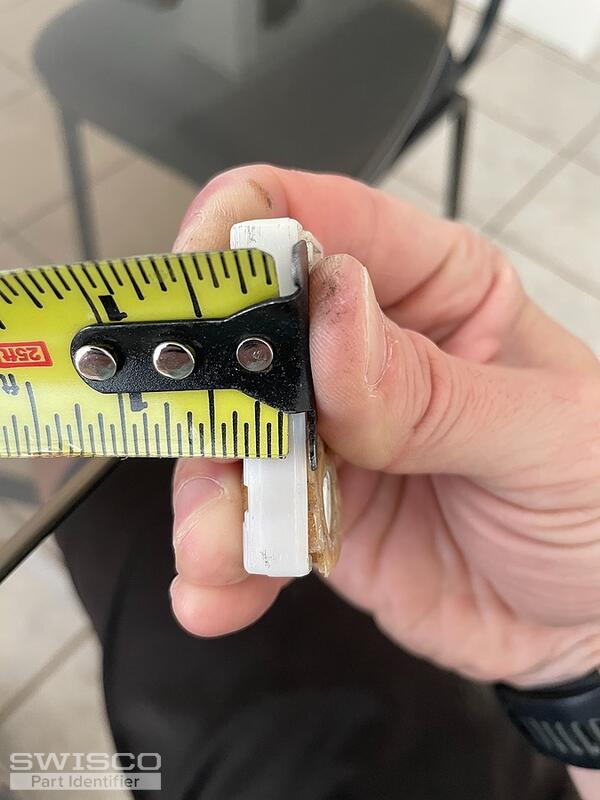

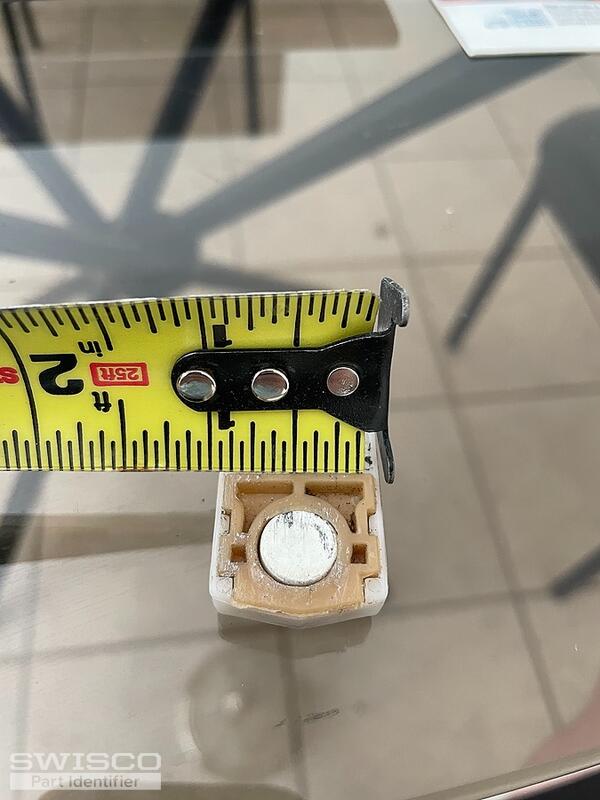

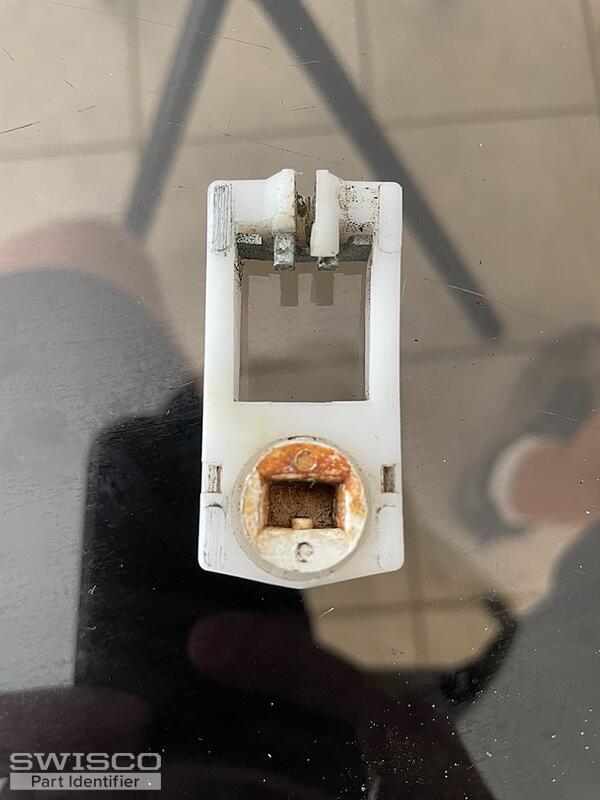

Ok. Got to the house today. Here is the pictures with all the pictures with measurements. Pls take a look. As far as i see it is wide 15/16, length 2 inches, depth/thickness 5/16 or 6/16. Depth/thickness if u see on the pictures on top and bottom on the right and left corners have a bit thicker plastic, like for sliding or some like that. So i guess 6/16 or similar. Thank you.

5 user uploaded images

Home Owner from USA

Apr 26, 2021 8:31 pm

https://www.swisco.com/discussions/Pivot-shoe-cam-to-small-77-205431

i have the same thing that u r helping this guys in the link.do you know if he ordered 15-212 and was a correct fit? course 15-134 will fit my window but cam hole is too small.pls let me know if 15-212 helped that guy and than i will order too.

Emily from SWISCO

Apr 27, 2021 8:42 am

We don't know what the other customer ordered as he never got back to us.

The 15-212 appears to be our best fit. The only way to be 100% sure is to triple check your dimensions to confirm that the 15-212 matches.

You can view our return policy here, just in case.

Home Owner from USA

Apr 27, 2021 10:52 am

i mean 15-134 is what i need,but i have bigger cam opening,so as far as i see the only option is to try 15-212 to all other guys that bought 15-134 and was too small like in my case. i just dont see anywhere where guys ordered 15-212 and said that something didnt fit like 15-134. so my guess 15-212 helped all those guys. i placed an order for 15-212,and if it will be the right match i will definitely post it here.pls try to ship it out asap.thank you.

Emily from SWISCO

Apr 27, 2021 12:56 pm

Thank you for your order!

If the 15-212 ends up working for what you need, please let us know!

Home Owner from USA

May 5, 2021 9:10 pm

hi. received it. and its a match.works good.thanks.

Emily from SWISCO

May 6, 2021 8:40 am

That's great! We're so happy to hear the 15-212 worked for you. I'm sure this will be helpful to others as well.
