A home owner from Lake Wales, FL says:
Hello,

Attached is a channel balance for our PGT SH-4000 single hung window that I need to replace as well as the Top Sash Guide that needs to be replaced. Please let me know what part numbers so I can order them.

Thank You
Thumbnail of the uploaded file named 1.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg

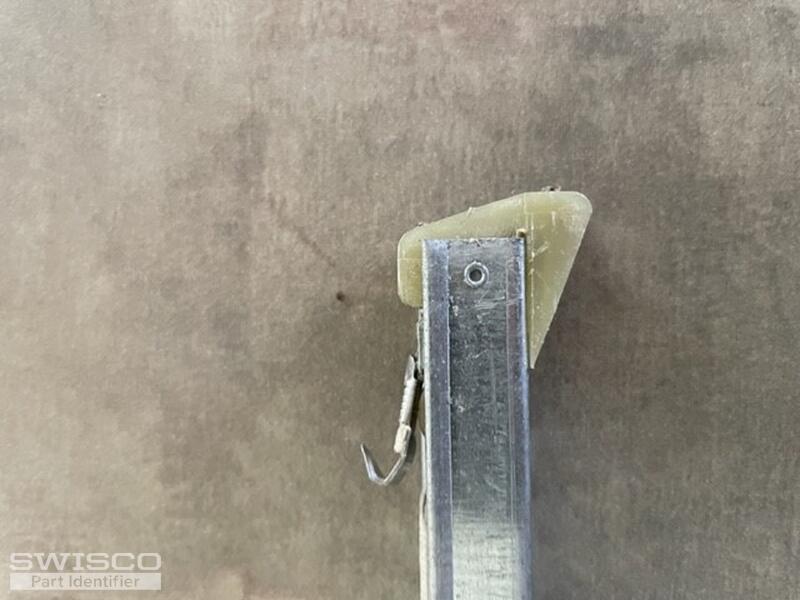

Thumbnail of the uploaded file named 4.jpg

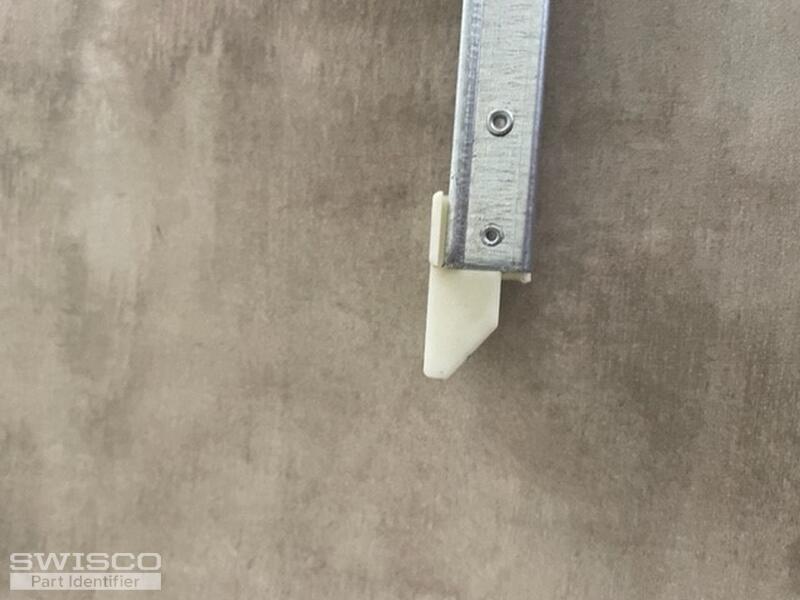

Thumbnail of the uploaded file named 5.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

As for the top sash guide, we don't have an exact match but our 18-015 is similar. I cannot guarantee that it will work due to the differences in its design but I don't believe we have anything closer.

Alternate view of 18-015
Alternate view of 18-015

Alternate view of 18-015
Alternate view of 18-015
