Parts needed for Norandex windows

Professional from 52601

Have some older Norandex windows. Hoping you can help me with the following: Double hung...bottom sash. I believe these windows were manufactured for norandex by Traci.

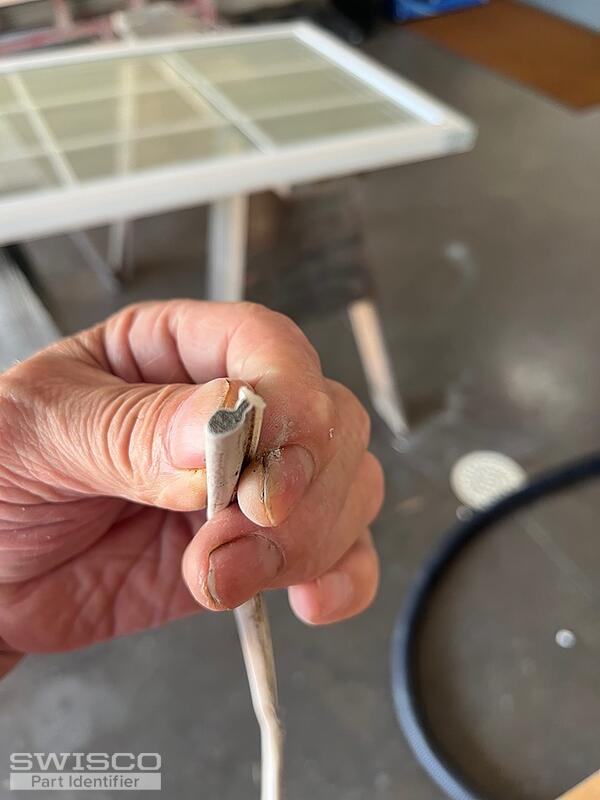

Weather strip on bottom of sash. Single 3/16" plastic T.... Bulb height is 3/8." Need white color.

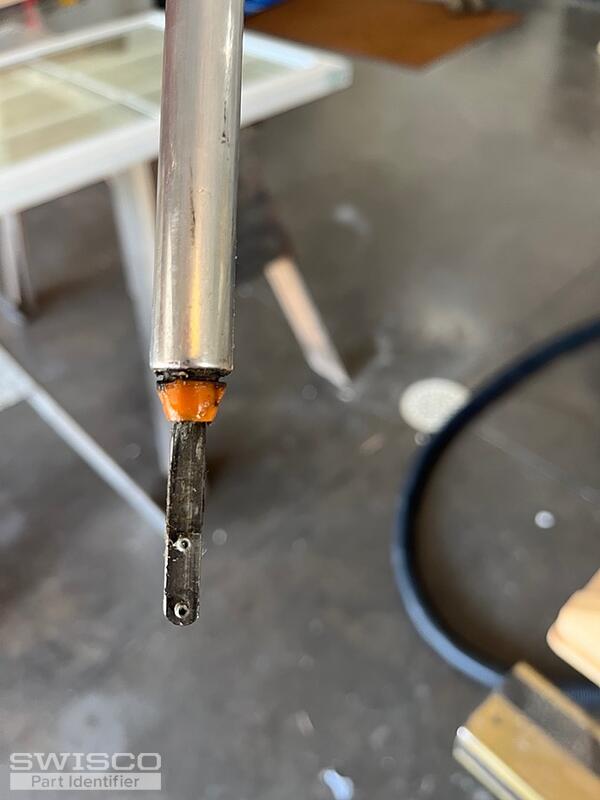

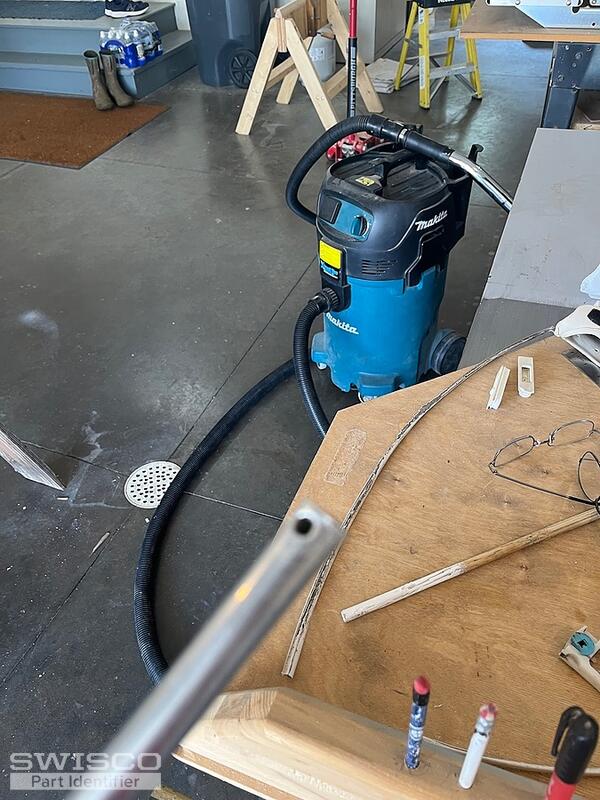

Tube type spiral spring. 9/16" diameter...27" long. Old spring is orange tipped. Sash weighs 32 lbs.

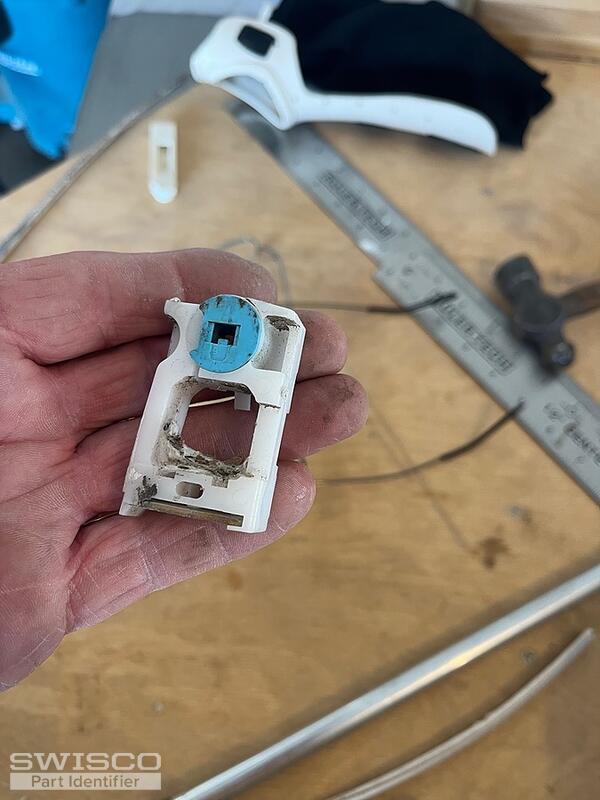

Clips inside jamb that lift spring locks into. Jamb clips are 1 1/4" x 2" x 17/32"

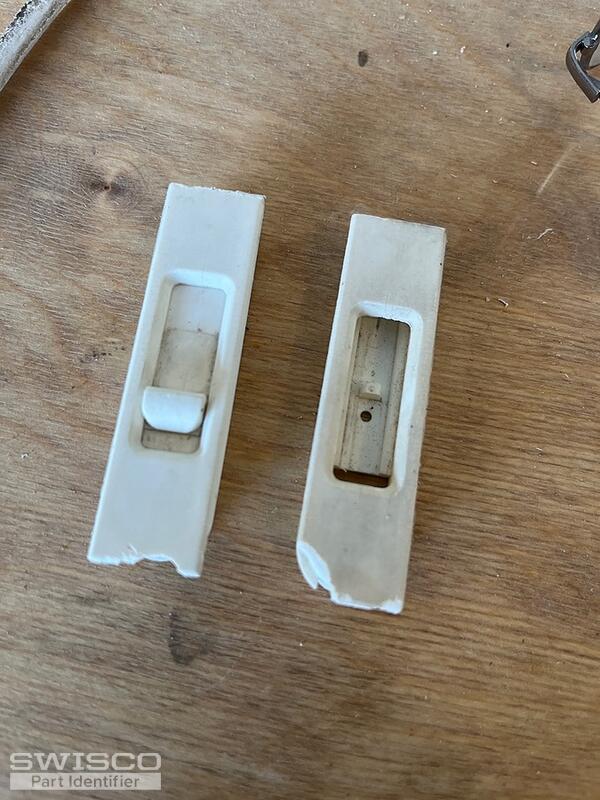

Latch clips, which holds the sash into the jamb.... 2 5/8" x 11/16 x 27/16 thick.

All the windows need work...so once I figure out your process we'll have more orders.

I cannot figure out how to insert pic into this type messaging. If you could send me an email address I can forward pics.

Looking forward to hearing back from you.

Thanks!

Steve

5 user uploaded images
5 Replies
Professional from 52601
Photo enclosed.
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Steve.

Thanks for reaching out to us. Since this is a tilt window and the tube is 9/16" in diameter, see the S600-27. For the pivot shoe and tilt latches, take a look at the 15-015, 26-243, and 26-244. We don't sell an exact match for the seal but the 58-156 comes to mind. Review the specifications for these parts and see if they match up with what you need.

Dimensions for 15-015
Dimensions for 15-015

Alternate view of 26-243
Alternate view of 26-243

Profile view of 26-243
Profile view of 26-243

Alternate view of 26-244
Alternate view of 26-244

Profile view of 26-244
Profile view of 26-244

Profile view of 58-156
Profile view of 58-156

Professional from 52601

Hello

Thanks a million for getting back to me! Quality outfit!

Everything you sent me matches up with my needs...however, I need both left and right of the 15-015..Is there a number?

Also need the number for the jamb spreading tool.

Is there an order form or do I call this in???

Appreciate the help...looking forward to getting these ordered..

Thanks!

Steve

Emily
Emily from SWISCO
SWISCO
Expert

Great, Steve! I'm glad everything matches. Concerning the 15-015, this can work on either the left or right hand size window interchangeably. For the jamb spreaders, see our 75-069

All orders can be placed directly on our site at your convenience. You can also give us a call at (888) 991-1929 and we'd be happy to place the order for you! Whatever is easiest.
