Parts ID

A quick learner from Ozark, Missouri says:
August 26, 2022

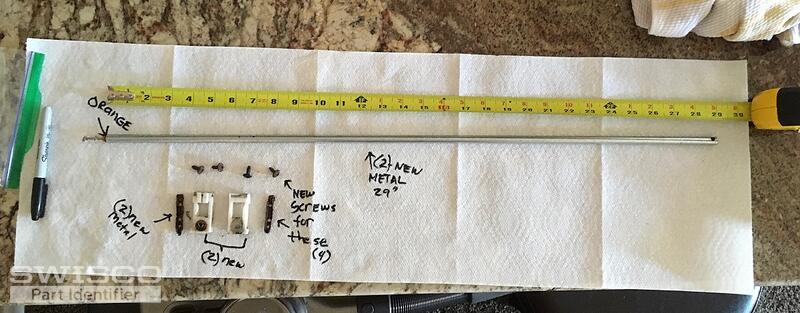

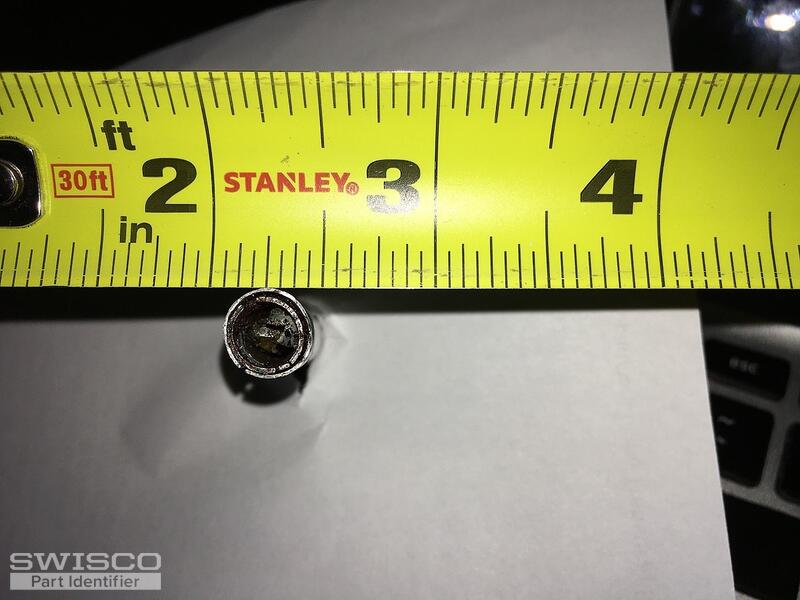

Hello. I am a returning customer. I have to order a few 29" balancers with orange tips (I guess that is "red" in your description). The diameter of the metal part is 7/16 and the screw hole diameter is 3/16.

I can seem to find the parts for that balancer. Also can you help me with the other two parts (photo above)?

Thanks.

Katy

Thumbnail of the uploaded file named
Thumbnail of the uploaded file named IMG_7734-1.jpeg
Thumbnail of the uploaded file named IMG_7738.jpeg
Thumbnail of the uploaded file named IMG_7739.jpeg
Thumbnail of the uploaded file named IMG_7743.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 29, 2022

Hello,

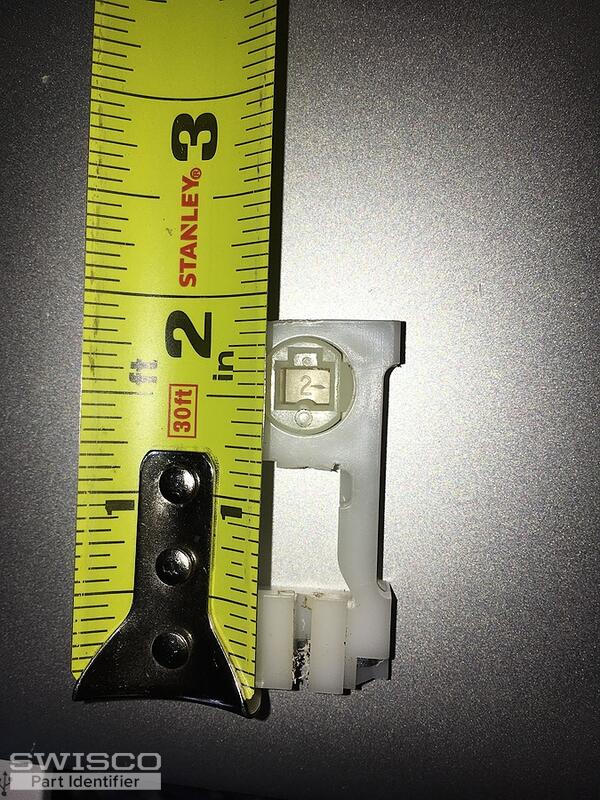

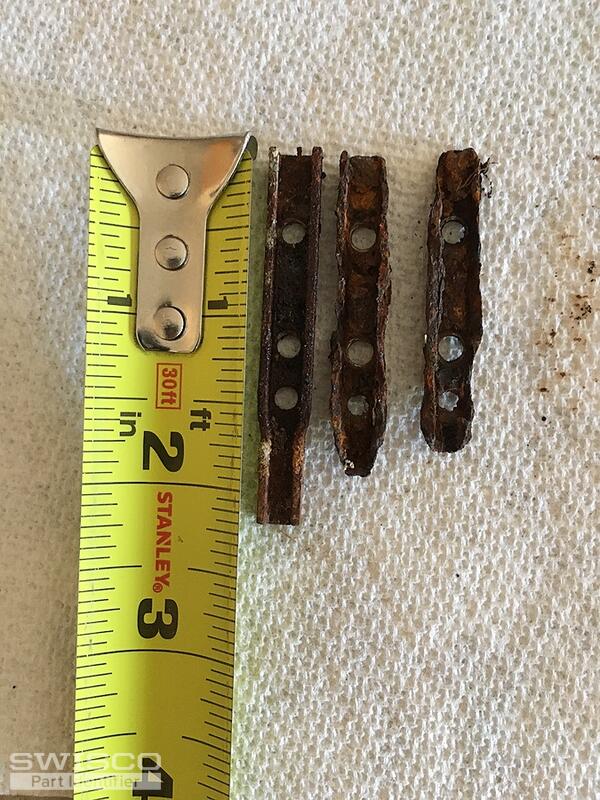

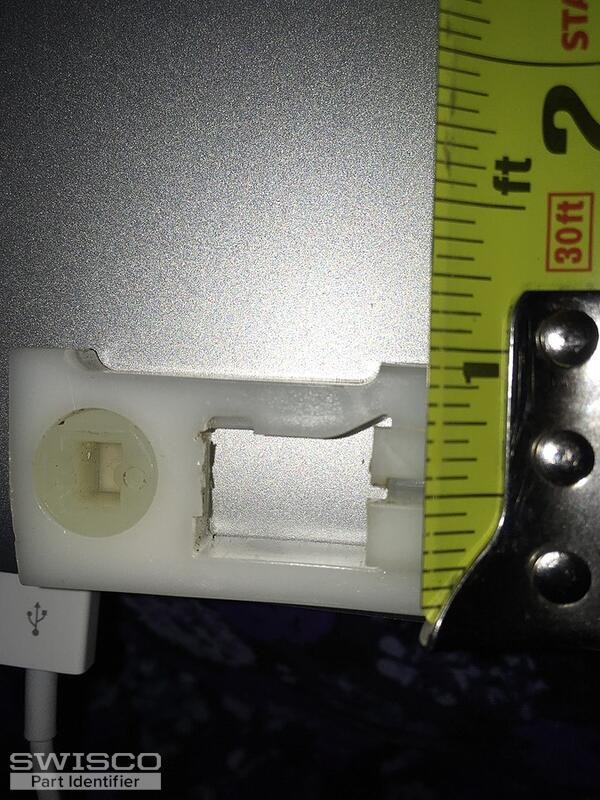

Looking at your photos, I believe you have the S900-29 spiral balance with a red bearing, along with the 15-045 shoe and 26-297 tilt bar. I'm not sure about the screws but take a look at the options we've related for you. If they don't match your original screws, I'd recommend bringing yours to a local hardware store so that they can match you up with replacements. Thanks for posting.

Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-045
$1.85
Pivot Bar, 2 1/4"
Pivot Bar, 2 1/4"
26-297
$1.47
29" Series 900 Spiral Balance
29" Series 900 Spiral Balance
S900-29
$9.15
#8 x 1/2" Trus Head Stainless Steel Phillips Screw
#8 x 1/2" Trus Head Stainless Steel Phillips Screw
33-073
$0.28
Phillips Pan 8-32 x 3/8" Self-Tapping SS Machine Screw
Phillips Pan 8-32 x 3/8" Self-Tapping SS Machine Screw
33-096
$0.37
