Parts ID

Question

Looking to identify replacement parts for my double hung windows. Brought through 84 Lumber based on stickers. 8500 series. 2005 is year home built and matches manufacture date stamped on window of 04/07/2005. Windows are double pane.

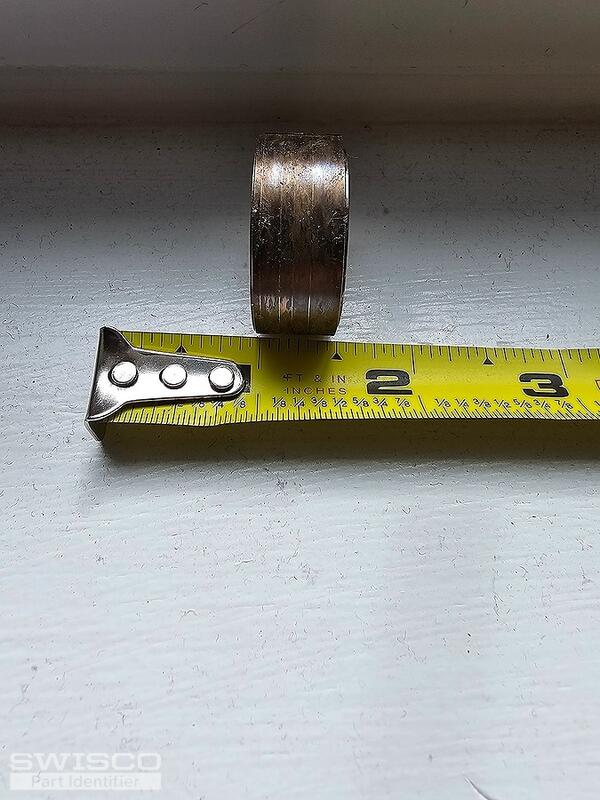

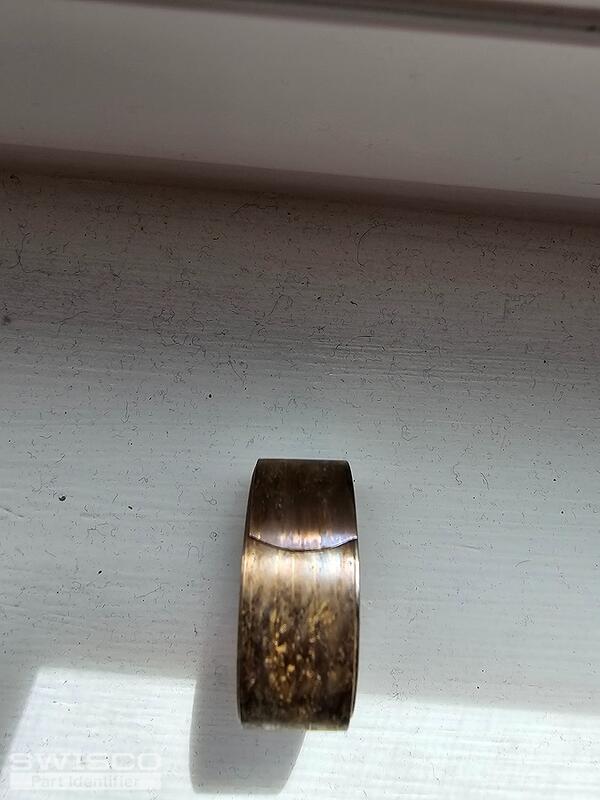

Want to replenish coils (not just the two broken ones) and the bottom parts since I am going to take them out. I can send more pictures if need be.

I do all my own maintenance and have an extensive maintenance background in electronics repair and vehicle repairs.

Leon

Lauren · Accepted Answer

Hello, thank you for posting,

Please review the style and dimensions of the 15-180 balance shoe that is compatible with the Series 190 coil springs. The spring should have a number stamped on the metal that indicates the weighted option needed.

Alternate image for 15-180

If no markings are visible, please provide the weight of the window sash to move forward. Also see the 15-186 balance clip if needed.

Let us know what you think and if you have any additional questions!
