Parts Identify

Question

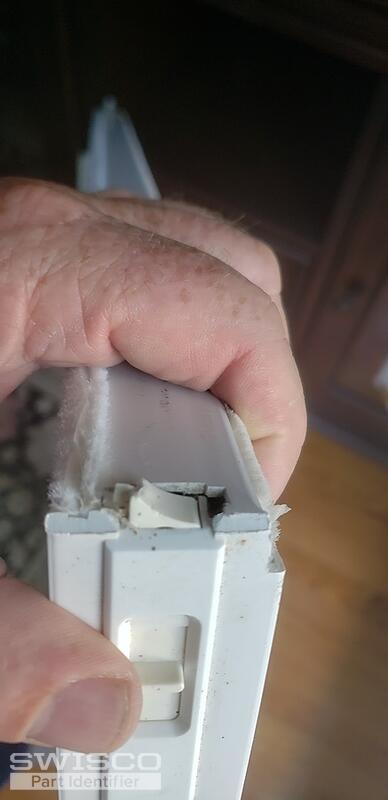

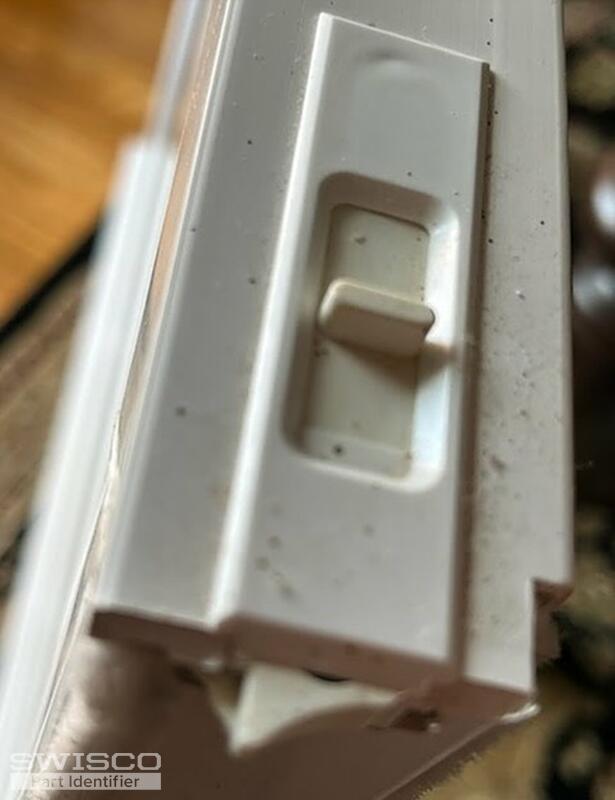

One of the things I notice is that they have a 1/4 round cover over the Spring location that I do not see on other windows the two side releases are shaped to Tilt latches-fit over that instead of straight. I would think your straight ones might also work if you did not have this particular one. Notice on the side of the sash that these are not very deep as some are

Now I also need the Felt with plastic center weatherstrips for the sides and the bottom has a flap that is about 1/8" to 3/16" you can see it has a broken chip in these photos probably because it is now brittle on all of the windows from UV rays. Any and all parts you can locate for me on these to bring them back to a new working condition would be great! I have a few more photos as well but think these may be all you need.

Casey · Accepted Answer

Hello,

Unfortunately, we do not carry an exact match for your tilt latch but our 26-243 and 26-244 are similar. Please note that ours does not have the same curved locking tooth, which would interfere with the balance assembly in some cases. If you decide to give them a try and run into any problems, you can find our return policy here.

As for your weatherstripping, we would need to see an end profile photo of your plastic seal removed from the sash to compare to our inventory. You would also need to remove a piece of the wool pile to compare to the backing width and pile height of our replacement options here. Thank you!

Alternate view of 26-244

Profile view of 26-244
