Parts Versa-Sash

A quick learner from Palm City, FL says:
Size of spring for versa sash is 36 inches long.

I need new channel balance spring and top sash guide. same size as 10-015 PGT guide previously ordered.
Thumbnail of the uploaded file named thumbnail_IMG_1196.jpg
Thumbnail of the uploaded file named thumbnail_IMG_1197.jpg
Thumbnail of the uploaded file named thumbnail_IMG_2206.jpg

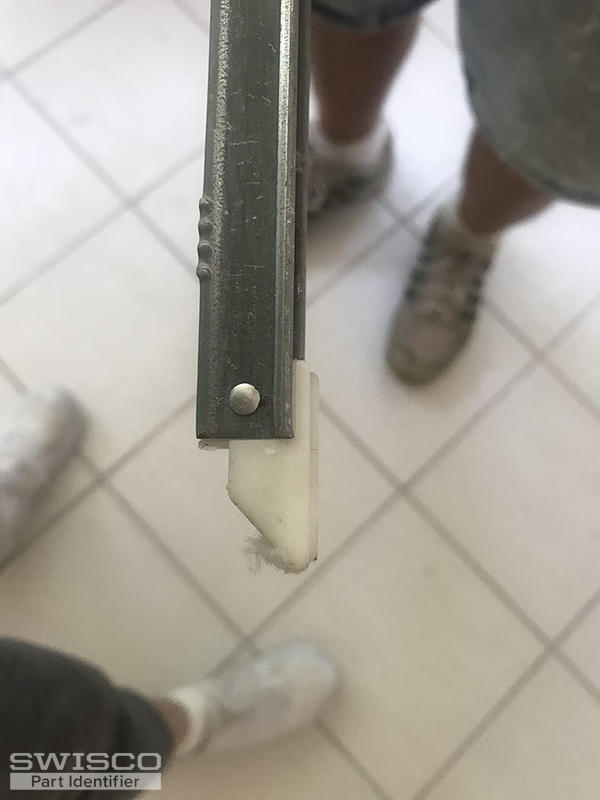

Thumbnail of the uploaded file named thumbnail_IMG_2208.jpg

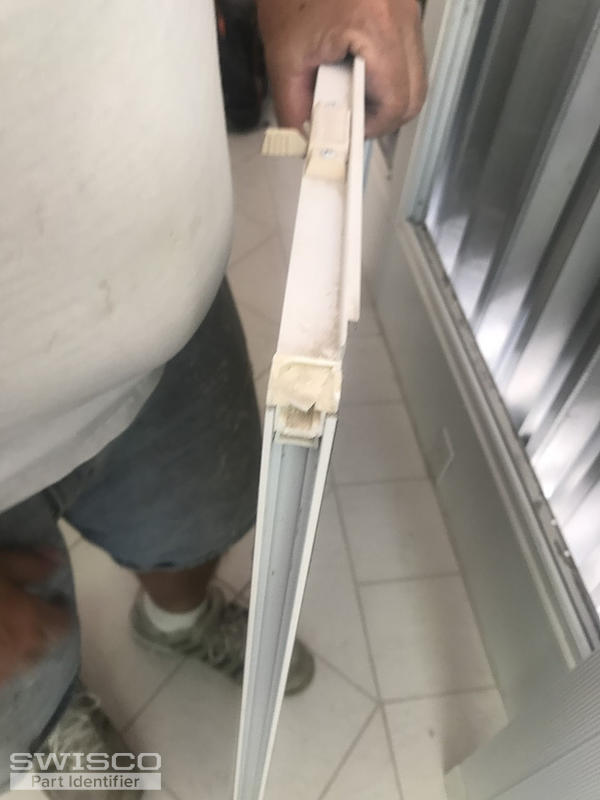

Thumbnail of the uploaded file named thumbnail_IMG_2210.jpg
A quick learner from Palm City, FL says:
Additional photos

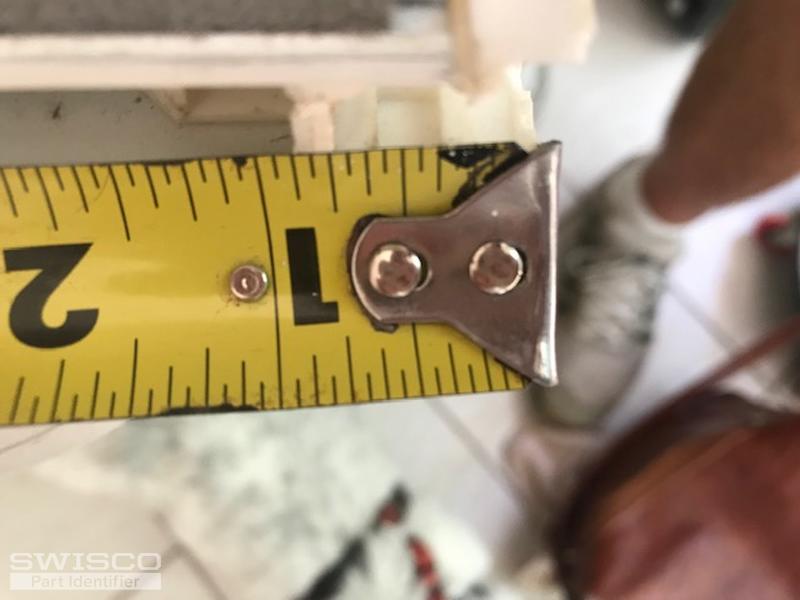

Thumbnail of the uploaded file named thumbnail_IMG_2218.jpg

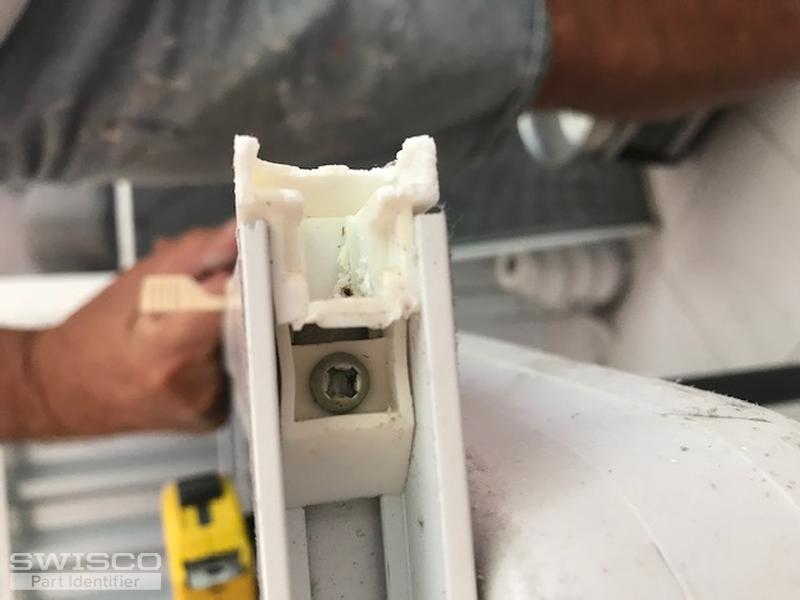

Thumbnail of the uploaded file named thumbnail_IMG_2219.jpg
A quick learner from Palm City, FL says:
Additional photos

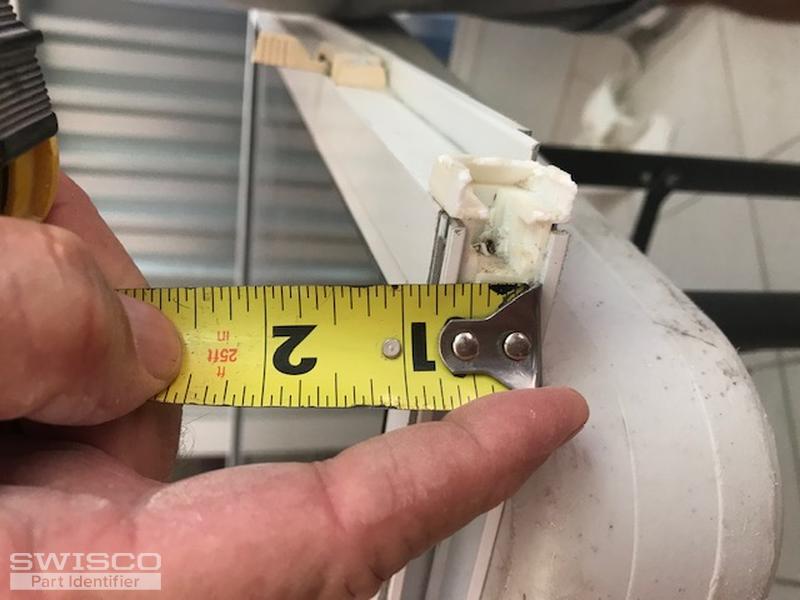

Thumbnail of the uploaded file named thumbnail_IMG_2222.jpg

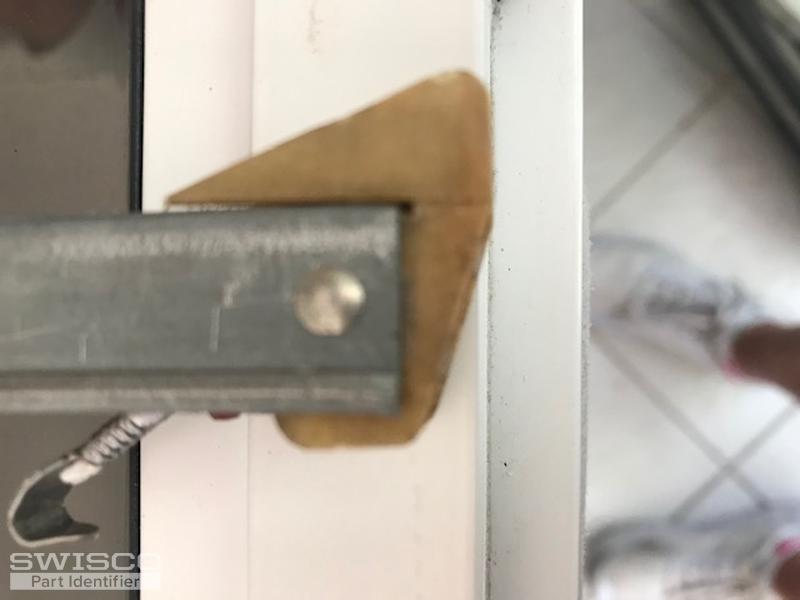

Thumbnail of the uploaded file named thumbnail_IMG_2223.jpg

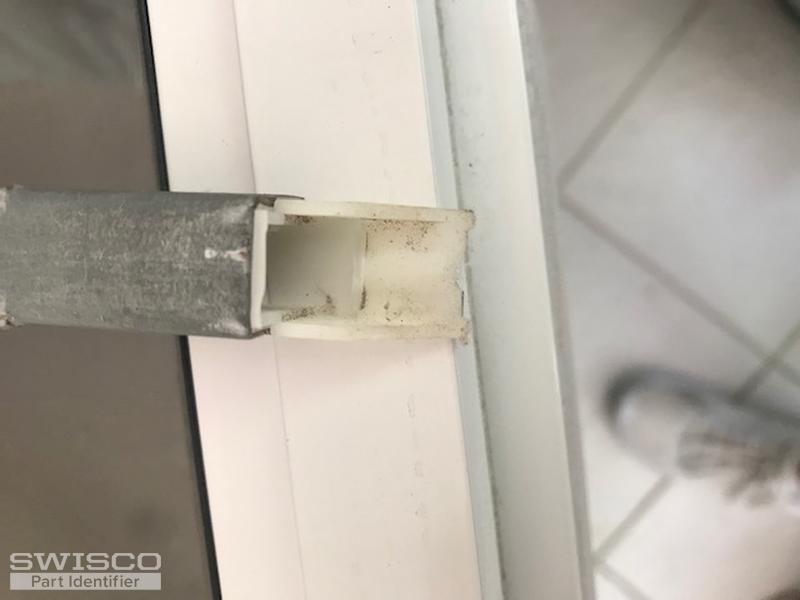

Thumbnail of the uploaded file named thumbnail_IMG_2224.jpg

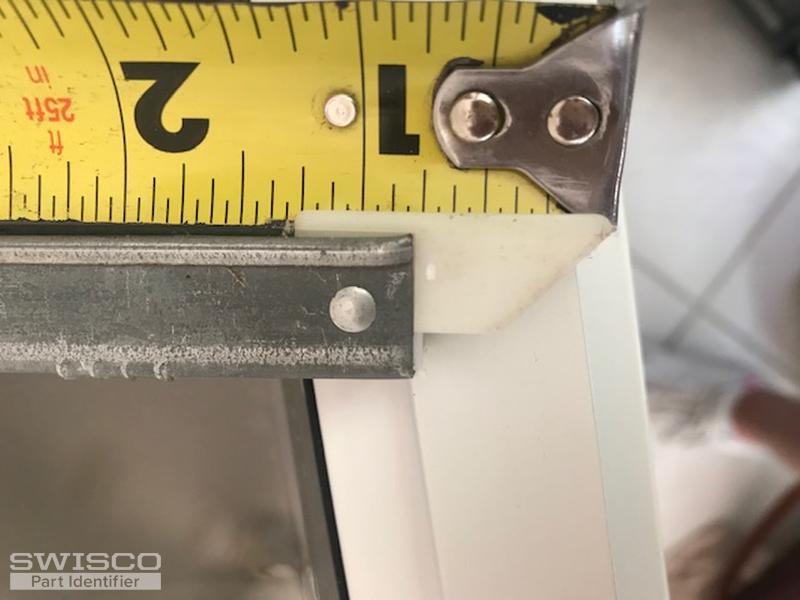

Thumbnail of the uploaded file named thumbnail_IMG_2225.jpg

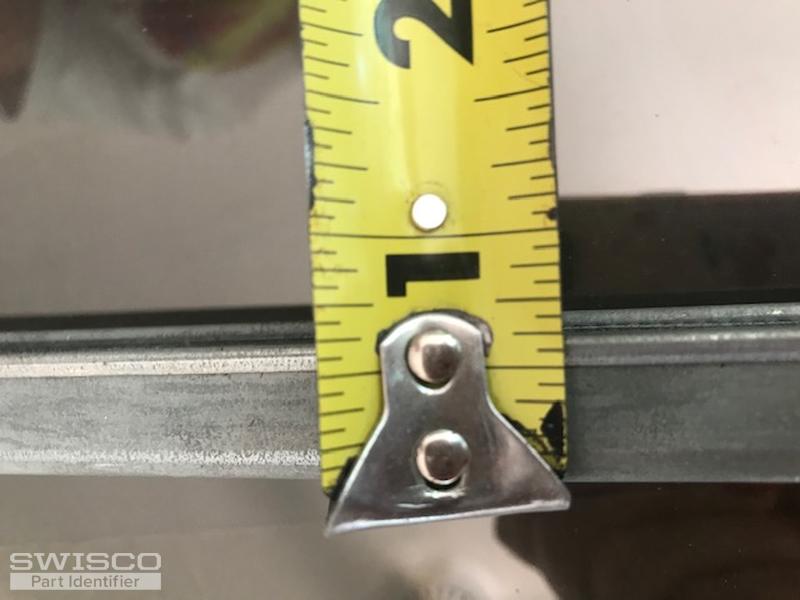

Thumbnail of the uploaded file named thumbnail_IMG_2227.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our Series 351 or Series 390, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Your top sash guide is a bit too damaged to be 100% sure about, but our 18-110B is close. Start here and see what you think.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner from Palm City, FL says:
Thanks for your help. I'll check it out.
