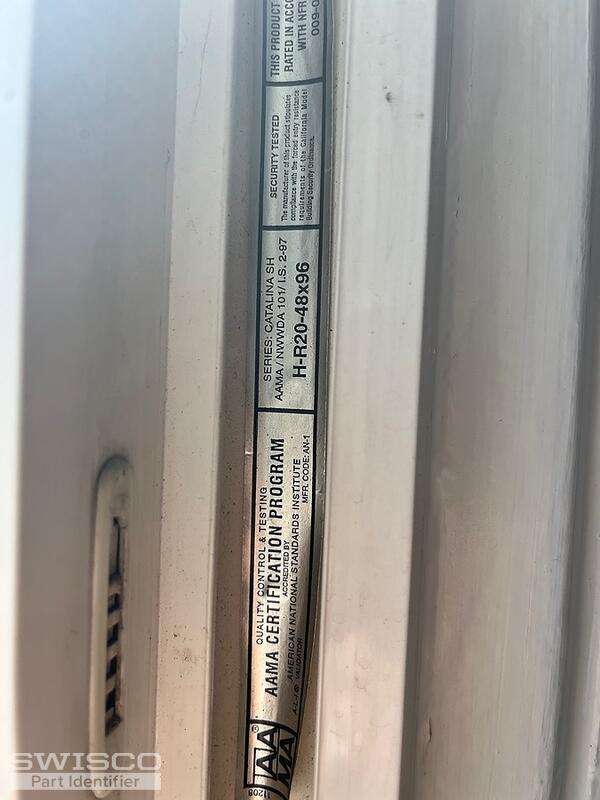

Parts for- Catalina SH

A home owner from Rocklin California says:
August 10, 2022

I need pivot bar 20

Pivot shoe 4

Springs , windows single opening is 27.5x17' 4

Window Locks 4

Thumbnail of the uploaded file named A93F8BAB-EDC9-4AC0-874F-247075A78B8E.jpeg
Thumbnail of the uploaded file named 6A0A886B-EC41-46E2-BF13-BECB85E5BCCA.jpeg
Thumbnail of the uploaded file named 29DD807E-F5FE-4AE7-90CF-B0E11711382A.jpeg
Thumbnail of the uploaded file named D2805E93-E52D-45D6-84CE-E429A6E27A17.jpeg
Thumbnail of the uploaded file named AD4746D0-BF27-4D85-AA19-293953B9DF3F.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 12, 2022

Hello!

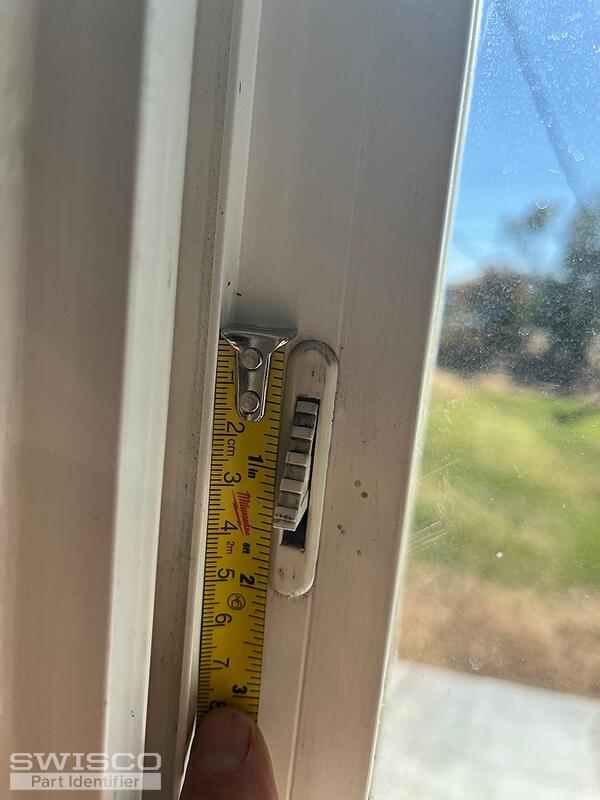

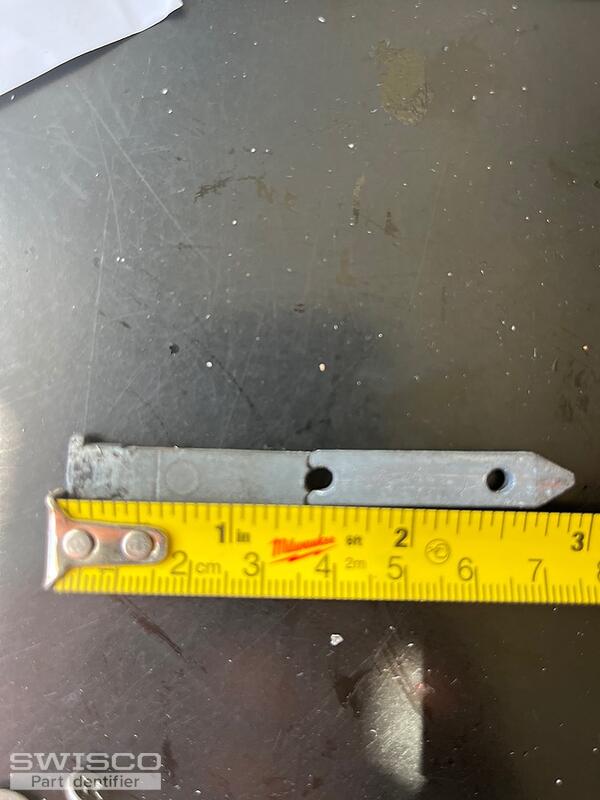

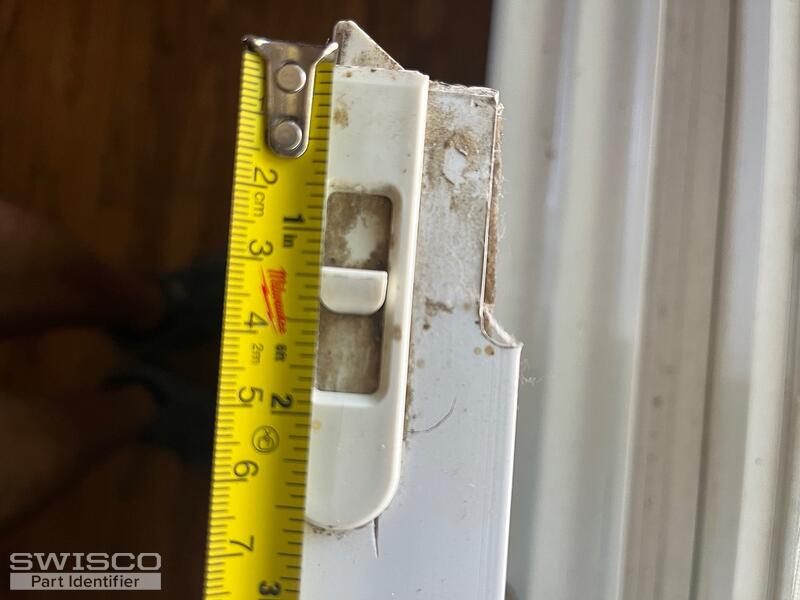

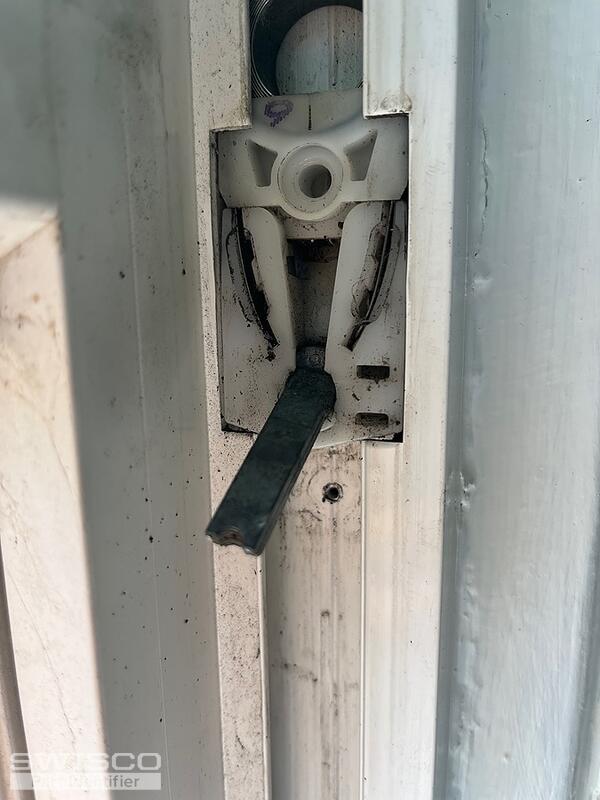

You pivot shoe appears to be a match for our S140-9 but look over the specifications and see what you think. As for the hardware shown in your other photos, see our 26-122 vent latch, 26-405 pivot bar and 26-243 & 26-244 tilt latches. Review the dimensions for each of these parts and compare them with yours to confirm they match the original hardware.
Vent Latch
Vent Latch
26-122
$1.97
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
9 lb Series 140 Quick-Tilt, Single
9 lb Series 140 Quick-Tilt, Single
S140-09
$9.12
