Parts for Simonton Windows

Question

Hello,

I see the label on the windows as "Simonton Windows 2197733/09 35.5000 59.5000 PFSHWI F0355 31.5625 27.1875 Norandex, Inc./Allentown 6/05/98 24255".

I need the following parts now and later some other parts:
Pivot Shoe x 20
Coil Balance x 20
Tilt Latch (as seen in the picture) x 20

Best Regards
Faruk

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the style of the 26-243 and 26-244 tilt latches. Compare the dimensions to your originals to confirm a good fit!

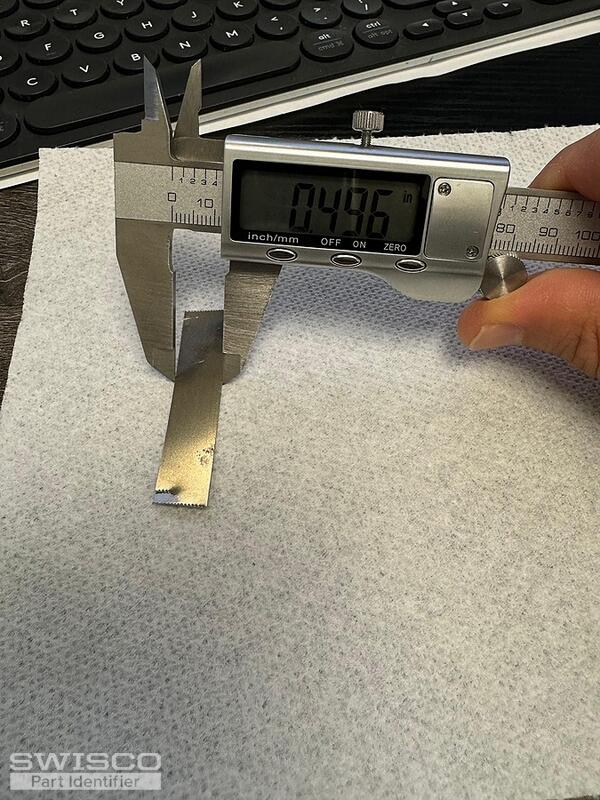

For the coil balances, we will need to see pictures of the original pivot shoe and coil springs. We will also need to know if the coil springs are a 1/2" or 3/8" thick. Please also review the springs for any number markings. If no markings are present, we will need to know the weight of the window sash. (The sash will need to be removed and placed on a bathroom scale.) From there we can determine the best fit for your window. Thank you!
