Parts for crankout Bay window

Home Owner from Rosemount MN

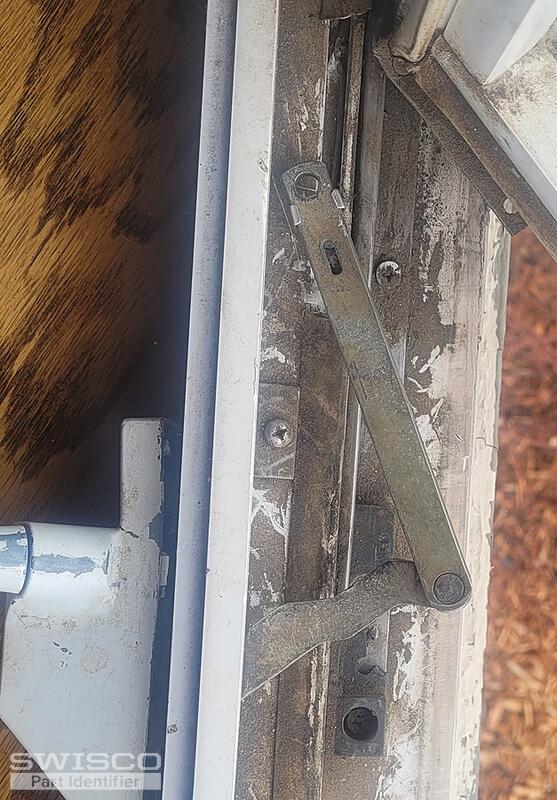

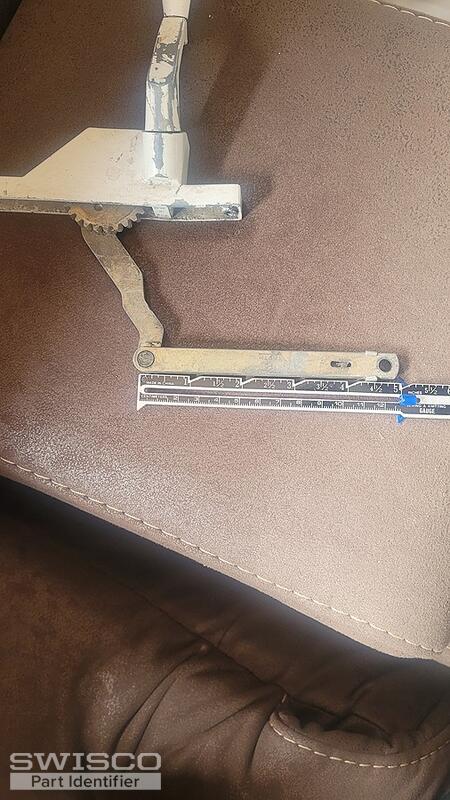

I am hoping that you have the parts I need for both my right and left Bay windows.I have other pictures if they would be of help. I have gone to a couple of stores but have not found what I need.
5 user uploaded images
5 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

You'll need the 39-187 and 39-188 Sash Dyad Cranks to repair your existing operators. Be sure to compare the dimensions and the shape of the gear arm to confirm that these are the right replacements.

The compatible handle is the 39-114L Crank Handle.

Dimensions for 39-187
Dimensions for 39-187

Home Owner from Rosemount MN
Jasmine, yes these are the correct parts. I matched my measurements to yours in the above pic. Cannot thank you enough for your help and quick response!
Home Owner from Rosemount MN
Jasmine, yes these are the correct parts. I matched my measurements to yours in the above pic. Cannot thank you enough for your help and quick response!
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

I'm glad to hear that these are the replacements needed for your repairs. Please don't hesitate to reach out with any other hardware repair projects you might have.

Have a great day!
