Parts for sliding window

A home owner from Minnesote says:
June 1, 2021

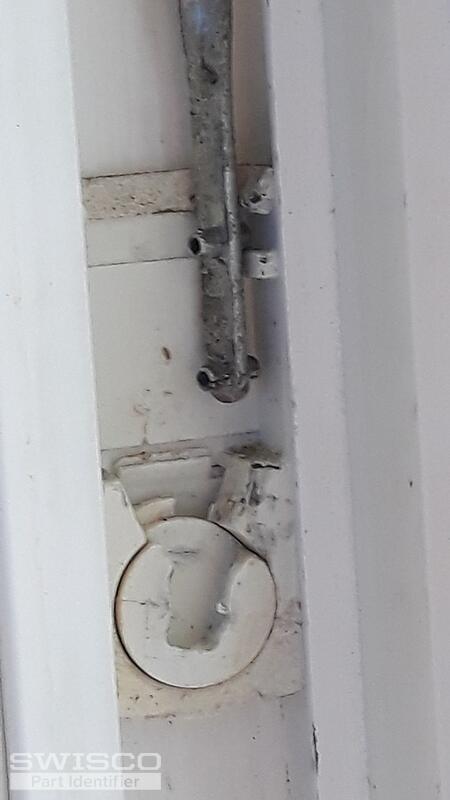

The window assist are broken, the lead keepers are busted out of holders that help lift window. One picture shows the lead keeper holding the rods which are connected to slide. Hoping you can help me out, thank you Don

Thumbnail of the uploaded file named 20210601_155545.jpg
Thumbnail of the uploaded file named 20210601_155526.jpg
Thumbnail of the uploaded file named 20210517_162053.jpg
Thumbnail of the uploaded file named 20210517_161035.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 4, 2021

Hi, Don.

It looks like you're referring to your pivot shoe. We'll need to see an undamaged pivot shoe removed from your window to compare to our inventory. We will also need to know the thickness and width of it.

Thank you!
A home owner from Minnesote says:
June 15, 2021

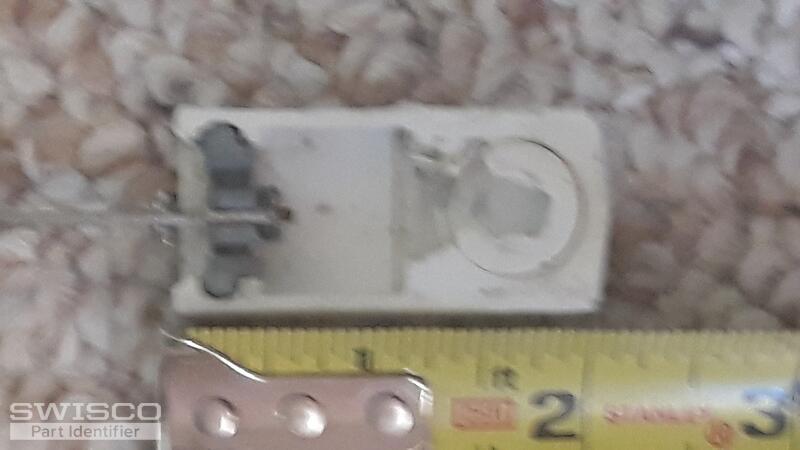

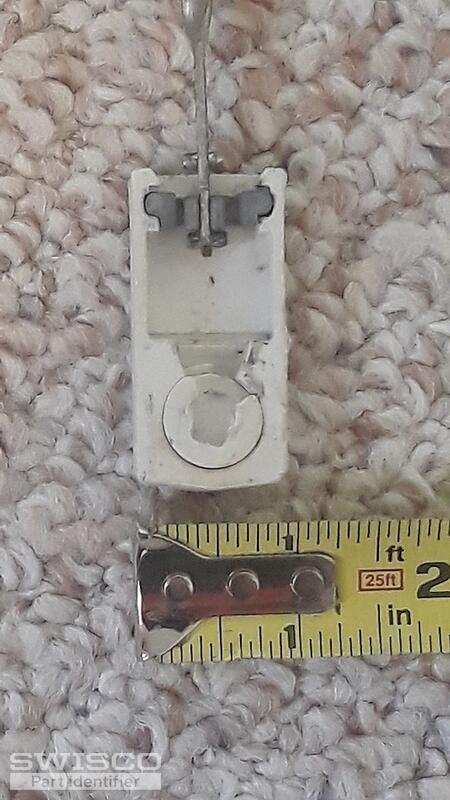

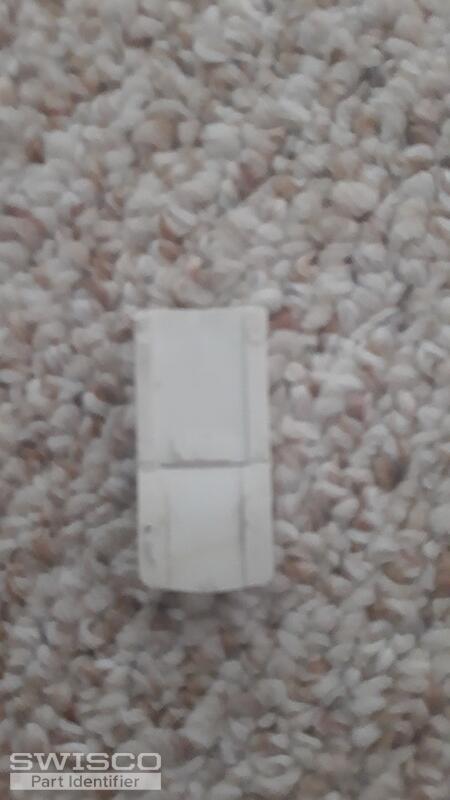

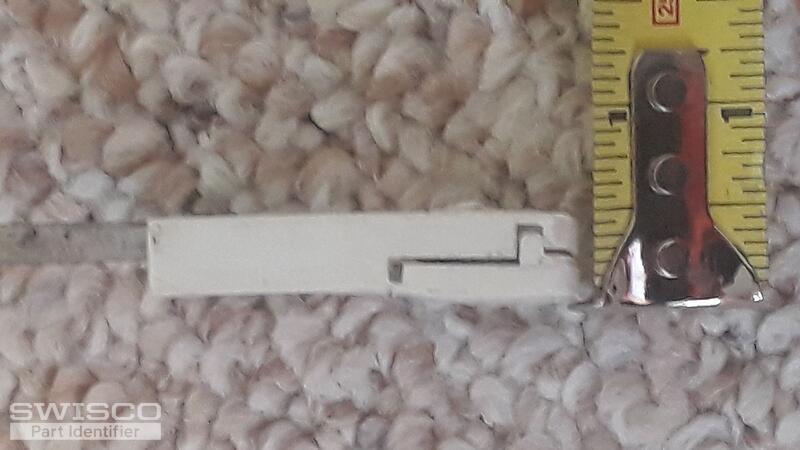

Heres photos I hope will help, let me know if theres anything else that might help. Thanks
Thumbnail of the uploaded file named 20210613_112957.jpg
Thumbnail of the uploaded file named 20210613_113013.jpg
Thumbnail of the uploaded file named 20210613_113100.jpg
Thumbnail of the uploaded file named 20210613_114319.jpg
Profile picture of Paul
Paul from SWISCO responded:
June 15, 2021

Your hardware looks like the discontinued Carefree window pivot shoe. We carry the 15-134 with our 26-297 pivot bar as a substitute. Look these over and see what you think.
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
Pivot Bar, 2 1/4"
Pivot Bar, 2 1/4"
26-297
$1.45
