Parts for windows

Home Owner from NY

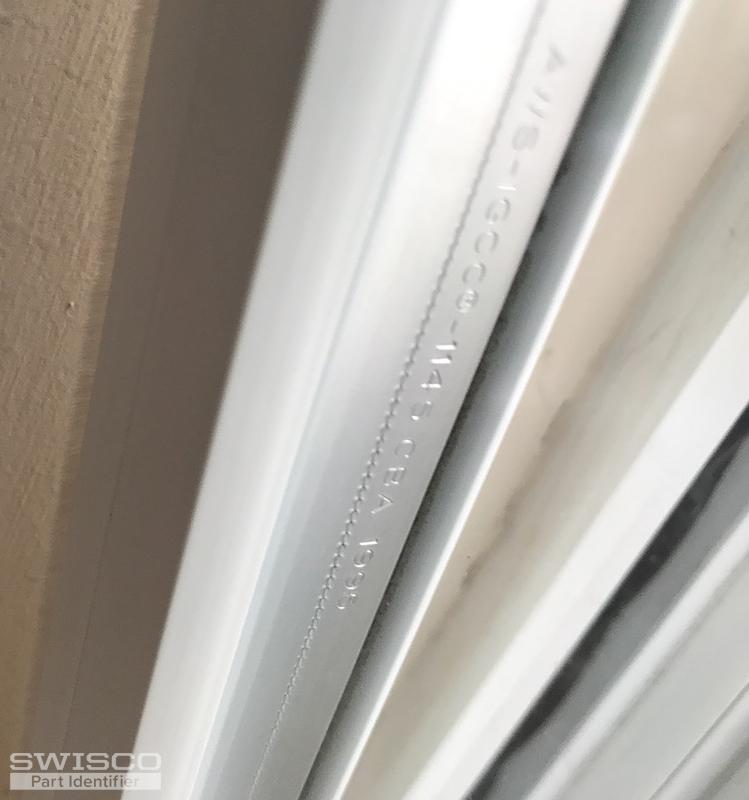

Hi, the pictures show the parts that I need and the window code Year etc.
I need

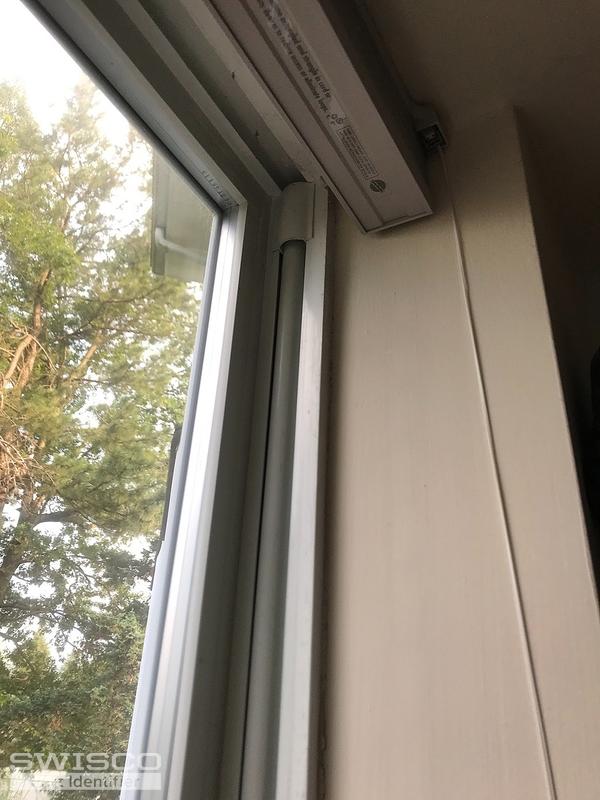

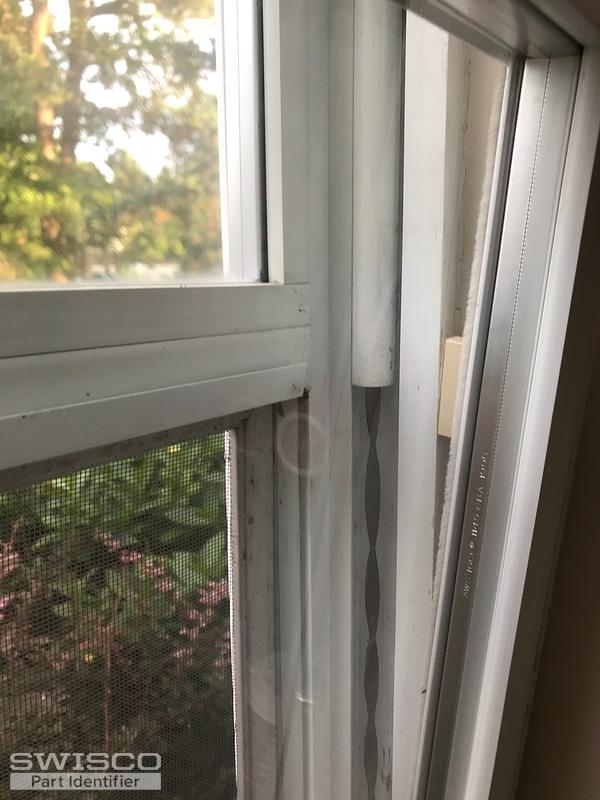

1) the white vinyl tube that covers the spiral balance
2) the white small vinyl (rectangle) part at the top of spiral balance

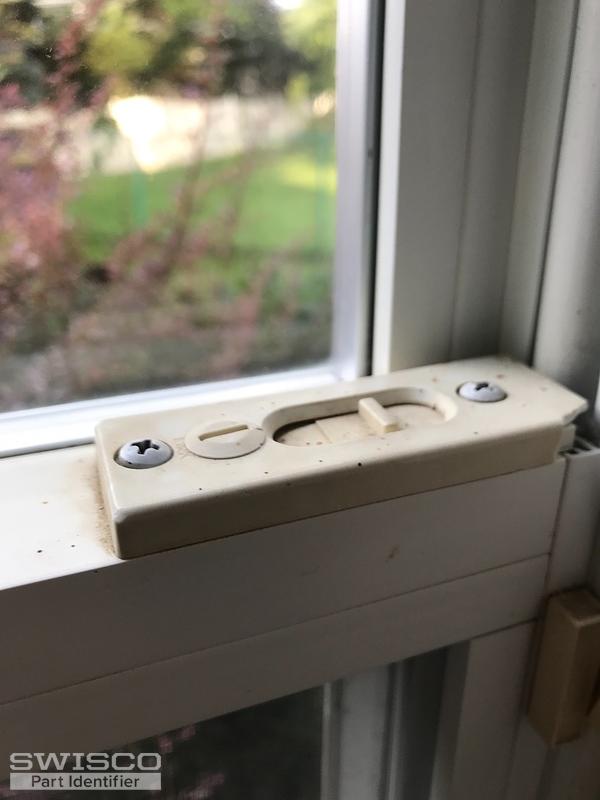

3) tilt latch
4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Please compare our 26-078 and 26-079 top tilt latch dimensions to yours. I think these look pretty similar, but it will depend on how well the sizes match up.

That square top is a window stop that we unfortunately aren't able to supply. That said, you only need at least one per sash to prevent the sash to go up too far. You could theoretically take one from a window that has both and use it here.

The balance looks like our 5/8" diameter Series 600 spiral balance. Our tubes are made of metal but it should work the same way.
