Replacement parts for 051-482055

A home owner from Virgina says:

Hi we have a few broken window parts and need help identifying replacements.

Also figured I would replace a few broken spring assembly and pivot lock shoes if possible. The only identifying sticker we can find is attached

Thank you!

Thumbnail of the uploaded file named 20210124_143637.jpg
Thumbnail of the uploaded file named 20210124_144317.jpg
Thumbnail of the uploaded file named 20210124_150515.jpg

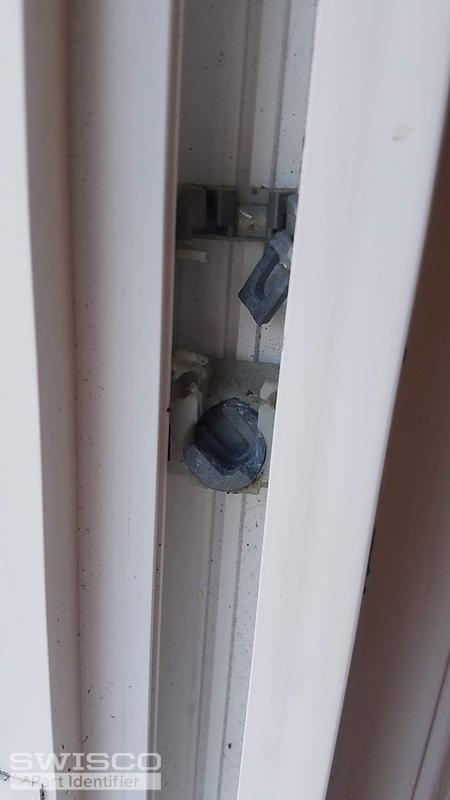

Thumbnail of the uploaded file named 20210124_150519.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I agree that as long as our dimensions match up to yours, the 26-226 pivot bar looks like a match. As for the pivot shoe, I'd recommend removing yours and comparing the width and thickness to our 15-178 and 15-188. Unfortunately, the metal cam is not sold separately.

We'd also need to see a photo of your channel balance removed from the window to confirm a replacement but the 15-143 terminal clip shown in your photo is commonly used with our S770 channel balance. Take a look and see if this is the balance you need. Thank you!
