Casement parts help

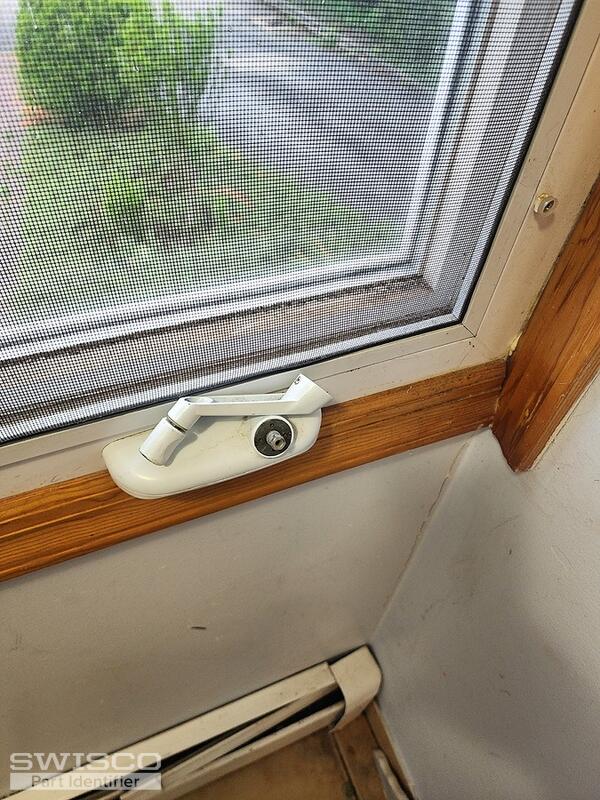

Hello there. This looks like the ROTO 39-091 and 39-092 Short-Arm Operator. I am afraid ROTO no longer makes the bracket arm that connects the operator short arm to the window sash, so you'll need to reuse your old one if possible. For a compatible handle, see the 39-224 sold separately.

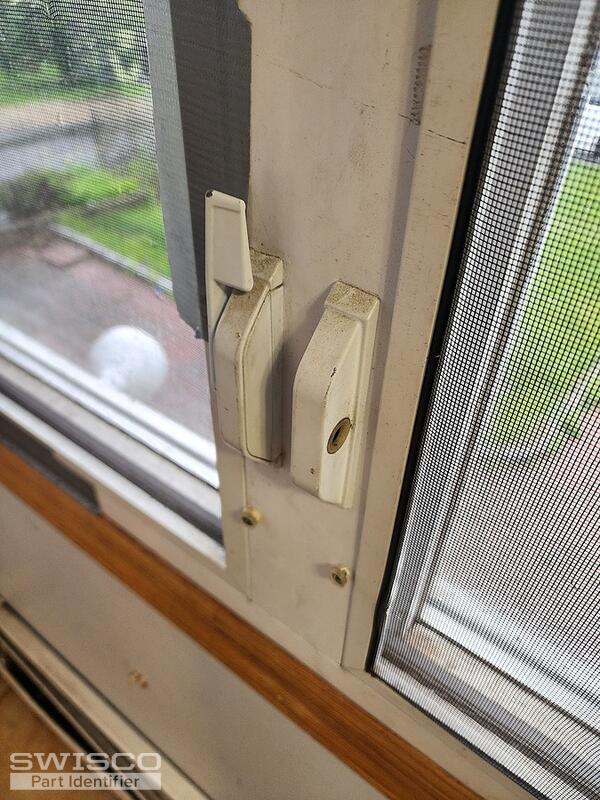

For the casement lock, start by looking at the 38-138 or 38-139. One of these might be what you need, depending on the projection of the fork in the rear. See what you think.
Sure thing, Joe. See our Return Policy here.

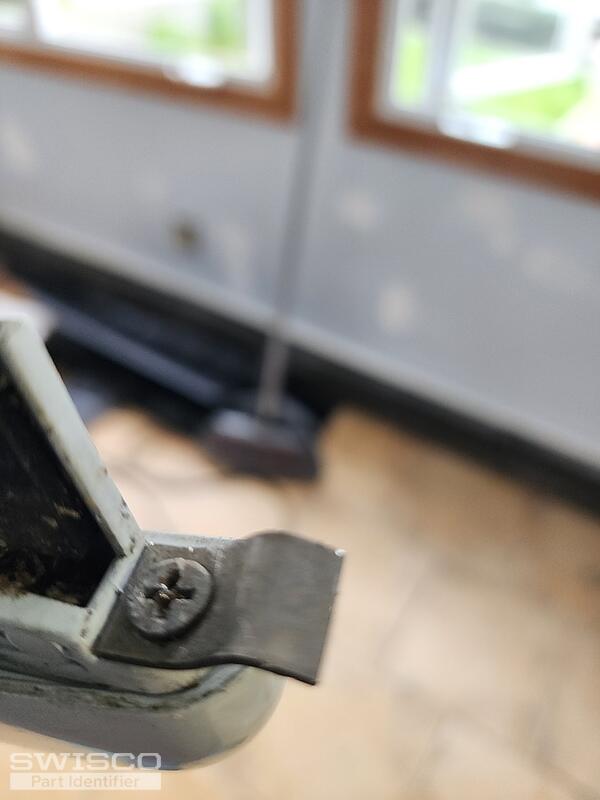

Is the washer installed somewhere on your window? If so, please show us a more zoomed-out photo of its location and elaborate on its function. Thank you.

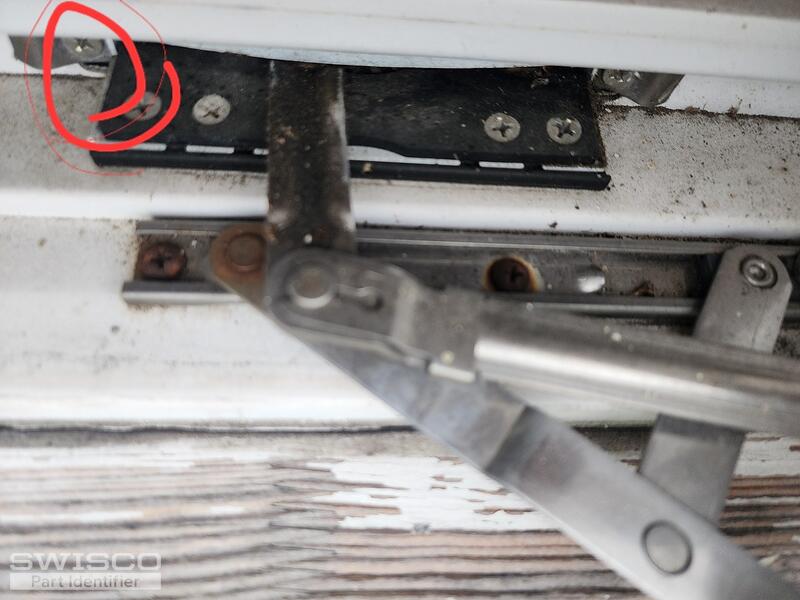

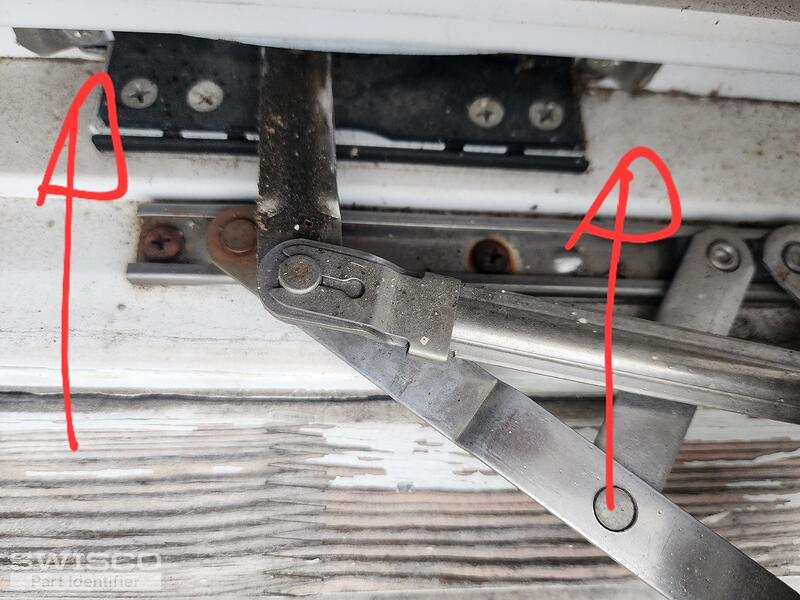

Thanks for clarifying. I merged this request with your original post for these casement operators and locks. Unfortunately, we do not carry these side mounting tabs for Roto 39-091 and 39-092 operators. They may have been discontinued along with the link arm, as Bob explained previously. We apologize for the inconvenience.
