Parts needed

A quick learner from Texas says:
October 19, 2022

Good evening,

I need the parts pictured. Chime metal clip to hold the side spring at the top of the track. Gray metal pin screwed into the window that locates into the side spring rail. Lastly the bronze latch that goes in the top of the window to lock it in the side track. I'm not 100% on these terms so please forgive me. First time dealing with windows like this. If more information is need please don't hesitate to contact me. Thank you.

Have a great day,

Brian

Thumbnail of the uploaded file named 002CE5E9-3CA6-4F5E-8804-997E9C8C8E34.jpeg
Thumbnail of the uploaded file named A86D80F0-589E-4BC9-9481-65BE3400CE4B.jpeg
Thumbnail of the uploaded file named 22CC9C76-74B8-454B-8F6B-9F0281675F92.jpeg

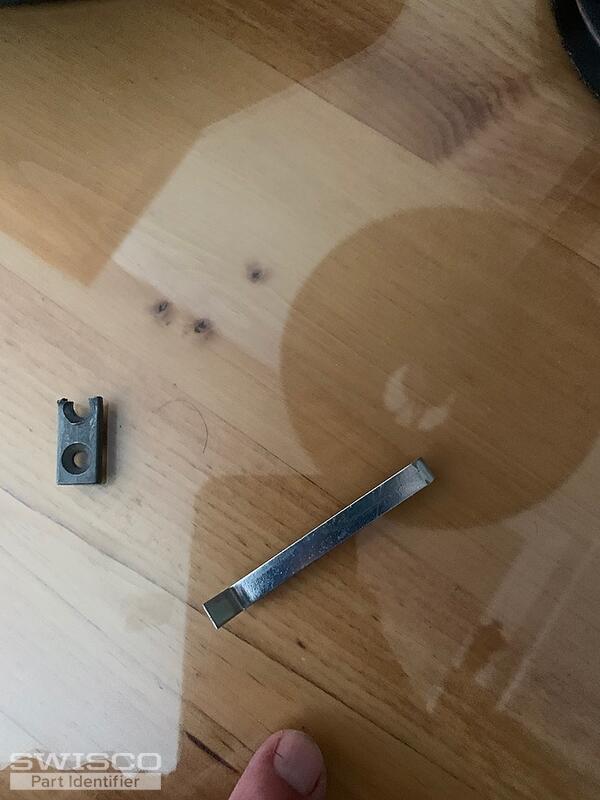

Thumbnail of the uploaded file named 4CAC4743-A059-4300-963B-39818B3B056A.jpeg

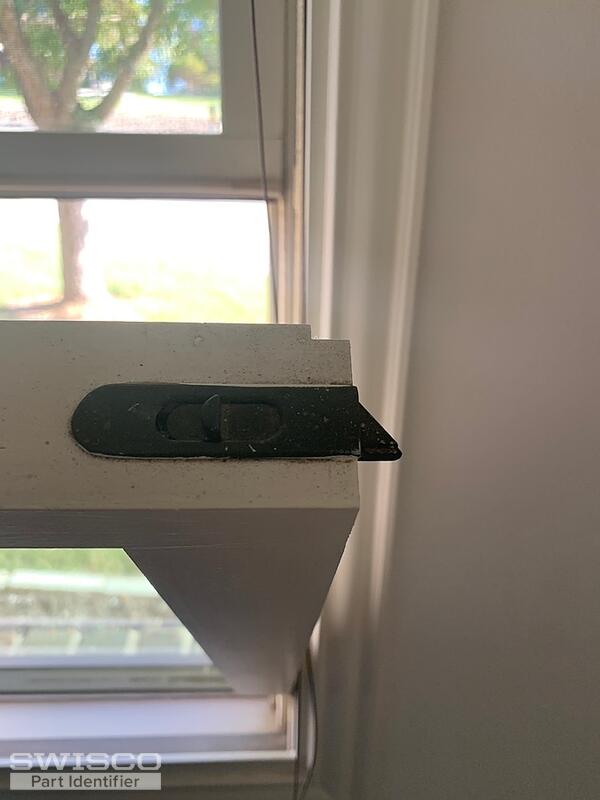

Thumbnail of the uploaded file named 861032F0-9712-4A98-B330-FA9D1030E1D8.jpeg
Profile picture of Emily
Emily from SWISCO responded:
October 24, 2022

Hi, Brian.

Thank you for reaching out to us. I recommend you take a look at the 26-402 pivot bar and 26-442 tilt latch set, along with the 19-029 and 19-030 S clips. Carefully review the dimensions for these parts and compare them with yours to see if they match up to your old hardware.
Short S-Clip
Short S-Clip
19-029
$0.65
Long S-Clip
Long S-Clip
19-030
$0.70
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
Truth Tilt Latch Set
Truth Tilt Latch Set
26-442
$10.37
Tilt Latch Set
Tilt Latch Set
26-464
$7.98
