Parts needed

Question

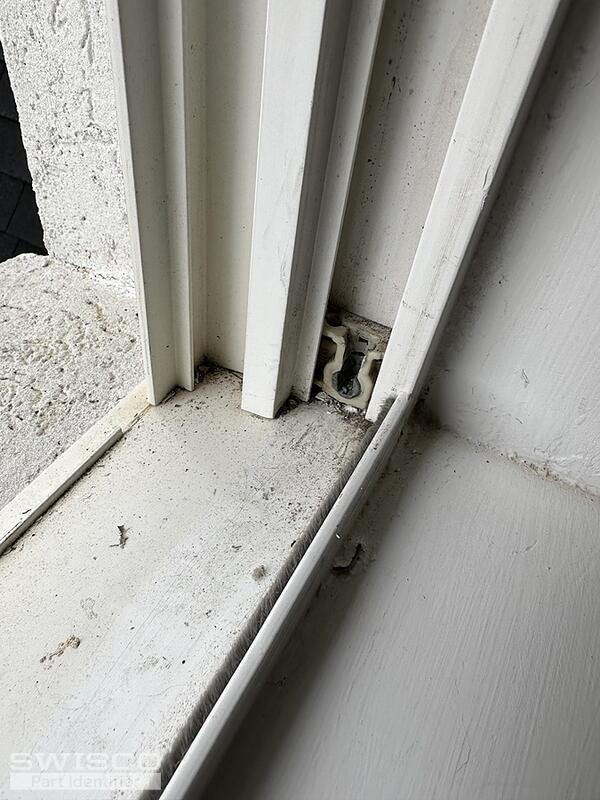

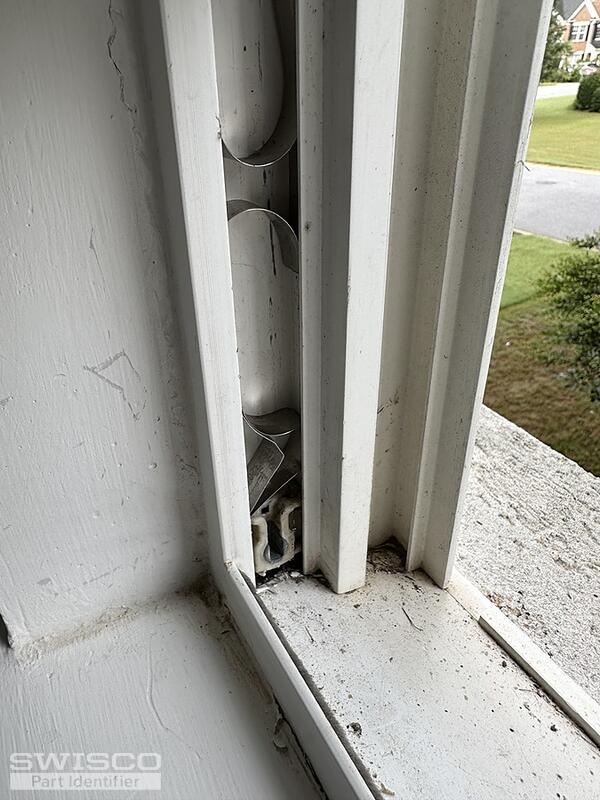

I am looking for 3 different parts. I think they are called 1. coil balance shoe 2.window double coil balance system 3. tilt window latch. Its the pieces in picture 4, 5 & 6. I do have the loose parts that we took out of the window if you need the actual pieces. I attached a picture of the only number we could find and we could not find anything with the window manufacturer either. If you can help identify these parts so I can order the quanity needed of each that would be great.

Thanks, Karin

Casey · Accepted Answer

Hello,

The pivot shoe shown in your photos looks like a match to the 15-111 shown below. This shoe uses either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs.

Alternate image for 15-111

As for your tilt latches, take a look and compare the specifications of the 26-243 and 26-244 to an undamaged latch from one of your windows. Thank you!

Alternate view of 26-244

Profile view of 26-244
