Parts needed for a tilt window

Question

Hello,

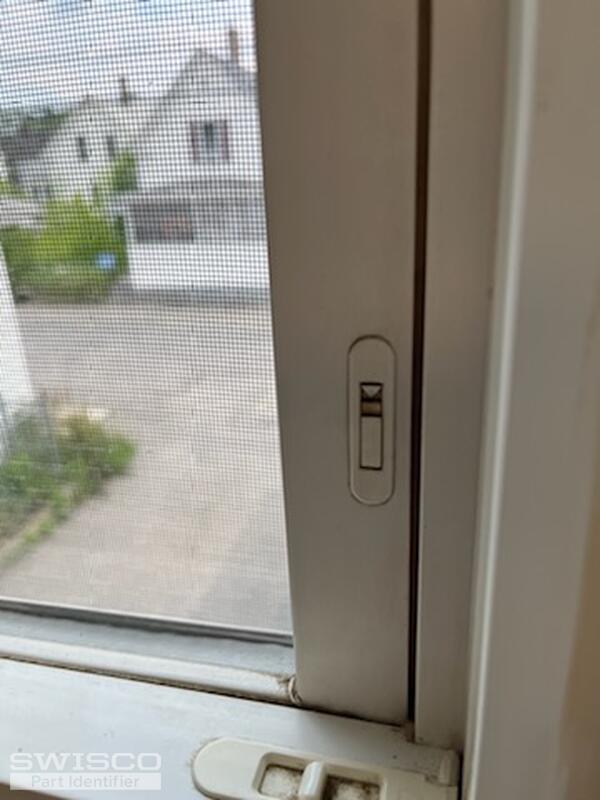

These pictures were sent to me from our maintainance department. Any help in identifying what parts we need would be helpful.

Thank you!

Casey · Accepted Answer

Hello,

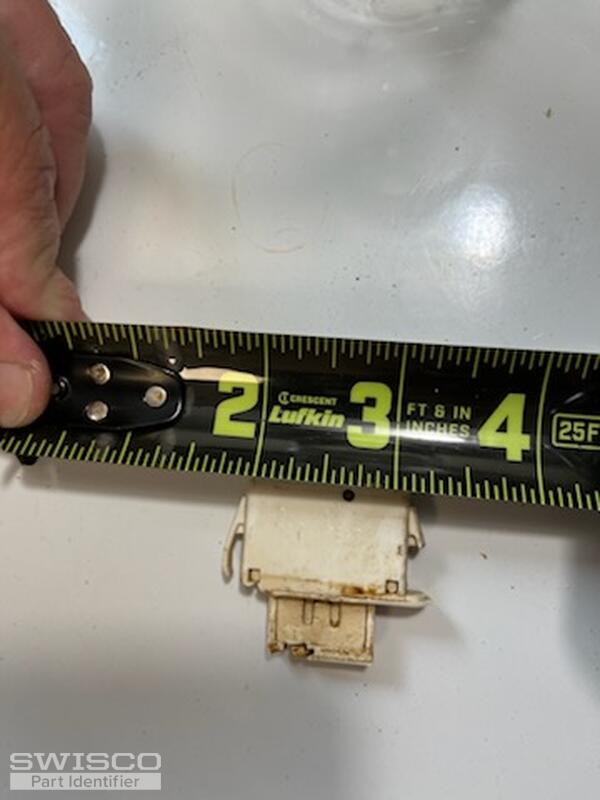

Your photos resemble the 26-362 vent latch. Take a look and see how the dimensions below compare to yours. In order to remove the old lock, you'll need to slide something like a putty knife under the flange to force it out of the cutout.

Alternate image for 26-362

Alternate view of 26-362

Diagram of the cutout for the 26-362 vent latch

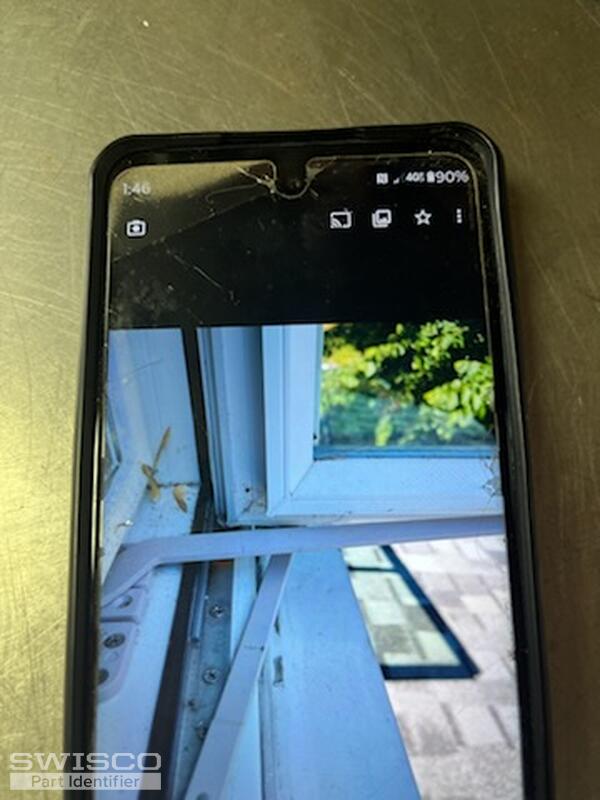

As for the operator, we'll need to see the base and confirm the length of the arm that moves the sash to narrow down your options. Thank you!
