Parts needed for repair Certainteed windows

Handy Person from Maryland
Apr 27, 2024 1:30 pm

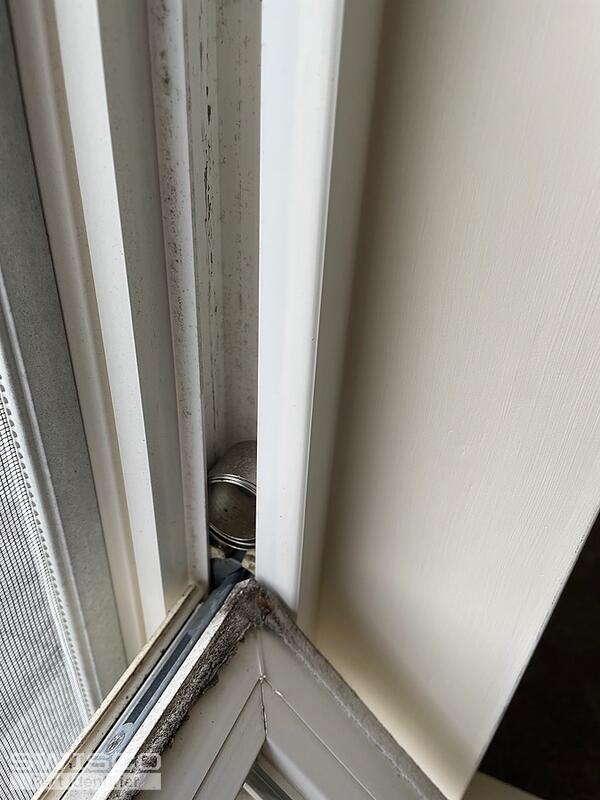

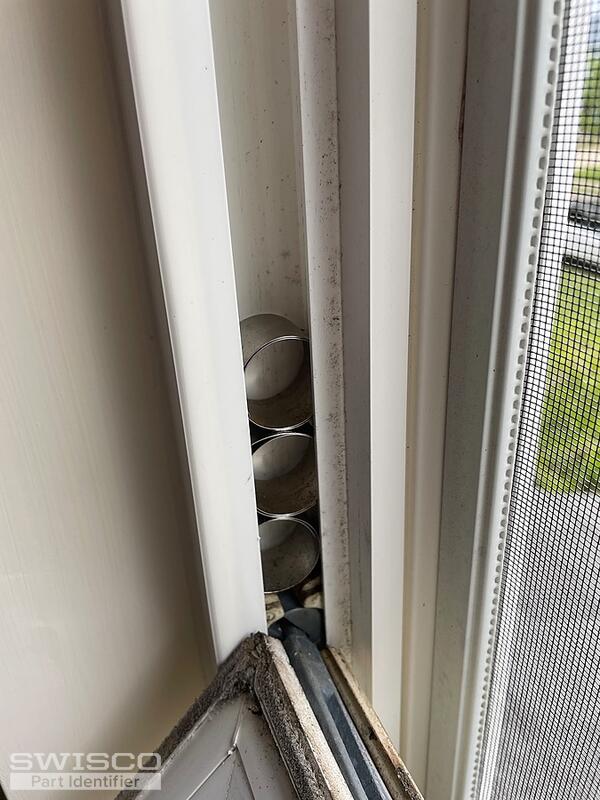

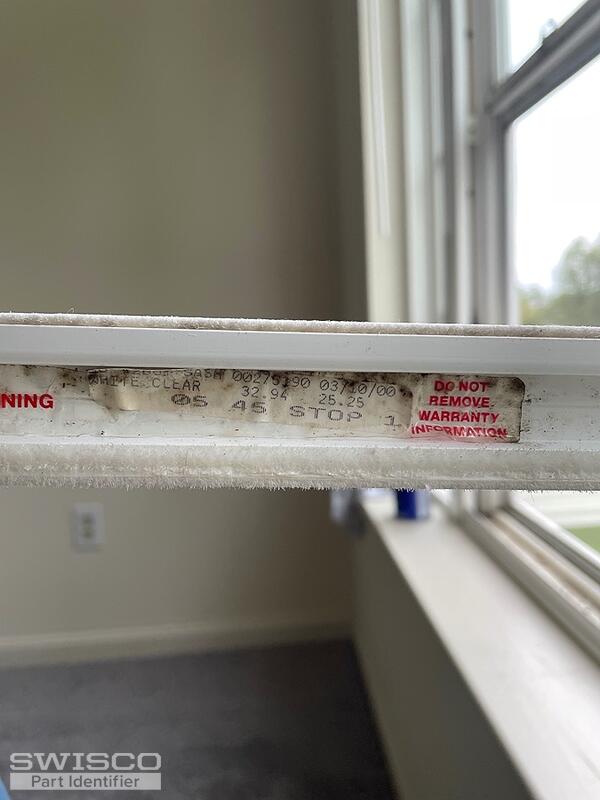

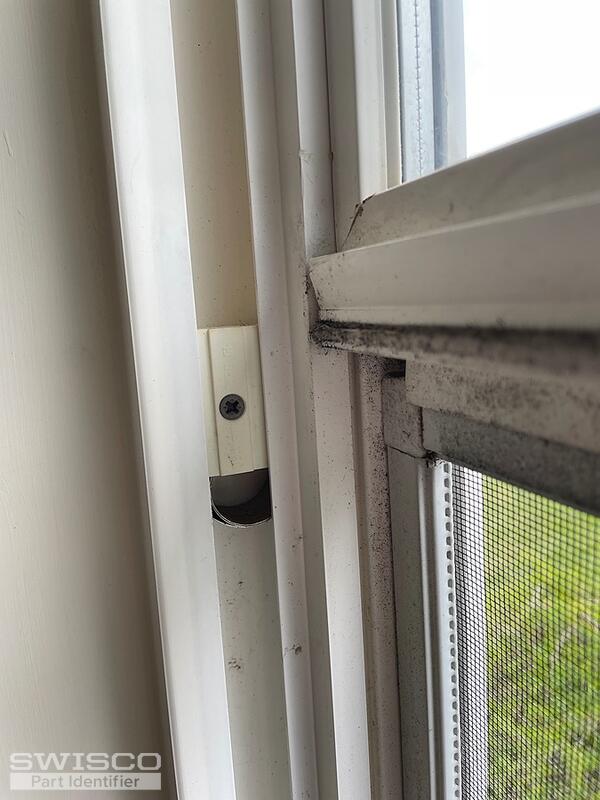

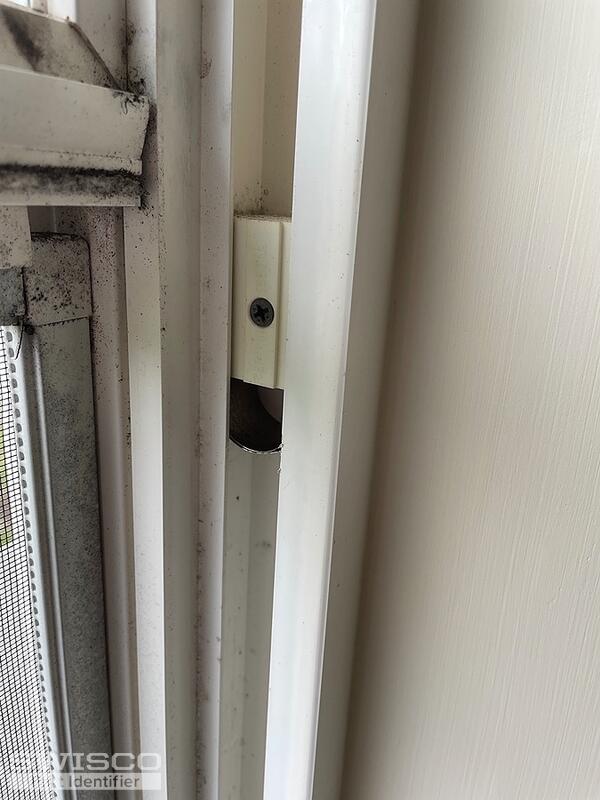

I have several coils and locks that are broken , if possible can you assist me with identifying the proper replacement parts
IMG_0259 IMG_0260 IMG_0257 IMG_0258 IMG_0239
5 user uploaded images
1 Replies
Tom
Tom from SWISCO
Apr 29, 2024 1:54 pm
SWISCO
EXPERT

Hello! It looks like you have an older Certainteed brand balance system. These exact parts aren't made anymore, but we offer modern replacements that will work in the same capacity with a little retrofitting.

To start, see our 15-192 pivot shoe. You'll note that this has alignment lugs on the front face that your original lacks. These will need to be shaved off prior to installation or else it won't fit in the track. Just note that any product altered in this way is ineligible for refund; see our return policy here for more information.

This shoe is compatible with our Series 170 bottom and Series 171 top coil springs, as well as the 15-156 cover and 15-157 bushing. You may also find the video below to be helpful.
