Parts needed for stratafold

Home Owner from Annandale, VA
Parts needed for stratafold Bm 5, 9,10,17,18 (2 of each)
I need the center top and bottom assembly for the metal bifold doors.

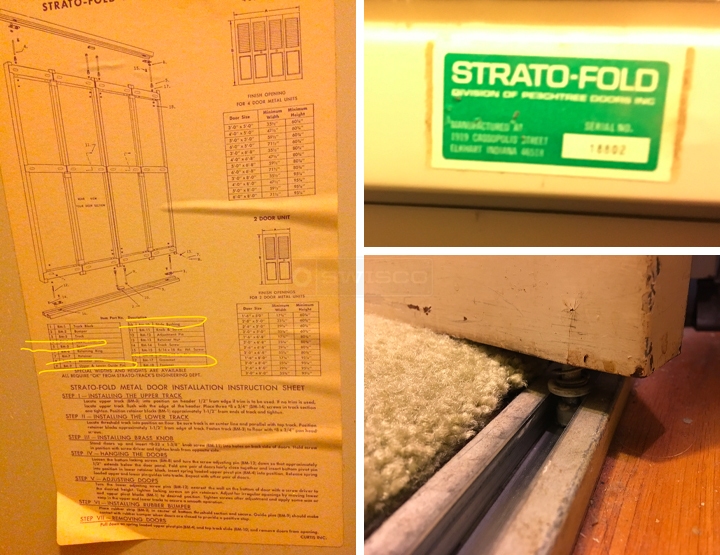

User submitted photos of bi-fold door hardware.
STRATO-FOLD Division of Peachtree Doors Inc
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert
The Strato-Fold door you show has some similarities to the old Peachtree bi-fold door. We only offer the newer style replacements for this. As long as the cut outs for the pins are 1/2" square, you should be able to use them. Take a close look at the following pins: 21-028 guide pin (for your sample guide pin), 21-029 top pivot, and 21-030 bottom pivot, and 21-210 pivot bracket. The only part that is not available anymore is the track.
