Parts needed identification

Handy Person from Florida
Apr 12, 2024 6:56 pm
Hello. Do you sell all of the hardware for this mirror glass bifold door. Looking to replace all of it except for the track. I just need the pivots for the top and bottom and the wheels.
tempImageOUDXKi tempImagej0zWcz tempImageDCaK5Q tempImageNPc1Kb tempImageFq75aR
5 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Apr 13, 2024 6:21 pm
SWISCO
EXPERT

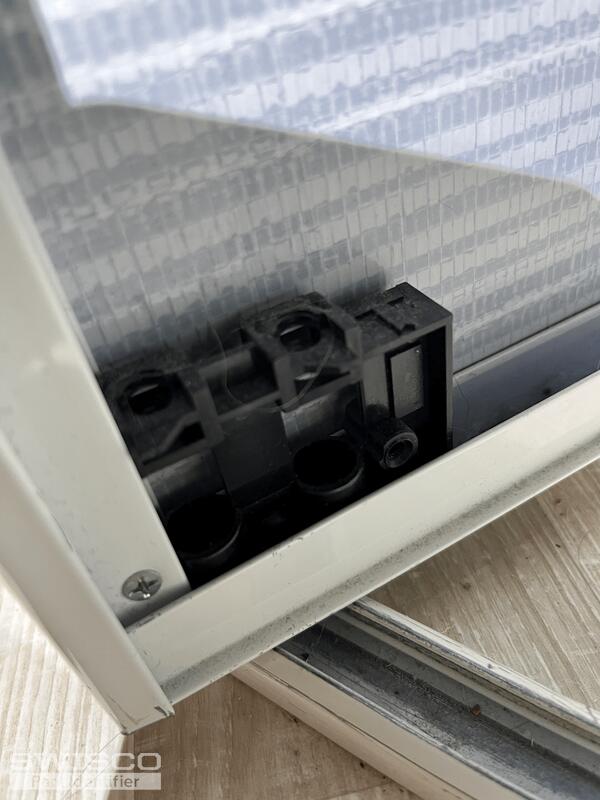

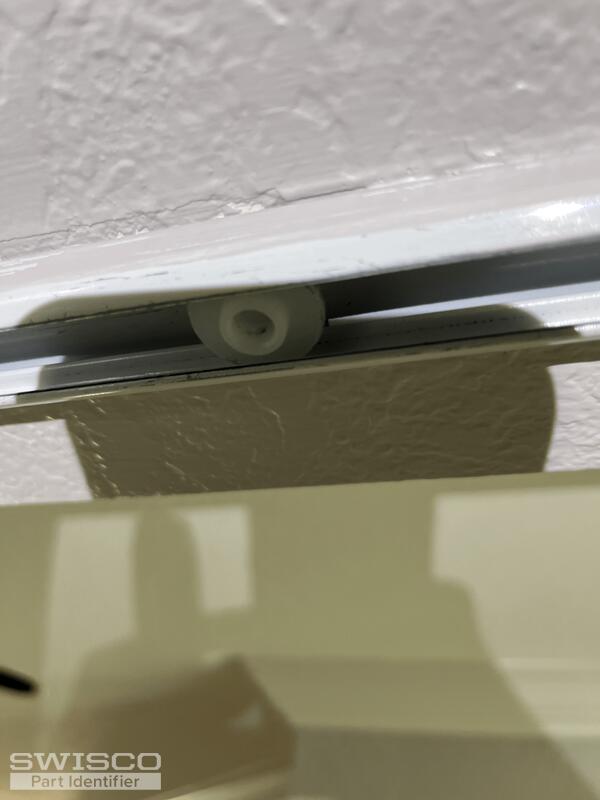

Thank you for your correspondence. The nylon roll guides in the track are our 21-174. You also have the 23-409 corner connector. The pins that fit in this connector should be the 23-116 bottom adjustment pin and the 23-115 spring-loaded pin. Take a look at this hardware and let us know if you have further questions.

+ Add a Comment
Products and resources found in this discussion
Roll Guide
Roll Guide
21-174
$1.20
Bi-Fold Door Adjustable Bottom Pivot
Bi-Fold Door Adjustable Bottom Pivot
23-116
$1.97
Spring Loaded Top Pivot
Spring Loaded Top Pivot
23-115
$1.77
Snugger
Snugger
21-286
$0.97
Corner Connector
Corner Connector
23-409
$1.45
