Quick Learner from California
May 4, 2021 9:22 am
Parts needed including rivets please
4 user uploaded images
1 Replies
Hello,

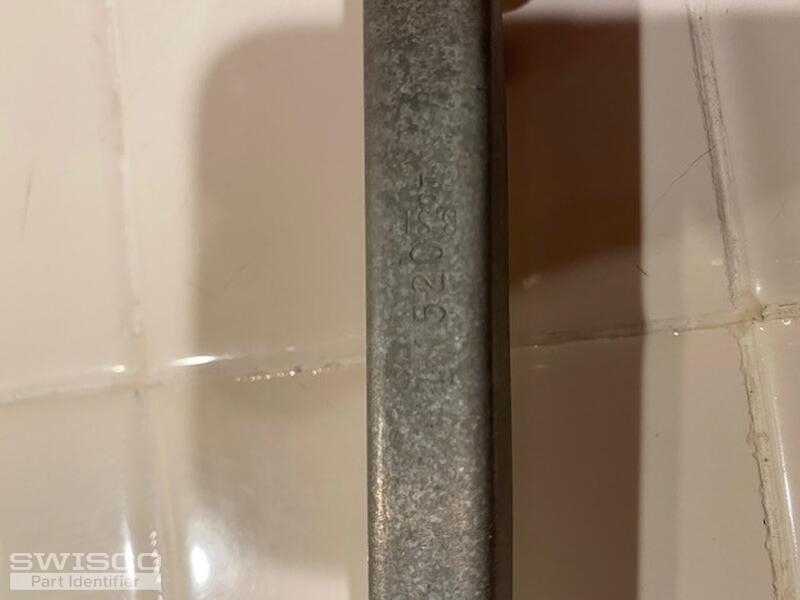

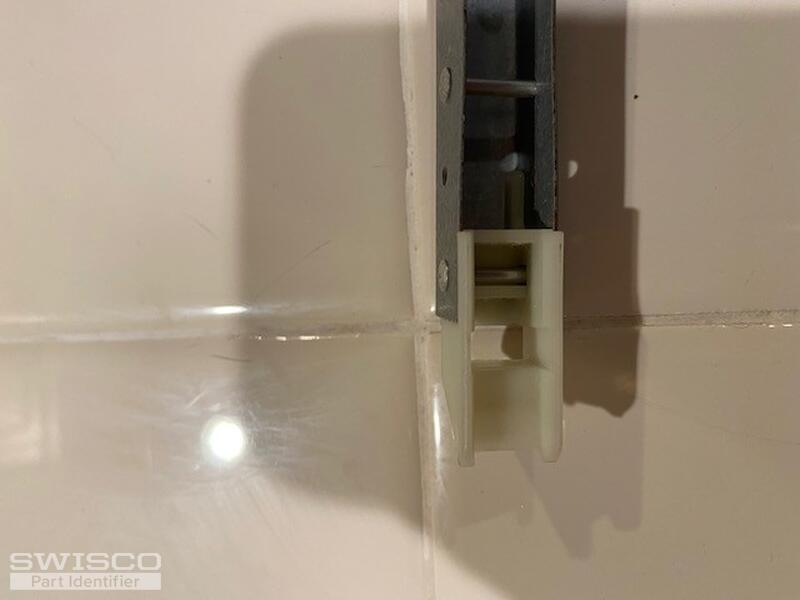

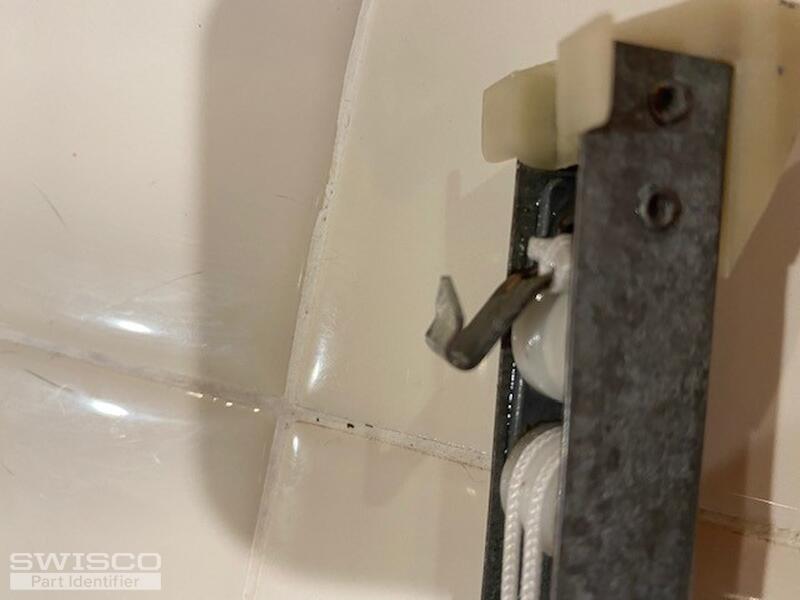

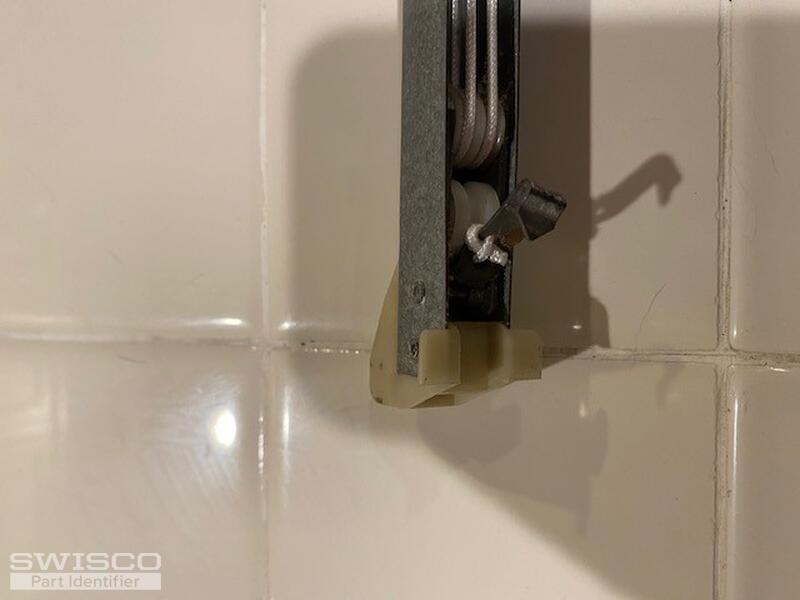

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. I can't quite make ou the stamp on your metal channel but I believe that you'll need 1520 spring strength options for your replacement balances. Double-check the stamp code on your balance to confirm.
Thank you and let us know if you have any other questions or concerns.
