243 Top Sash Guide and Rails replacement

Quick Learner from Murrieta, CA

May 30, 2020 2:05 pm

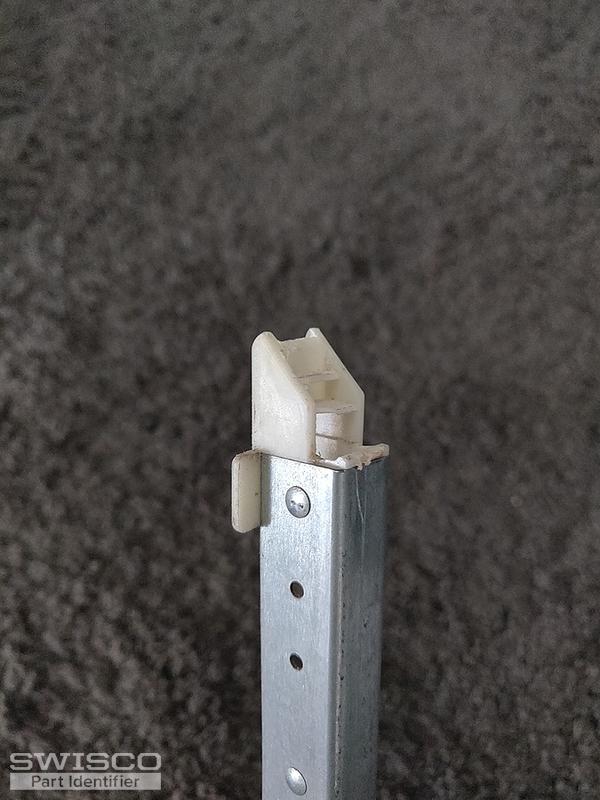

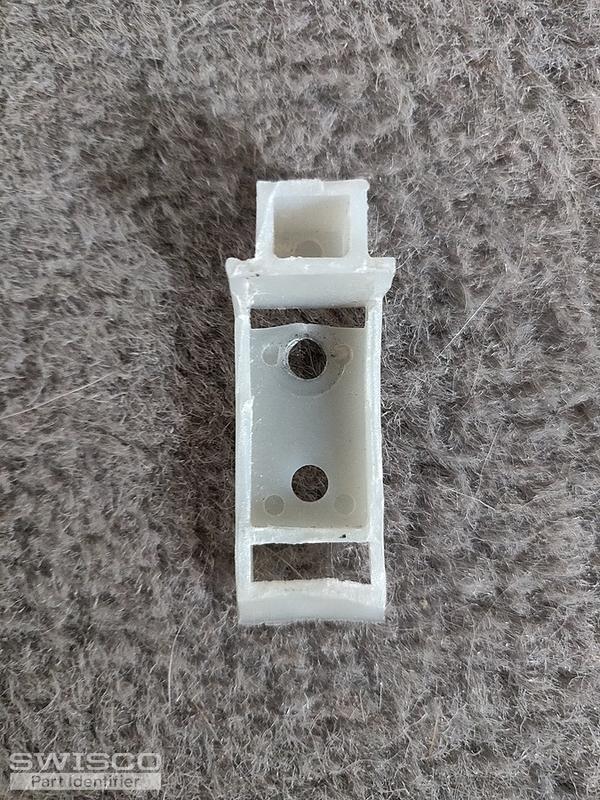

Hello. The Top Sash Guide (5/8" with the top hole 1/2" from top) is broken. I figure I will replace the rails as well. These are the photos. The only number on the slide rail is 243.

5 user uploaded images

8 Replies

Tom from SWISCO

Jun 3, 2020 11:02 am

Your balance looks like it could be a match for our S385-25. This comes with a 19-005 top and 15-004 bottom nylon fitting, so as long as those match then it should work well.

Your top sash guide isn't made anymore but you can use our 18-171 as a replacement. The catch is that you have to cut the top down to fit under the top lip of the sash. I hope that's okay.

Quick Learner from Murrieta, CA

Jun 3, 2020 6:54 pm

Thanks Tom. I will order and give it a try.

Tom from SWISCO

Jun 4, 2020 8:44 am

Thank you! Please let me know how it works out, or if you had any questions.

Quick Learner from Murrieta, CA

Jun 4, 2020 4:49 pm

Also, I used the option 2430 because I saw 243 stamped on the rail.

Tom from SWISCO

Jun 5, 2020 8:21 am

Yep, that's exactly right. A stamp of 24 3 can be replaced by our 2430 option.

Quick Learner from Murrieta, CA

Jun 12, 2020 10:45 am

Tom,

Good morning. The parts arrive. Took 15 minutes and my windows is fully operational again. Trimming the tops off the two plastic pieces was simple. Thank you again for the assist.

David

Tom from SWISCO

Jun 12, 2020 11:33 am

Awesome! I'm so glad to hear it worked without a hitch. Please let me know if you ever need anything else.
