Parts to hold Spring Tension bar in place - Alenco Ply-Gem

Handy Person from Naples, FL

Nov 6, 2020 12:07 pm

The spring tension bar on one of my windows popped out. It is on the right hand side of the window.

I have included a picture of my Alenco Ply Gem label for the window.

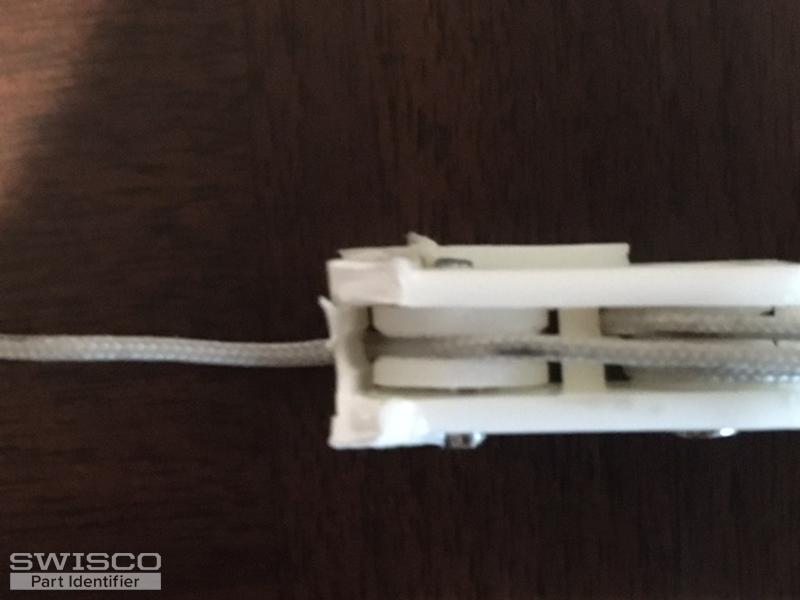

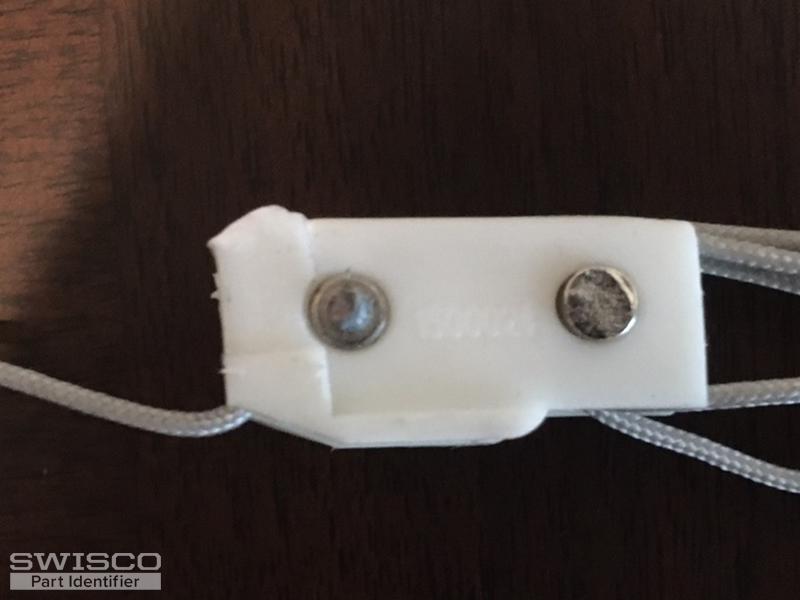

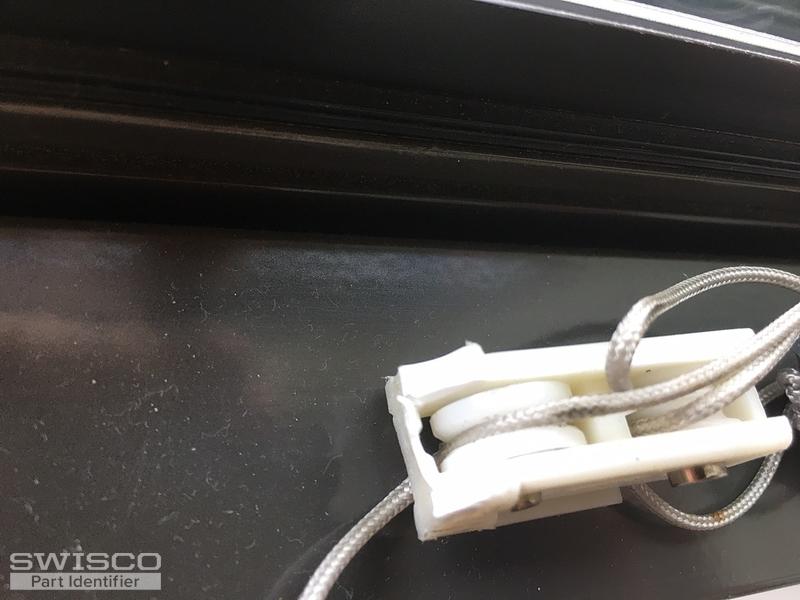

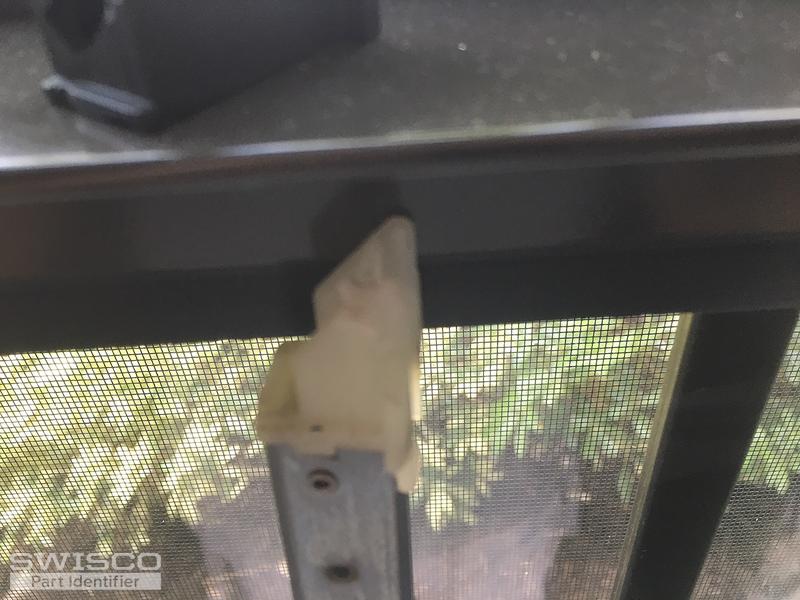

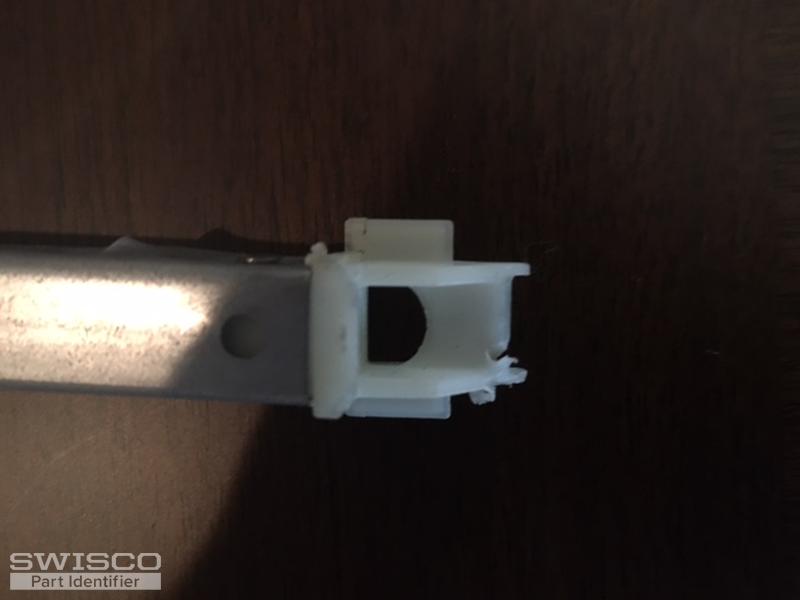

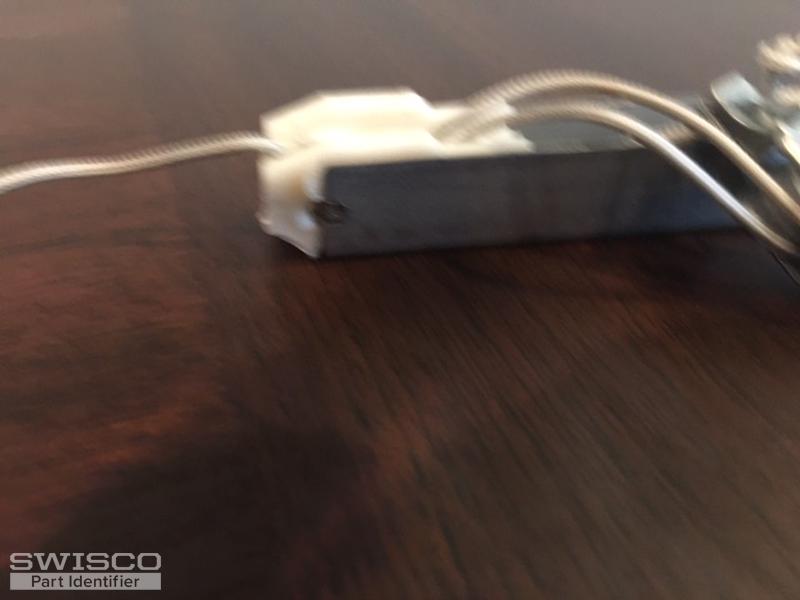

The top black plastic piece is damaged, the pin that holds that to the tension bar is bent, the white roller where the strings go through has damage, and finally white plastic part at the top of the bar that holds the spring in place seems to be damaged and the bar itself has a small bend in it where the pin must have been.

Do you have instructions on how to replace? How about schematics of Alenco Ply Gem windows.

Thank you, Tom

5 user uploaded images

10 Replies

Casey from SWISCO

Nov 10, 2020 10:18 am

Hello, thanks for writing in. It looks like you will need to replace the whole balance. Can you please show me clear images of the plastic shoes at either end of the metal channel? I would also like to see any stamps or imprints on the metal channel. This information will assist me in recommending a part. Thanks!

Handy Person from Naples, FL

Nov 10, 2020 5:21 pm

Thank you for your response. The distributor got back to me and told me my windows are PlyGem 4700 series.

The stamping on the channel shows '3375' some symbol and then 'JV'. I have included a picture of the stamping.

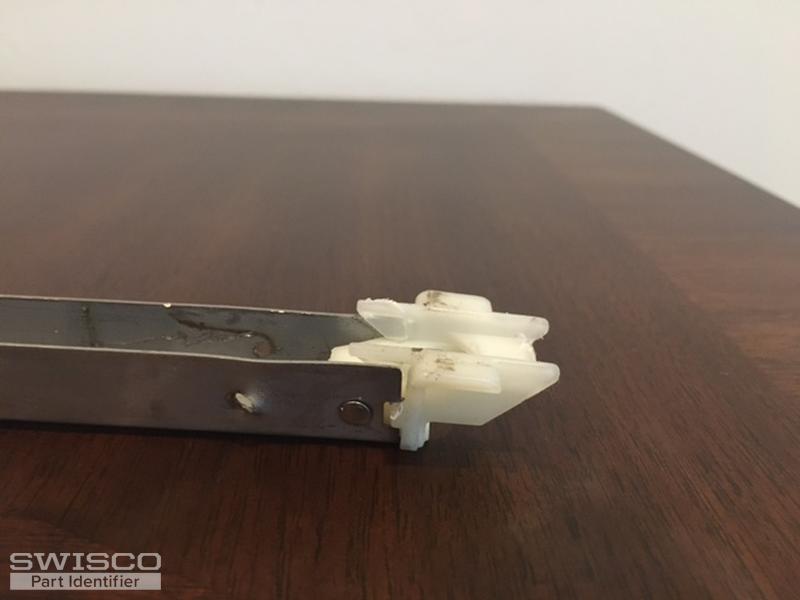

The length of the channel is 35" with the shoe pushed back in (it came out when the unit failed) and the plastic header piece. The metal channel itself looks to be 33.75" without the shoe or plastic header portion measured.

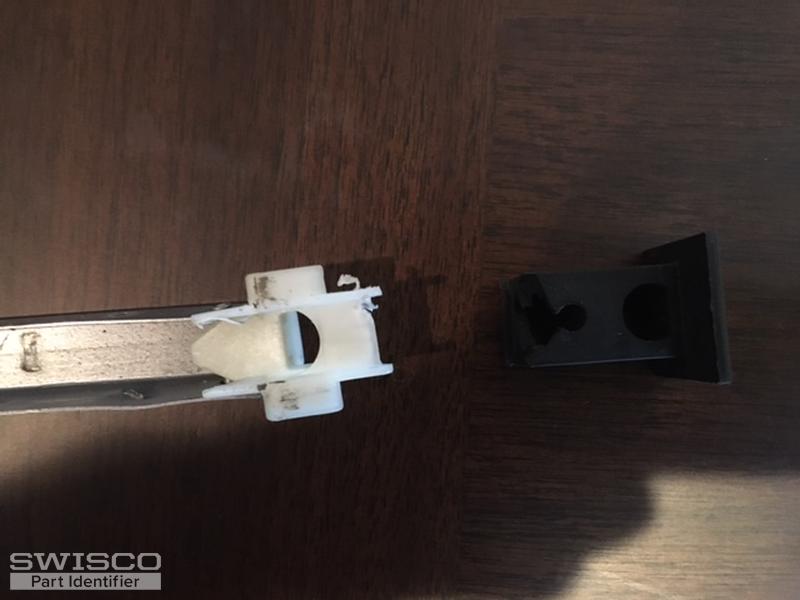

I will also need the black plastic cap that looks like it holds the channel in place.

I will also probably be replacing both sides if recommended.

Thank you!!

5 user uploaded images

Casey from SWISCO

Nov 11, 2020 9:08 am

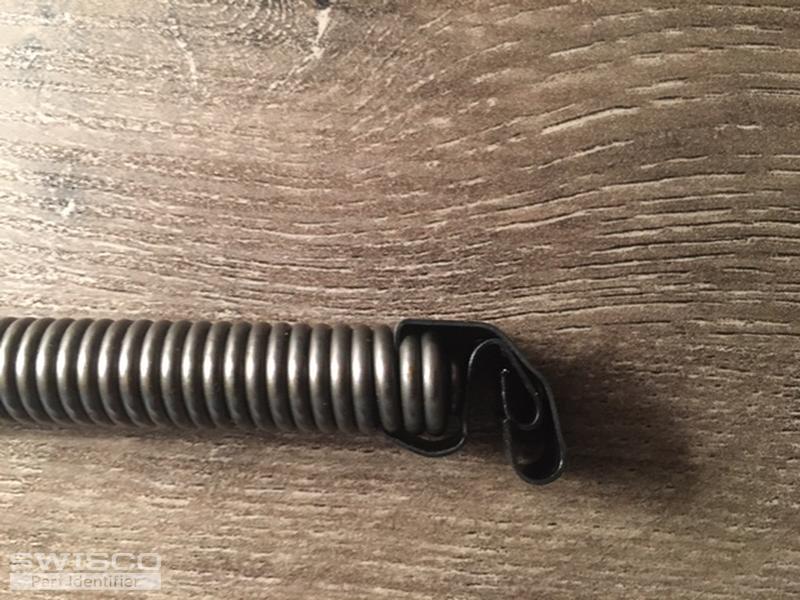

Thanks for getting back to me! It looks like we can help, but it will need to be a custom balance due to its unique design. In order to proceed with this, can you please show me the clip or hook at the end of the pulley cord? We appreciate your patience in this process.

Handy Person from Naples, FL

Nov 11, 2020 9:37 am

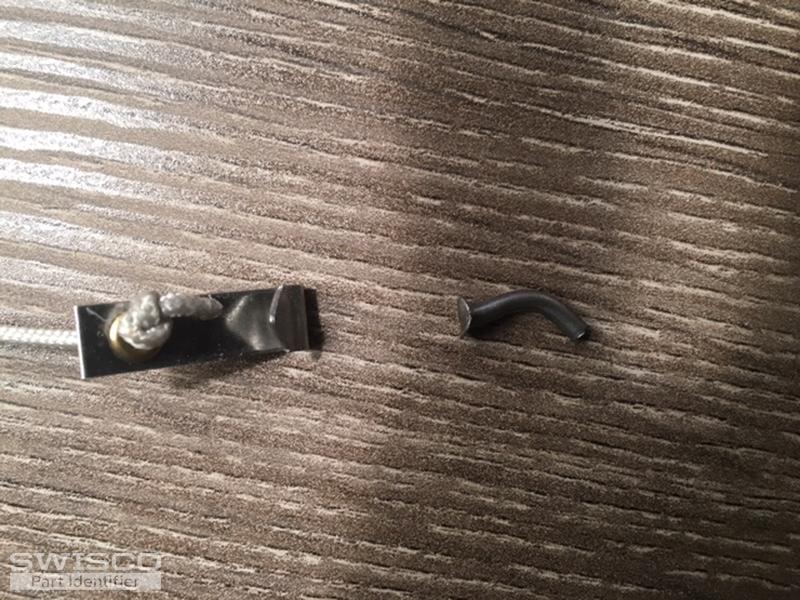

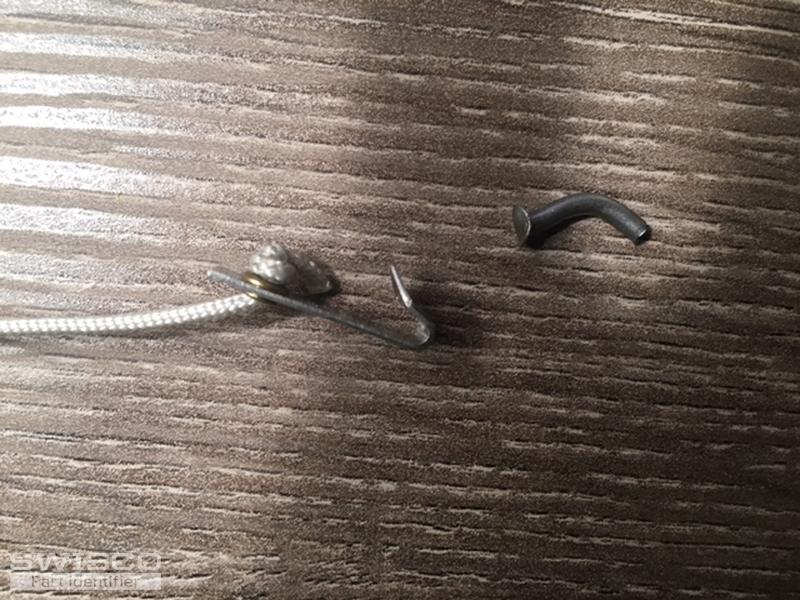

I believe I have attached pictures of what you are asking for. If not please send me an email directly and provide me a telephone number to call or I can provide you my telephone number. I should be around most of the day except 2:30-3:30 pm Eastern.

Thanks!!

4 user uploaded images

Casey from SWISCO

Nov 11, 2020 2:21 pm

Great, thanks! My colleague Bob just sent you an email with a custom link enclosed to order (2) of these balances. If you need a different amount, or have any other questions, just let us know here in the discussion thread. Thanks a lot for reaching out!

Handy Person from Naples, FL

Nov 11, 2020 3:01 pm

Could you please confirm how long it would take to receive these. The shipping info says I would not receive until January 8, 2021!!

And each unit (I need 2) is $74+.

Thanks!

Bob from SWISCO

Nov 12, 2020 1:04 pm

Hello there. Unfortunately there is indeed a 5 to 6 week lead time on these balances, since we need to get the parts in stock so we can assemble and ship them out to you. The price is due to the fact these balances are both unique both in design and in their spring strength. Apologies for any inconvenience.

Handy Person from Naples, FL

Nov 17, 2020 7:22 am

Okay - sorry to be a pain but one last question.

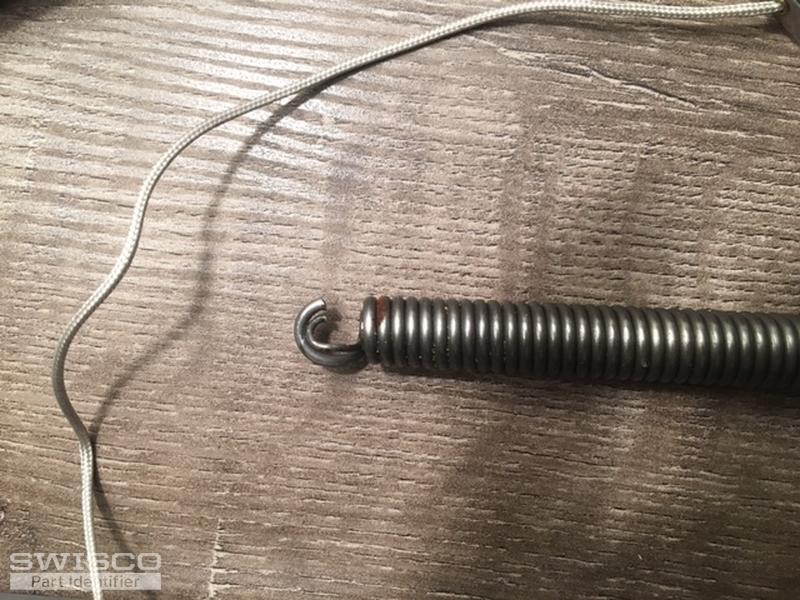

I suspect there was a failure of the balancer due to the fact that the manufacturer probably added a heavy duty spring to this window since they have high impact glass and weigh more but never upgraded the metal channel or retaining pin. As a result the pin and channel bent causing the failure. (These windows are never opened except for cleaning a couple of times a year).
So my question - if I purchase custom balancers for this window will the metal channel and retaining pin be made of strong enough metal to prevent this in the future?
Thanks!!

3 user uploaded images

Bob from SWISCO

Nov 18, 2020 9:03 am

The stamp of 3375 is meant for a pretty heavy window, so I think the spring support should be fine--if what on the original balance was correct. So long as that calibration is accurate, the fittings and hook shouldn't deteriorate quickly. If you're uncertain these were the correct balances, I'd check to see if they're the sames ones in an identical sized window in the house--let me know if they're different at all. Note that the average lifespan of a channel balance should be 10-15 years, assuming it's the right one for the window.
