Pat #5.353,548
Friend from Binghamton, NY
Sep 30, 2017 3:39 pm

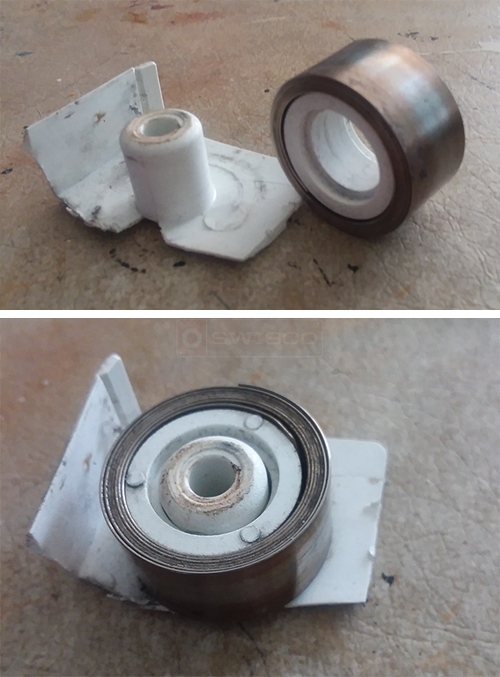

Each window has 2 of these. They are double hung windows.
6 Replies
Paul from SWISCO
Oct 5, 2017 2:19 pm
This looks like our Certainteed window balance system. The coil spring cover is either 15-156 or 15-185, and your window will use 3/4" Series 170 coil springs. You will need to find the number stamped on the old spring near the screw-hole, which tells you which one of the Series 170 coils you need.
Friend from Binghamton, NY
Oct 5, 2017 5:19 pm

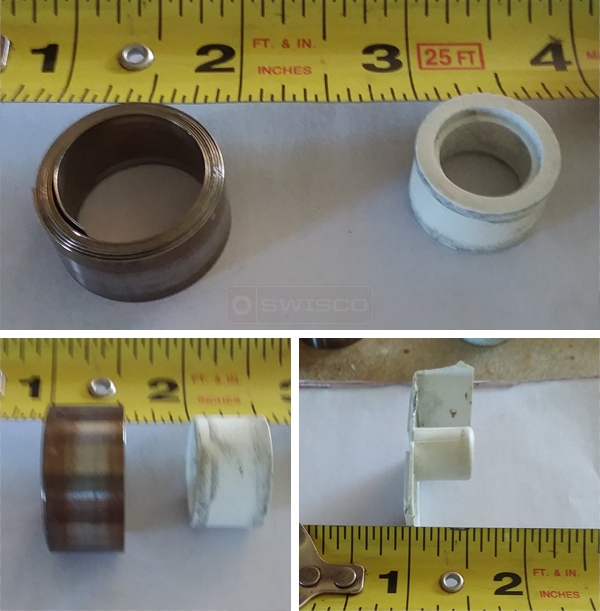

I want to verify this is the correct part. The sizes seem to be off.
Paul from SWISCO
Oct 10, 2017 9:00 am
Hey there! I'm glad you gave us dimensions to further help you. For your 1/2" coil spring, you either have a screw-on type like our Series 152 or a hook-on type like Series 150 or 160. Let us see the pivot shoe and tilt bar these attach to, that might help in identifying your Series.
Friend from 14420
Oct 11, 2017 1:57 pm
The spring itself appears to have 2 holes not one like the photos of these are showing
Paul from SWISCO
Oct 13, 2017 1:51 pm
Does it look like Series 180? It's hard to help without seeing a photo of the pivot shoe and pivot bar. Can you send a photo?
