Patio Door Handle replacement

A home owner from California says:

Hello,

Please look at picture and let me know which handle with lock should I get.

Thanks,

Onik

Thumbnail of the uploaded file named Patio Door Handle.jpg
Profile picture of Manuela
Manuela from SWISCO responded:

Thanks for contacting us, Onik. If you're looking to just replace the latch, our 82-107 should do the trick. For a new handle replacement, take a look and consider our 82-086. You just want to compare your measurements with ours to make sure they are both compatible with one another.

A home owner from California says:
Hello Manuela,

Thanks for respond. I will need new handle to replace the old one. Is there any video how to install 82-086.

Thanks,
Onik
Profile picture of Manuela
Manuela from SWISCO responded:

We have a video that shows you how to install the 82-034, which is the same handle, just offered in a different finish. Have a look and let me know if any other questions come up.

A home owner from California says:
Is 82-086 included keys? If, yes, how many keys included.

Thanks,
Profile picture of Manuela
Manuela from SWISCO responded:

Yes, two keys are included.

A home owner from California says:

Hello Manuela,

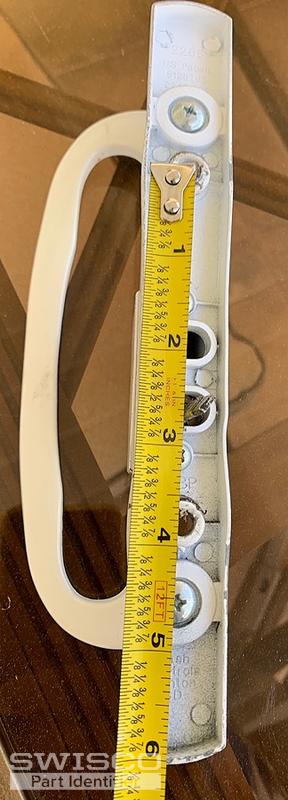

I attached measurements of my current door handle. One of measurement (almost 4 inch) which it is not matching what do you have on web site (3 15/16. Please let me know if this will work for me.

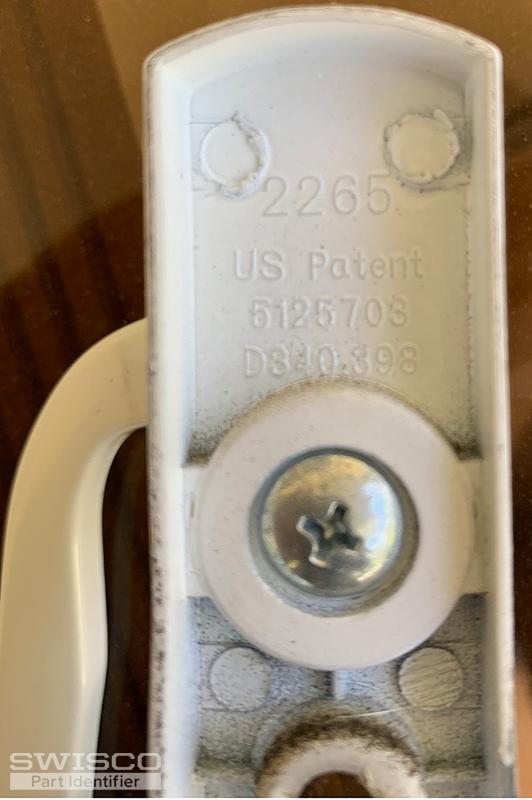

I also find from inside handle following information "2265 US Patent 5125703 D340, 398" (see attachment).

I just want to make sure I will order right handle.

Thanks,

Thumbnail of the uploaded file named IMG_5285.jpg
Thumbnail of the uploaded file named IMG_5296.jpg
Thumbnail of the uploaded file named IMG_5298.jpg
Thumbnail of the uploaded file named 2265 US Patent.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello there! Manuela is out sick today, but I can help you.

I am very confident that the 82-086 she recommended can work for you. No handle set I know of was ever manufactured with a 4" hole spacing. It is more likely that yours is 3-15/16". Make sure to measure from the center of each hole, not their edges.

The patent number also doesn't really tell us anything, but I don't think it needs to. The 82-086 looks exactly like what you have in your photos and I see no reason why it can't work. Just double check your hole spacing to be sure.

A home owner from California says:
Hello Tom,

Thanks for respond. The 82-086 packaging are included what I see on picture (https://www.swisco.com/Legacy-Handle/pd/Patio-Glass-Door-Replacement-Locking-Handles/82-086). Correct!

Thanks,
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I don't understand your question. The 82-086 comes with everything shown in its product images.

A home owner from California says:
Thank you so much for all your help. I placed my order.

I really appreciate it!

Thanks,
Onik
Profile picture of Tom
Tom from SWISCO responded:

Sure, we're very happy to help of course. Thank you for ordering with us and please let us know how it goes!
