Patio Door Handles

Quick Learner from Ohio

Jun 15, 2020 1:58 pm

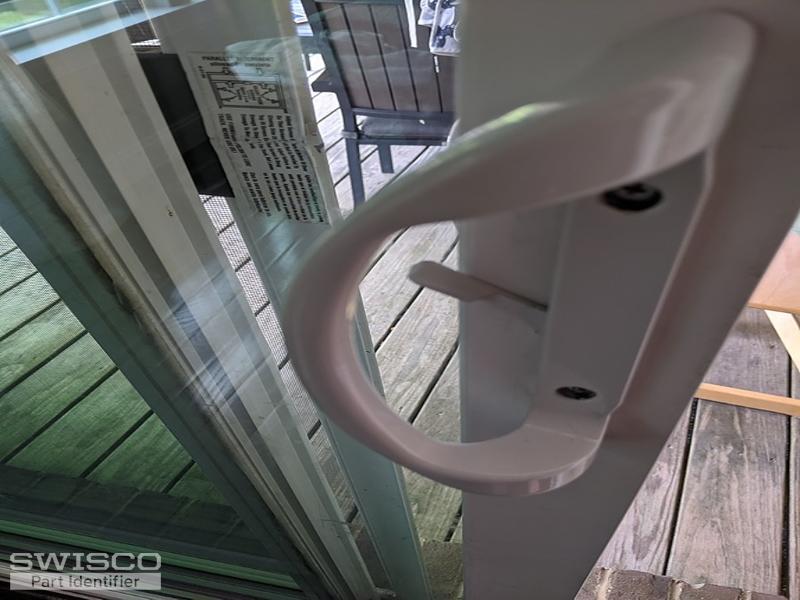

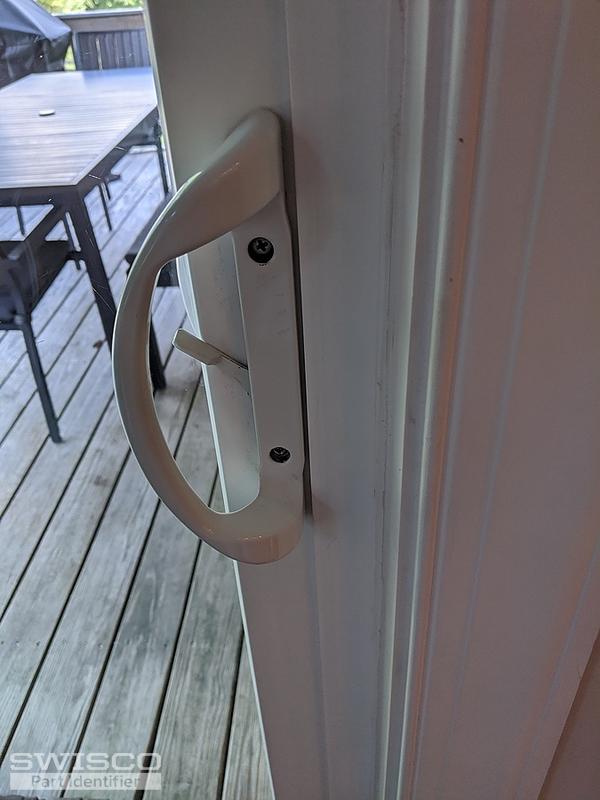

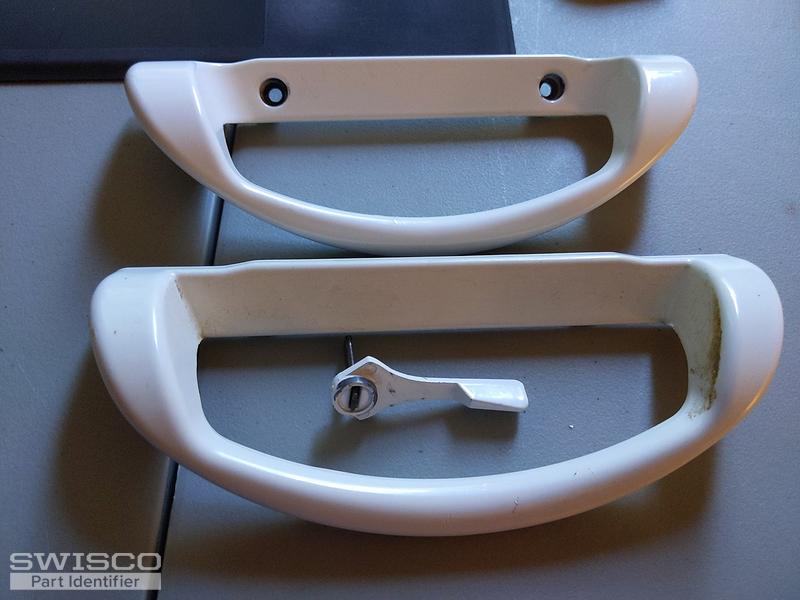

Looking for replacement sliding patio door handles. My current units are marked "2806" and "#8" on the inside. Also would like a keyed locking cylinder for the outside if possible. Thanks in advance!

5 user uploaded images

7 Replies

Tom from SWISCO

Jun 18, 2020 11:52 am

Hello! If you were interested in an exterior key lock, then I recommend the 82-086 Legacy handle set. This has a hole spacing of 3-15/16", which should match what you have now. Also note that the thumb lever (and key lock, by relation) is fixed in the bottom position. It cannot be adjusted. It looks like yours is in the bottom position too, but it's something to take note of. You should double check to make sure.

Quick Learner from Ohio

Jun 18, 2020 2:36 pm

Thank you. What about if I don't require an external keyed lock? Also would the 82-030 work? Can take take a cylinder?

Tom from SWISCO

Jun 18, 2020 3:06 pm

If you have no interest in the external key lock then the 82-030 will absolutely work for you, yes!

Quick Learner from Ohio

Jun 18, 2020 3:26 pm

Thanks, I take it that means 82-030 won't take a cylinder?

Quick Learner from Ohio

Jun 18, 2020 4:50 pm

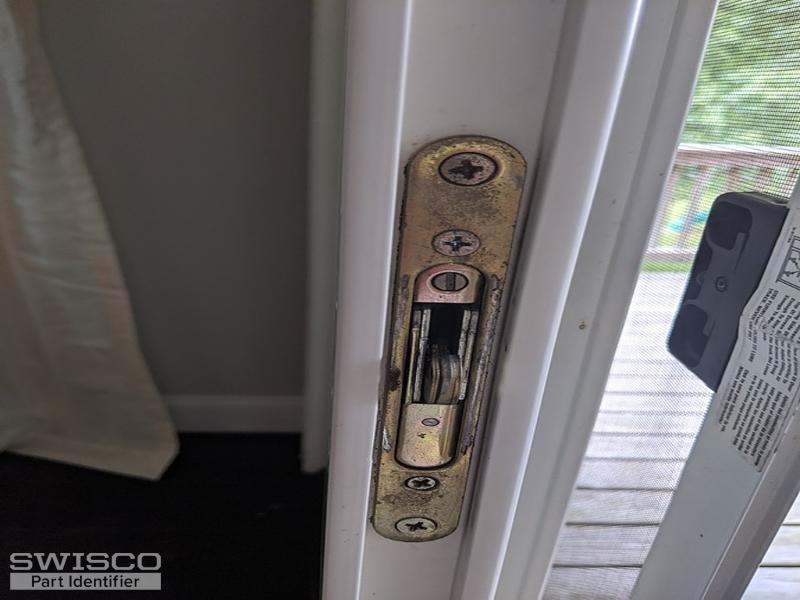

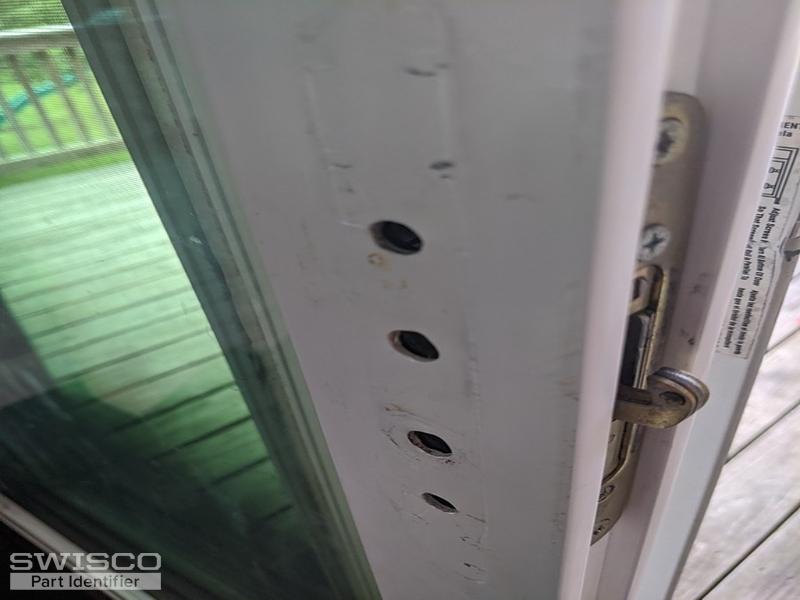

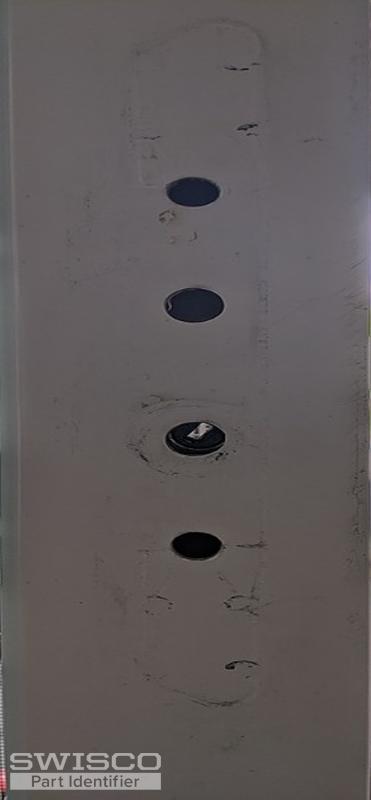

Here are images of the door prep if they help.

4 user uploaded images

Tom from SWISCO

Jun 19, 2020 9:16 am

I'm sorry for missing that part of your post. The 82-030 is a relatively new part and we actually don't have a confirmed lock cylinder for it. We added it about the same time the quarantine started so I also haven't had an opportunity to grab it and play around with it. That said, if you want an external key lock, I highly recommend the 82-086. This should be perfectly compatible with your door and is a handle set I've had a lot of success with.
