Patio Door Hardware

Question

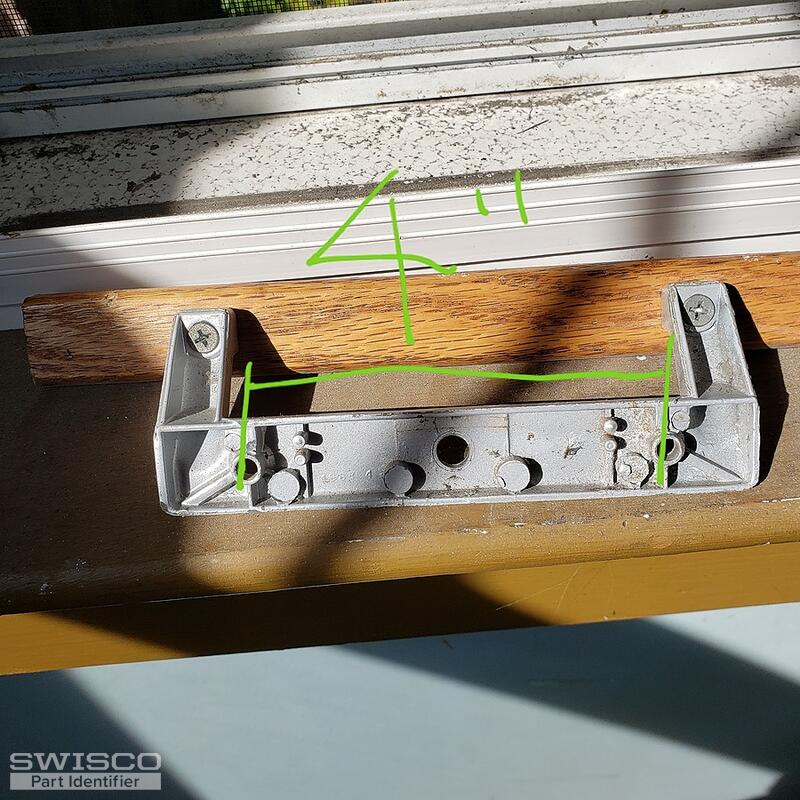

This is an existing door where the locking hardware was missing. Handle measures approx 4" on center. Mfg label on door is not accessible.

Appreciate any recommendations for retrofit hardware - thank you.

Tom · Accepted Answer

Thanks for reaching out to us. Your door is an older style that doesn't appear to use a mortise latch. With that in mind, you should consider our 82-003 as a potential replacement. This has a hook attached directly to the thumb lever that will go through that smaller square hole you see on the side of the door. Just note that this hook is centered between the screw holes. I can't be sure if yours is or not from these photos.

Look it over and see what you think!
