Patio Door Latch

Home Owner from Santa Barbara

Mar 4, 2024 2:55 pm

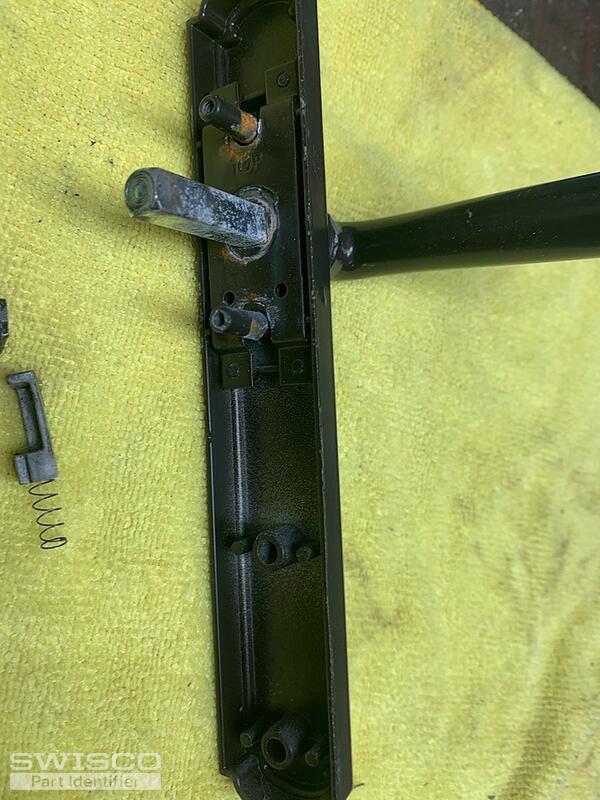

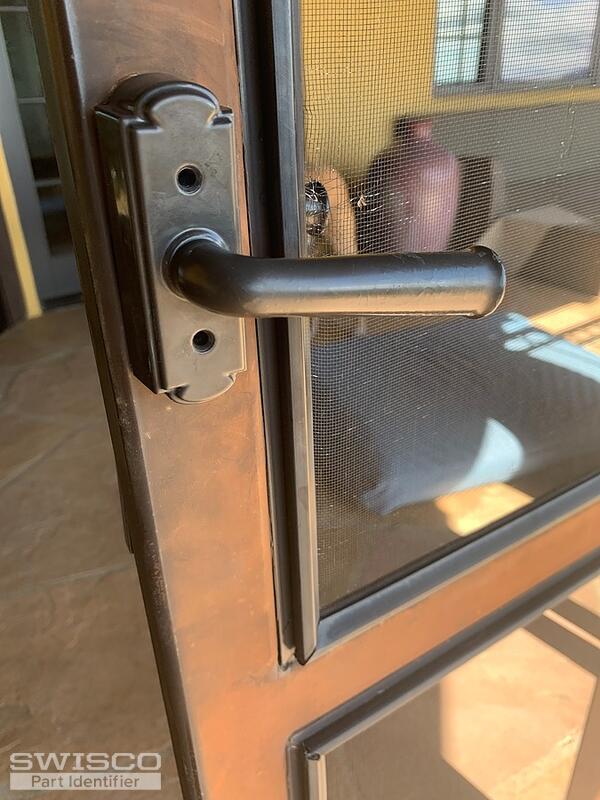

This is a screened patio door latch. Probably around 18 years old. Can't find any manufacturer markings on the door or latch. You can see the latch itself (IMG_3465) is broken. Do you have this part?

Thanks.

Bill

5 user uploaded images

4 Replies

Casey from SWISCO

Mar 5, 2024 12:32 pm

Hello,

Unfortunately, we do not carry an exact match for your handle set. We may be able to provide something that could be adapted to work as a replacement but we would need you to confirm how your assembly engages with the door frame when locked. It's tough to tell if your door uses a type of internal lock or if the latch extends from the deadbolt itself. Thank you!

Home Owner from Santa Barbara

Mar 6, 2024 6:57 pm

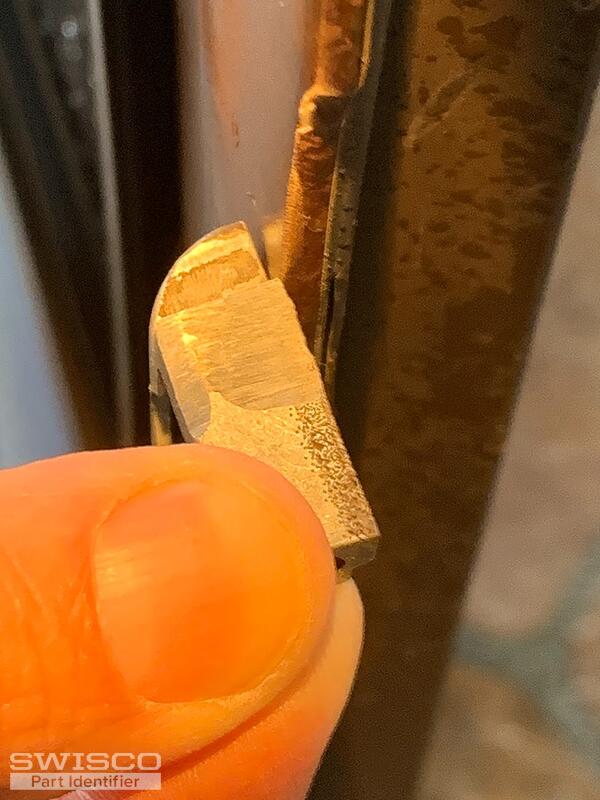

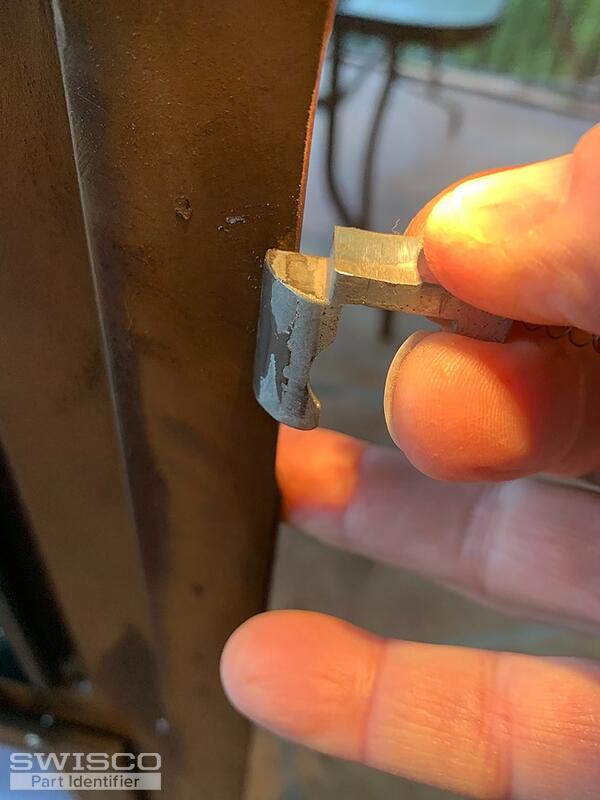

So, what you see here is the disassembled latching mechanism (broken part) as it would engage the door. The strike is actually the steel frame of the other door (about a 1/4" thick). Do you have a handle with a latching mechanism that is close to this? Thanks.

2 user uploaded images

Casey from SWISCO

Mar 7, 2024 8:16 am

Thanks for getting back to us. It looks like the part you are showing may be a deadbolt but I'm still not sure where the deadbolt is installed. Did it come from the base of the surface-mounted handle itself or from an internal lock inside the door? It would also help to see a photo of how the primary door engages with the frame of the other door that you mentioned.
